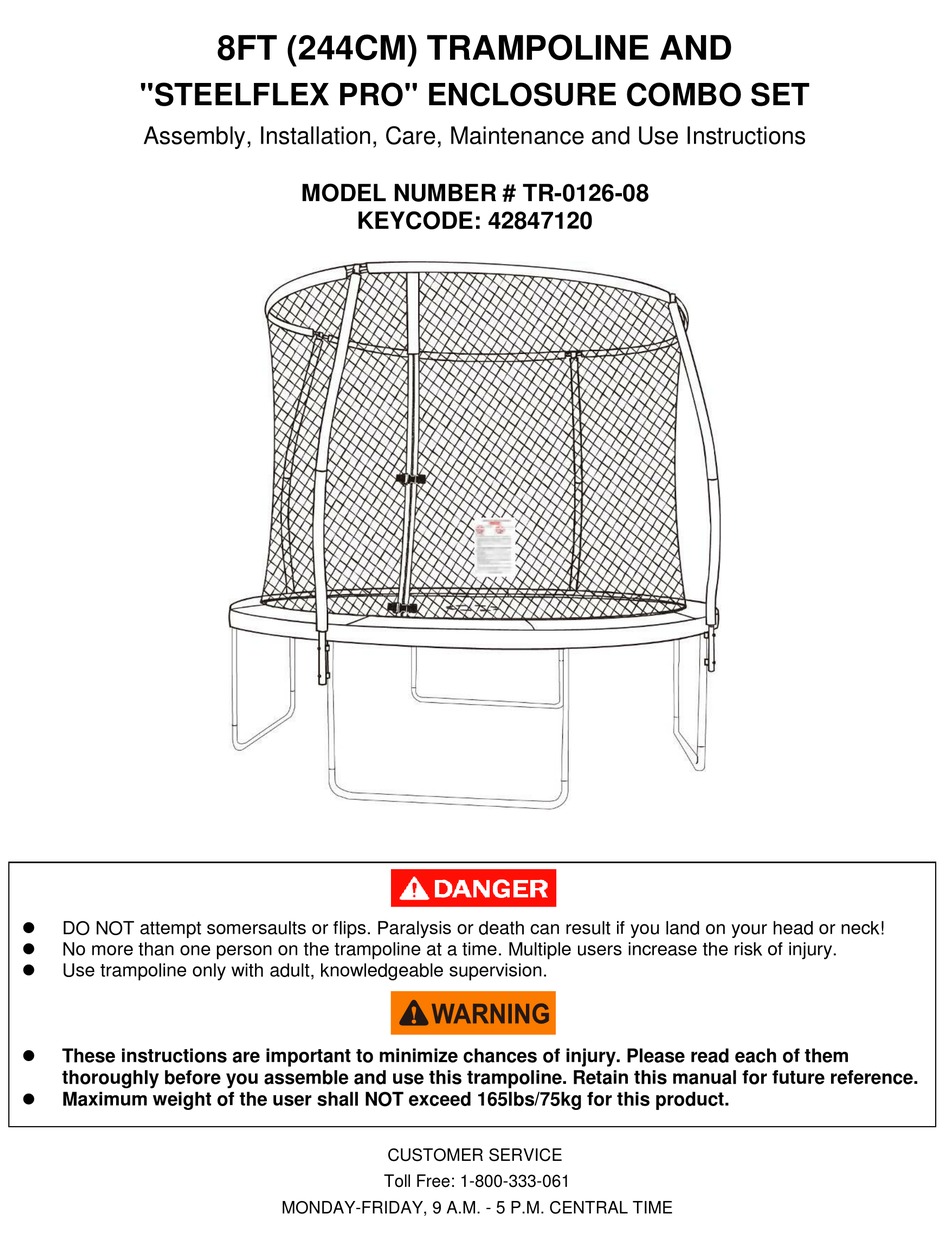

"STEELFLEX PRO" ENCLOSURE COMBO SET
Assembly, Installation, Care, Maintenance and Use Instructions
DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck!
No more than one person on the trampoline at a time. Multiple users increase the risk of injury.
Use trampoline only with adult, knowledgeable supervision.
These instructions are important to minimize chances of injury. Please read each of them
thoroughly before you assemble and use this trampoline. Retain this manual for future reference.
Maximum weight of the user shall NOT exceed 165lbs/75kg for this product.
8FT (244CM) TRAMPOLINE AND
MODEL NUMBER # TR-0126-08
KEYCODE: 42847120
CUSTOMER SERVICE
Toll Free: 1-800-333-061
MONDAY-FRIDAY, 9 A.M. - 5 P.M. CENTRAL TIME
Advertisement
Table of Contents
Related Manuals for Tasman Sports TR-0126-08
Summary of Contents for Tasman Sports TR-0126-08
- Page 1 8FT (244CM) TRAMPOLINE AND "STEELFLEX PRO" ENCLOSURE COMBO SET Assembly, Installation, Care, Maintenance and Use Instructions MODEL NUMBER # TR-0126-08 KEYCODE: 42847120 DO NOT attempt somersaults or flips. Paralysis or death can result if you land on your head or neck! ...
- Page 2 No more than ONE user at a time NO SOMERSAULTS OR FLIPS – (maximum weight - 165 lbs/75 kg). PARALYSIS OR DEATH can result if you land on your head or neck! Do not use if in a Do not allow Remove all hard Do not use when cast or have...
- Page 3 INTRODUCTION Congratulations on your trampoline purchase! This trampoline was designed and manufactured with quality materials and craftsmanship, providing fun and exercise in the enjoyment of your own backyard. It is very important that the owners and users of this trampoline have adequate knowledge of techniques and rules for proper use.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ... -
Page 5: Before You Start To Assemble
BEFORE STARTING… Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ... -
Page 6: Important Warnings
IMPORTANT WARNINGS Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ... - Page 7 IMPORTANT WARNINGS Proper Play Conditions: Always use the product in a well-lit area. Do not use without lighting during dawn, dusk or in complete darkness! The trampoline must be placed on a surface that is COMPLETELY FLAT AND LEVEL. If the ground is uneven, this could cause movement in the frame and could cause stress on the joined sections of the frame that could damage the trampoline and/or can cause serious injury.
- Page 8 IMPORTANT WARNINGS Appropriate Use Conditions: Children must always be supervised while they are playing on the trampoline and must be instructed not to use the trampoline in an inappropriate or hazardous manner. Take precautions to prevent access to the trampoline by children when there is no adult supervision.
- Page 9 IMPORTANT WARNINGS Use trampoline only with mature, knowledgeable adult supervision. Do not attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the mat. ...
-
Page 10: Important Instructions For Enclosure Netting And Mat
IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT Important Instructions for Enclosure Netting and Mat Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death. 1. Maintenance of Trampoline Enclosure Net, Mat and Pad Enclosure nets and padding are prone to wear and tear like tires on a car. - Page 11 IMPORTANT INSTRUCTIONS FOR ENCLOSURE NETTING AND MAT How to Inspect the Trampoline Net for Proper Use Always check the enclosure netting for signs of UV damage, deterioration, brittleness, cracking, and tearing every time before using the trampoline and enclosure. Step 1 - Inspect the enclosure netting before EACH use for wear or tear by pinching and pulling a section of the netting between fingers and pulling downward.
-
Page 12: Trampoline And Enclosure Parts List
TRAMPOLINE AND ENCLOSURE PARTS LIST Trampoline and Enclosure Parts List Trampoline Key Number Part Picture Description Quantity Trampoline Mat, stitched with Triangle-Rings Frame Pad Top Rail with Leg Sockets Top Rail Leg Base Vertical Leg Extension Vertical Leg Extension (two holes) Spring Trampoline Safety Instruction Placard Spring Loading Tool... -
Page 13: Hardware Parts List
HARDWARE PARTS LIST Hardware Parts List Key Number Part Picture Description Quantity Wrench Gap Spacer Bolt Large Spring Lock Washer Cap Nut Self-Locking Screw Arc Washer Hexagon Wrench Cord End Cap Bolt (12mm) Cap Nut Plastic cap... -
Page 14: Assembly And Installation Instructions
ASSEMBLY AND INSTALLATION INSTRUCTIONS Assembly and Installation Instructions Review all steps before assembly and read all precautions before using this product. Failure to do so can result in serious injury or death. During periods of non-use, this trampoline and trampoline enclosure can be easily disassembled and stored by reversing the order of installation. -
Page 15: Trampoline Frame Assembly
TRAMPOLINE MAT ASSEMBLY Trampoline Frame Assembly BEFORE YOU BEGIN: Review all steps before assembly and read all precautions before using the trampoline. At least two adults are required to assemble this trampoline. Protective gloves should be used during assembly to avoid injuries during installation. Goggles should be worn to avoid injuries to the eyes. Step 1 –... - Page 16 TRAMPOLINE MAT ASSEMBLY Step 2 – Leg Support and Top Rail with Leg Socket Assembly At this point, two people will be needed to assemble the trampoline. Connect the Vertical Leg Extensions (# 6A and # 6B) to the Leg Base (# 5) as shown below (the assembled parts will be hereinafter referred to as “Leg Support”).
- Page 17 TRAMPOLINE MAT ASSEMBLY Step 3 –Top Rail Assembly Complete the Trampoline Frame by inserting all the Top Rails (# 4) into the Top Rail with Leg Sockets (# 3) as shown below. DO NOT PLACE HANDS NEAR THE OPENING WHEN CONNECTING THE TUBES.
- Page 18 TRAMPOLINE MAT ASSEMBLY Step 4 –Secure the Leg Support to the Top Rail Secure Vertical Leg Extension (# 6A) to the frame using Self-Locking Screw (# I), Small Spring Lock Washer (# 10) and Hexagon Wrench (# K) as shown below. If the holes do not match up, rotate Vertical Leg Extension back and forth until the holes are aligned.
-
Page 19: Trampoline Mat Assembly
TRAMPOLINE MAT ASSEMBLY Trampoline Mat Assembly Step 5 – Mat Placement Place the Trampoline Mat (# 1) flat on the ground inside the assembled frame with the warning labels facing up as shown below. The warning label should be positioned where the entrance is intended so it will be clearly visible, and in front of any one of the trampoline legs. - Page 20 TRAMPOLINE MAT ASSEMBLY Step 6 – Spring Assembly When attaching the springs, do not place your hands, arms, legs or any other body part close to the connector points (i.e. joints connecting the steel tubes). The connector points can become pinch points as the trampoline springs tighten up.
- Page 21 TRAMPOLINE MAT ASSEMBLY Step 7 – Spring Assembly After you have secured the spring at point “ONE”, count to hole 29 on the opposite side of the Mat and attach a spring in the same manner as the previous step. For even distribution of spring tension and ease of assembly, the springs must always be installed on opposite sides of the mat in an alternating manner, i.e.
- Page 22 TRAMPOLINE MAT ASSEMBLY Step 8 – Spring Assembly Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 7 then 31, 19 then 43, etc.
- Page 23 TRAMPOLINE MAT ASSEMBLY Step 9 – Spring Assembly Continue to attach springs in the same manner. For even distribution of tension and ease of assembly, the springs must be placed on opposite sides of the mat in an alternating manner, i.e. 4 then 28, 10 then 34, 16 then 40, 22 then 46, etc.
- Page 24 TRAMPOLINE MAT ASSEMBLY Step 10 – Spring Assembly Continue to attach the remaining springs in the same manner as the previous step, i.e. the springs must be placed on opposite sides of the mat in an alternating manner to ensure even distribution of tension. IMPORTANT: Once all the springs are properly installed, you must go back to Step 4 and now tighten the screws on all Leg Supports.
-
Page 25: Frame Pad Assembly
FRAME PAD ASSEMBLY Frame Pad Assembly Never use the trampoline without the Frame Pad, the Frame Pad reduces the risk of getting injured by hitting the metal frame or springs. Inspect the Frame Pad before each and every use to ensure all exposed metal parts are fully covered by the Frame Pad! Step 11 ... -
Page 26: Trampoline Enclosure Assembly
TRAMPOLINE ENCLOSURE ASSEMBLY Trampoline Enclosure Assembly BEFORE YOU BEGIN: This trampoline should only be used when the enclosure netting is properly assembled. The trampoline netting must be checked thoroughly before each use to ensure there are no tears or damages. Please carefully read all the Important Safety Instructions contained in this manual and all warnings on the product before use. - Page 27 TRAMPOLINE ENCLOSURE ASSEMBLY Step 13 – Assemble the Enclosure Top Frame There are six Flat Steel (# C1) that need to be connected to form the enclosure top frame. Separate them into two groups of four and secure together with Flat Steel Sockets (# C2) using Bolt (# P), Cap Nut (# Q), Hexagon Wrench (# K) and Wrench (# D) as shown in Diagram 13-1.
- Page 28 TRAMPOLINE ENCLOSURE ASSEMBLY Three adults are recommended for this step. Please ensure the assembled Flat Steel frames are held firmly during assembly to avoid them flexing back and causing injury. With two people firmly holding the ends of the assembled Flat Steel frame push inward to form a circle. Align the holes and secure the ends with Bolt (# P) and Cap Nut (# Q).
- Page 29 TRAMPOLINE ENCLOSURE ASSEMBLY Step 14 – Attach the Enclosure Netting to the Enclosure Top Frame Attach Plastic Cap (# R) to the top of Upper Frame Tube with Foam (# A). Secure with Self-Locking Screw (# I) and tighten using Hexagon Wrench (# K). ...
- Page 30 TRAMPOLINE ENCLOSURE ASSEMBLY Step 15 – Connect the Enclosure Upper Frame to the Lower Frame Connect all four Upper Frame Tube with Foam (# A) to Lower Frame Tube with Foam (# B). Secure with Self-Locking Screw (# I) using Hexagon Wrench (# K) as shown below. Helpful Tips: One person should stand inside the trampoline to hold the netting in place while another person installs all the frame tubes from the outside.
- Page 31 TRAMPOLINE ENCLOSURE ASSEMBLY Step 16 – Tie the Enclosure to the Mat Secure the trampoline netting to the trampoline frame using the Cords (# L). Lift up the frame pad and tie one end of the cord to any one of the triangle-rings on the trampoline mat as shown below. ...
- Page 32 TRAMPOLINE ENCLOSURE ASSEMBLY Step 17– Secure the Frame Pad Wrap and tie the inner elastic straps on the frame pad around the triangle-rings and the outer straps around the trampoline frame as shown below. Diagram 17-1 DO NOT JUMP OR STEP ONTO THE FRAME PAD BECAUSE IT IS VERY DANGEROUS TO FALL DOWN OR ENTRAPMENT HAZARD OF FOOT.
- Page 33 TRAMPOLINE ENCLOSURE ASSEMBLY For the elastic straps near the leg sockets, wrap them BEHIND the leg sockets and then tie a one-sided bow in front as shown below. Diagram 17-2 DO NOT JUMP OR STEP ONTO THE FRAME PAD TO AVOID DANGER OF FALLING OR FOOT ENTRAPMENT.
- Page 34 TRAMPOLINE ENCLOSURE ASSEMBLY Step 18 – Close the Enclosure and Attach the Safety Instruction Placard Close the zipper and buckles located at the entrance of the Enclosure Netting (# M). Attach Trampoline Safety Instruction Placard (# 8) to the trampoline frame as shown. The zipper and strap should be closed during use to avoid users falling out of the trampoline, as well as during periods of non-use to restrict access by unauthorized users.
-
Page 35: Disassembly Of The Trampoline And Enclosure
DISASSEMBLY OF THE TRAMPOLINE AND ENCLOSURE IMPORTANT Once you have finished the assembly of the trampoline, go back over all of the nuts and bolts and properly tighten all of them before using. Read this entire manual and make sure all jumpers completely understand all of the safety rules printed in the manual and on the various warning signs. -
Page 36: Care And Maintenance
CARE AND MAINTENANCE Care and Maintenance Failure to follow these instructions to ensure proper operational condition of your trampoline may lead to serious injury or death. The hooks, trampoline legs and enclosure netting must be inspected prior to every use. The legs should be locked securely into place, all the hooks attached to the frame and there should be no tears in the enclosure netting. -
Page 37: Proper Use Instructions
PROPER USE INSTRUCTIONS Proper Use Instructions Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. Responsibilities of the user The key here is to stay in control of your jumps. DO NOT move onto more complicated, more difficult maneuvers until you have mastered the basic, fundamental bounce. - Page 38 PROPER USE INSTRUCTIONS Read and understand the use instructions in this manual prior to using this product. Failure to do so can result in serious injury or death. Read all instructions before using the trampoline. Warnings and instructions for the care, maintenance and use of this trampoline are included to promote proper and enjoyable use of this equipment.
-
Page 39: Learning The Fundamental Trampoline Skills
USE INSTRUCTIONS Learning the fundamental trampoline skills The following lessons are suggested for you to learn basic steps and bounces. Before using the trampoline, you should read and understand all warnings. A complete discussion and demonstration of body mechanics and trampoline guidelines should occur between the supervisor and student as well. - Page 40 USE INSTRUCTIONS BASIC TRAMPOLINE BOUNCES THE BASIC BOUNCE 1. Start from the standing position, with your feet having shoulder width apart and with head up and eyes on mat 2. Swing arms forward and up in a circular motion 3. Bring feet together while in mid-air and point toes downwards.
-
Page 41: Product Warranty
PRODUCT WARRANTY Product Warranty This product is warranted to be free from defects in material and workmanship under normal use and service conditions for 1 year after the date of purchase. The frame/mat on trampolines is warranted for two (2) years after the date of purchase. All warranty coverage extends only to the original purchaser of the product and is not assignable or transferable. - Page 42 ACCEPTABLE QUALITY AND THE FAILURE DOES NOT AMOUNT TO A MAJOR FAILURE. FOR NEW ZEALAND CUSTOMERS, THIS WARRANTY IS IN ADDITION TO STATUTORY RIGHTS OBSERVED UNDER NEW ZEALAND LEGISLATION. TASMAN SPORTS SHEEHAN ROAD, WEST HEIDELBERG, VICTORIA SERVICE PHONE NUMBER 1-800-333-061 MODEL NUMBER # TR-0126-08 KEYCODE: 42847120 SP-22-TR-0126-08-KM AU-19001...
