The remote control can perform the following functions:
• Turn the system ON and OFF
• Select operating mode
• Adjust room air temperature and fan speed
• Set time periods for automatic system operation
BATTERY INSTALLATION — Two AAA 1.5V alkaline
batteries (included) are required for operation of the remote
control. See Fig. 2 for battery location.
To install batteries:
1. Remove battery compartment cover by sliding off of
remote.
2. Insert batteries being sure to follow polarity markings in-
side battery compartment.
3. Replace battery compartment cover.
NOTE: Replace batteries whenever "Low battery" indicator
appears on remote control display panel.
DISPLAY SCREEN — There are five operating mode indica-
tors that appear on the remote control display screen. See Fig. 3.

OPERATION

Remote Control Operation —
has 3 buttons (see Fig. 4) used for operating and controlling the
system:
• MODE button — changes operating mode
• UP/DOWN button — selects desired operating mode
• ON/OFF button — turns the system on or off and trans-
mits programing selections to unit.

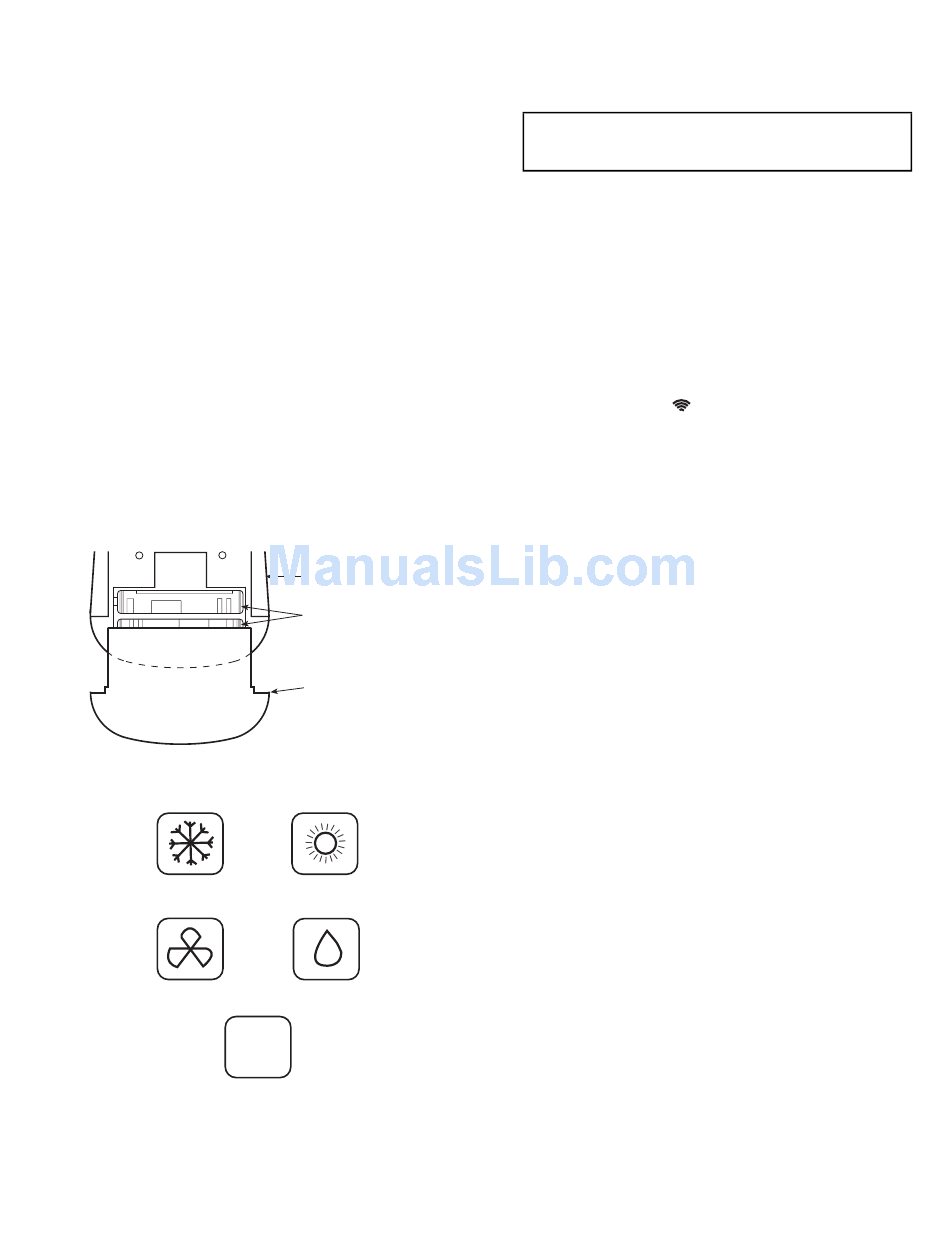

Fig. 2 — Location of Batteries on Remote Control
COOLING
FAN ONLY
A
AUTO
Fig. 3 — Operating Mode Indicators on
Remote Control
The remote control
BACK OF
REMOTE CONTROL
2 AAA 1.5V BATTERIES
BATTERY COMPARTMENT
COVER
HEATING
DEHUMIDIFICATION
NOTE: When transmitting a command from the controller to
the unit, be sure to point the controller toward the right side of
the unit. See Fig. 4. The unit will confirm receipt of a com-
mand by sounding 2 audible beeps.
IMPORTANT: If no changes are made within 10 sec-
onds, the remote control will return to its previous
setting.
FAN SPEED — To select the Fan mode and change the Fan
Speed, follow the steps below:
1. Press MODE button to select the Fan mode.
2. Press UP/DOWN button to select desired fan speed or
to Auto.
3. Press ON/OFF button to send changes to unit from re-
mote control.
NOTE: If unit is operating in DEHUMIDIFICATION mode
the fan will only operate in Low speed and cannot be changed.
TEMPERATURE SETTINGS — The temperature settings
can be easily changed by pointing the controller toward the unit
and pressing the UP/DOWN button until desired temperature
appears on screen. The
OFF button is pressed.
Another way of changing the temperature is as follows:
1. Select the temperature display by pressing the MODE
button. The degree symbol will flash next to the digits on
the screen.
2. Press UP/DOWN button to select the desired tempera-
ture. The available temperature range is from 54 F to
90 F.
3. Press ON/OFF button to send changes to unit from re-
mote control.
AIRFLOW DIRECTION — Perform the following steps to
change the direction of airflow from the unit:
1. Press MODE button to select the Sweep function.
2. Press the top of the UP/DOWN button to move the air
deflector on the unit in an up and down motion. The air-
flow symbol displays motion.
3. Press the bottom of the UP/DOWN button. The airflow
deflector stops at a given angle. The airflow symbol dis-
play remains in a fixed position.
4. Press ON/OFF button to send changes to unit from re-
mote control.
NOTE: If placing the air deflector in a fixed position is chosen,
the deflector stops at the angle in which it was located when
the ON/OFF button was pressed.
SETTING CLOCK
1. Slide down front cover of controller below ON/OFF but-
ton. See Fig. 4.
2. Press CLOCK button using the tip of a pen or paper clip.
See Fig. 5.
3. Press UP/DOWN button to set minutes.
4. Press MODE button. The hour digits will flash.
5. Press to UP/DOWN button to set the hour.
6. To confirm current clock settings, press CLOCK button
once again using the tip of a pen or paper clip. The remote
control will automatically go back to previous display
and the clock is displayed.
