Page 1

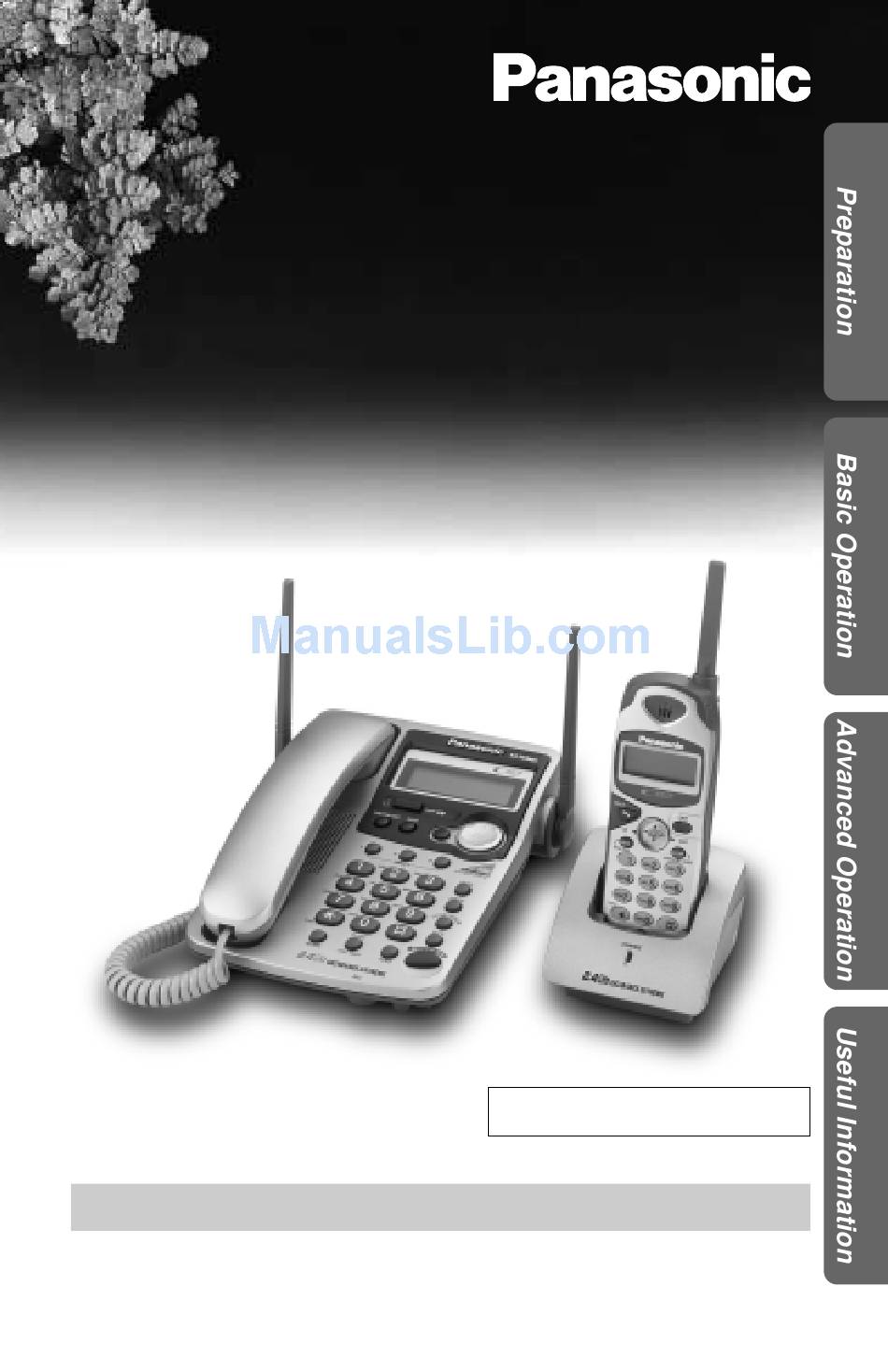

Operating Instructions KX-TG2564S Model No. Pulse-or-tone dialing capability Caller ID Compatible PLEASE READ BEFORE USE AND SAVE. Charge the battery for about 15 hours before initial use. Panasonic World Wide Web address: http://www.panasonic.com for customers in the USA or Puerto Rico...
Please read IMPORTANT SAFETY INSTRUCTIONS on page 71 before use. Read and understand all instructions. Thank you for purchasing your new Panasonic cordless telephone. Caller ID and Call Waiting Service, where available, are telephone company services. After subscribing to Caller ID, this phone will display a caller’s name and phone number.
For Best Performance Battery Charge A rechargeable Ni-Cd battery powers the cordless handset. Charge the battery for about 15 hours before initial use (p. 11). Base Unit Location/Noise Calls are transmitted between the base unit and the cordless handset using wireless radio waves. For maximum distance and noise-free operation, the recommended base unit location is: Away from electrical appliances such as a TV,...
Page 5
Voice Mail Service ........52 Storing a Voice Mail Access Number Setting the Voice Mail (VM) Tone Detection Listening to Voice Mail Messages Special Features.
Location of Controls Base unit Antenna (p. 3, 10) DIRECT Buttons (p. 48) (REDIAL) (TONE) (FLASH/CALL\WAIT) (VM) (Voice mail) Button and Indicator (p. 52, 54, 55) Button (p. 26) Button (p. 56) Button (p. 57, 58) (HOLD) Button (p. 27) Antenna (p.
Page 7
(CLEAR) Button (p. 37, 46) (FUNCTION/EDIT) Button (p. 18, 33) MIC (Microphone) (p. 26, 28, 49) (DIGITAL\SP-PHONE) Button and Indicator (p. 26, 28) How to use the Navigator key This key has four active areas that are indicated by arrows. ≥Pressing the up and down arrows allows you to enter the Caller List and scroll through the function menu, the Caller List and the directory list.
“ Location of Controls Cordless handset Headset Jack (p. 62) (TALK) Button (p. 23, 28) (MUTE/FUNCTION) Button (p. 17, 56) (TONE) Button (p. 56) Charge Contact (p. 12) (FLASH/CALL\WAIT/VOICE\MAIL) Button (p. 55, 57, 58) How to use the Navigator key This key has four active areas that are indicated by arrows.
Charger unit CHARGE Indicator (p. 11) Displays Cordless handset 0 new call 2 The voice mail icon displays when the voice mail message(s) is/are recorded (p. 52). 3 The directory icon displays when storing or viewing the directory items (p. 39, 42). 4 The battery icon indicates the battery strength.
Telephone Jack (RJ11C) Telephone Line Cord ≥USE ONLY WITH Panasonic AC ADAPTOR PQLV10 (Order No. PQLV10Z). ≥The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) ≥Use only a Panasonic Handset for the KX-TG2564S.
Power Outlet (AC 120 V, 60 Hz) AC Adaptor ≥USE ONLY WITH Panasonic AC ADAPTOR KX-TCA1 (Order No. KX-TCA1-G). ≥The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) Battery Charge Place the cordless handset on the charger and charge for about 15 hours before initial use.
≥If you DO NOT recharge the cordless handset battery for more than 15 minutes, the display will continually indicate “Recharge battery” and/or “ continue to flash when the cordless handset is lifted off the charger. Battery information After your Panasonic battery is fully charged (p. 11): Operation While in use (TALK)
Date and Time Make sure the base unit and cordless handset are not being used. (FUNCTION/EDIT) Press (fl) Press (Yes key) at “Date and time”. Enter the current date (year, month, and day) using 4-digit numbers. (Ex. To set Apr. 15, 2002, enter “2002” and “0415”.) (›) Press...
Page 14
“ Settings If a power failure occurs, the time/date flashes on the base unit display. Adjust the date/time. For Caller ID service users ≥The Caller ID information will reset the clock after the first ring if the adjusted time and/or date is incorrect. ≥If the time has not previously been set, the Caller ID information will not adjust the clock.
Dialing Mode (Cordless\Handset) You can program the dialing mode using the cordless handset near the base unit. If you have touch tone service, set to “Tone”. If rotary or pulse service is used, set to “Pulse”. Your phone comes from the factory set to “Tone”.
“ Settings Line Mode (Cordless\Handset) You can program the line mode using the cordless handset near the base unit. If the line is connected to a low voltage system such as a PBX, set to “B”. Otherwise the Call Waiting Caller ID Feature may not be used (p.
Programmable Functions (Cordless\Handset) You can program the following function items using the cordless handset near the base unit. The display shows the programming instructions. See the corresponding pages for function details. Make sure the base unit and cordless handset are not being used. (MUTE/FUNCTION) Press <Function menu>*...
“ Programmable Functions (Base\Unit) You can program the following function items using the base unit. The display shows the programming instructions. See the corresponding pages for function details. Make sure the base unit and cordless handset are not being used. (FUNCTION/EDIT) Press <Function menu>*...
Auto Talk Feature The Auto Talk feature allows you to answer a call by lifting the cordless handset off the charger without pressing feature, turn the feature ON by programming. Your phone comes from the factory set to OFF. Make sure the base unit and cordless handset are not being used. (MUTE/FUNCTION) Press Scroll to “Program”...
“ Programmable Functions Ringer Volume You can program the cordless handset and base unit ringer volumes to HIGH, LOW or OFF. If set to OFF, the cordless handset and base unit will not ring. Your phone comes from the factory set to HIGH. Make sure the base unit and cordless handset are not being used.
LCD Contrast You can program the cordless handset and base unit LCD contrast (5 levels). To make the displays clearer, set to high level. Your phone comes from the factory set to level 3. Make sure the base unit and cordless handset are not being used. (Cordless\Handset) (MUTE/FUNCTION) Press...
Page 22
“ Programmable Functions (Base\Unit) (FUNCTION/EDIT) Press Scroll to “LCD contrast” by pressing (‹) (fl) Press (Yes key). ≥The current setting is displayed. Select the desired contrast by pressing (‹) ≥Each time you press (›) or (‹), the LCD contrast will change. (fl) Press (Save key).
Making Calls (Cordless\Handset) To have a hands-free conversation, connect an optional headset to the handset (p. 62). Press Dial a phone number. ≥The dialed number is displayed. ≥After a few seconds, the display will show the length of the call and the battery strength. To hang up, press cordless handset on the charger.
Page 24
“ Making Calls To dial after confirming the entered number Dial a phone number. ≥If you misdial, press (CLEAR/INTERCOM/HOLD) and dial again. Press ≥After a few seconds, the display will show the length of the call and the battery strength. To hang up, press cordless handset on the charger.
Page 25
To put a call on hold (CLEAR/INTERCOM/HOLD). Press ≥“Line on HOLD.” is displayed on the base unit. ≥The DIGITAL SP-PHONE indicator flashes. ≥If you put a call on hold for more than 6 minutes, an alarm tone will sound. The call will be disconnected after a total of 10 minutes.
To hang up, place the handset on the cradle. Using the speakerphone (DIGITAL–SP-PHONE) Press ≥The indicator lights. Dial a telephone number. ≥The dialed number is displayed. ≥After a few seconds, the display will show the length of the call. When the other party answers, talk into the MIC (microphone).
Page 27
Hands-free Digital Duplex Speakerphone ≥For best speaker performance, use in a quiet room and talk alternately with the caller. ≥If the other party has difficulty hearing you, press (›) to decrease the speaker volume. Decreasing the speaker volume will increase the microphone sensitivity.
Answering Calls When a call is received, the unit rings and “Incoming call” is displayed. If you subscribe to a Caller ID service, the calling party information will be displayed after the first ring (p. 29). In order to view the Caller ID information, please wait until the second ring to answer a call.
Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. If you subscribe to a Caller ID service, the calling party’s information will be shown on the cordless handset and the base unit after the first ring.
Using the Caller List Viewing the Caller List You can view the caller list with the cordless handset or the base unit. Caller List information includes the caller’s name and phone number, the time and date the call was received, and the number of times that caller called (p.
What “ ” means When the display shows “ ”, you have already viewed this calling information, answered the call or called back the caller. If the same caller calls again, the call entry with “ ” will be replaced with the new call entry. If a caller calls more than once The number of times the same caller called is displayed (“k2”...
Area code C 1– Area code ≥The order in which patterns a–c are displayed depends on how the telephone number is displayed in step 3. After editing the number, you can continue with calling back or storing procedures. To call back, press To store the number in the directory, press the instructions on the display (p.
Page 33
1– – Area code Phone no. ≥The order in which patterns a–c are displayed depends on how the telephone number is displayed in step 2. After editing the number, you can continue with calling back. (DIGITAL–SP-PHONE) Press For assistance, please call: 1-800-211-PANA(7262)
“ Using the Caller List The Caller ID Number Auto Edit Feature (Cordless\Handset) There are 3 patterns of phone number (a, b, and c, p. 32, 33). This feature allows your phone to automatically edit an in-coming Caller ID number into one pattern you preferred, and display the Caller ID number with that pattern on the base unit and cordless handset automatically.
Page 35
≥To exit the programming mode, press (OFF). ≥When the feature is set to OFF, the unit will still be able to display Caller ID, like regular Caller ID telephone, but the in-coming Caller ID number will not be edited by pattern and by area codes.
“ Using the Caller List Storing Caller List Information in the Directory (Cordless\Handset) You can store phone numbers that are in the Caller List into the directory. Storing must be carried out with the cordless handset. Make sure the base unit and cordless handset are not being used. (›) (‹) Press...
Erasing Caller List Information After checking the Caller List, you can erase some or all of the entries with the cordless handset or base unit. Make sure the base unit and cordless handset are not being used. To erase a specific caller from the Caller List (Cordless\Handset) (›) (‹)
Page 38
“ Using the Caller List To erase all entries in the Caller List Before erasing all entries, make sure that “0 new call” is displayed. (Cordless\Handset) (›) (‹) Press Caller List. 0 new call Press (CLEAR/INTERCOM/HOLD) 1Exit All clear Scroll to “All clear” by (›) pressing Exit...
Directory You can store up to 50 names and phone numbers in the directory using the cordless handset. All directory items are sorted by the first word in alphabetical order. Using the directory, you can make a call by selecting a name on the display of the cordless handset or base unit.
Page 40
“ Directory Enter a name, up to 15 characters, with the dialing buttons, ≥See the steps for entering names and symbols (p. 41). ≥If a name is not required, press (›) (Next key) and go to step 5. (›) Press (Next key).
Entering Names and Symbols The cordless handset dialing buttons ( can be used to enter letters and symbols. The letters are printed on the dialing buttons. Pressing each button selects a character as shown below. Keys & Blank (fi) To move the cursor to the left. (fl) To move the cursor to the right.
“ Directory For example, to enter “Tom Jones”: Press four times. Press three times, then press Press once, then press Press four times, press (fl) then press Press twice, press four times. Finding Stored Items You can search the directory using the cordless handset or the base unit. “...
Symbol (excluding fl and ¢ ¢ ) Keys “ Press (‹). Alphabet letter Number fl and ¢ ¢ Telephone number (If no name is stored) Index M, N, O, 6 P, Q, R, S, 7 T, U, V, 8 W, X, Y, Z, 9...
“ Directory Dialing (Cordless\Handset) (Base\Unit) “ ” is displayed only on the cordless handset display. Make sure the base unit and cordless handset are not being used. (fi) (fl) Press directory list. (›) (‹) Press ≥The first item is displayed. Scroll to the desired item that you want to dial by pressing ≥To search for the item by initial, see page 43.
Editing (Cordless\Handset) Make sure the base unit and cordless handset are not being used. (fi) (fl) Press to enter the directory list. (›) (‹) Press ≥The first item is displayed. Scroll to the directory item you want to change by pressing (fl) ≥To search for the item by initial, see page 43.
“ Directory (›) Press (Next key). ≥If you want to change the storing name or number, press (‹) (Edit key) repeatedly to reach the desired display and change it. When finished, press ≥A beep sounds. ≥To continue editing other items, repeat from step 3.
One-Touch Dialer Storing Phone Numbers in Memory You can store up to 3 phone numbers in the DIRECT buttons. Make sure the base unit and cordless handset are not being used. DIRECT Buttons ((DIRECT1), (DIRECT2), (DIRECT3)) (FUNCTION/EDIT) Press Scroll to “Save DIRECT#” by pressing (‹) (fl) Press...
“ One-Touch Dialer (fl) Press (Yes key). Enter a phone number, up to 22 digits. ≥Each time you press (CLEAR), a digit is erased. To erase all of the digits, press and hold (CLEAR). ≥To move the cursor, press (fi) or (fl). (›) Press (Next key).
Intercom (Cordless\Handset) (Base\Unit) A 2-way intercom is possible between the cordless handset and the base unit. Paging the base unit from the cordless handset Cordless handset: (CLEAR/INTERCOM/HOLD) Press Talk to the paged party after the beeps. ≥“Intercom” is displayed. Base unit: When the other party’s voice is heard, lift the handset or talk into the MIC.
“ Intercom During an intercom call: ≥If the cordless handset user has difficulty hearing the base unit user, decrease the base unit speaker volume by pressing (›). ≥If an incoming call is received, the intercom call stops and the unit starts to ring.
Conference While you are talking with an outside caller, you can call the base unit or cordless handset to make a conference call. (Cordless\Handset) Cordless handset: During a call, press (CLEAR/INTERCOM/HOLD) ≥The call is put on hold and “Line on HOLD. To transfer press INTERCOM.”...
After the voice mail box having received messages, the unit will indicate it in two ways: (a) “Voice mail”...
Page 53
Your voice mail box access number Pressing (REDIAL/PAUSE) once creates a 3.5 second delay and counts as one digit. The delay time depends on a telephone company. To erase a stored number Repeat steps 1 through 5 ¤ press and hold until all of the digits are erased ¤...
Set this programming to “Off” when: —you do not subscribe to a voice mail service, —your telephone company does not send a series of tones, followed by a continuous tone, or —your phone is connected to a business or office telephone system (PBX).
When finished, press (Base\Unit) (VM) Press ≥The base unit is connected to the telephone line and automatically dials the access number. ≥If 3 beeps sound, you have not stored the voice mail access number. Store the number (p. 52, 53).
Special Features (MUTE/FUNCTION) (TONE) (FLASH/CALL\WAIT/VOICE\MAIL) Temporary Tone Dialing (For Rotary or Pulse Service Users) (Cordless\Handset) (Base\Unit) (TONE) Press before entering access numbers which require tone dialing. ≥The dialing mode changes to tone. You can enter numbers to access an answering service, electronic banking service, etc. When you hang up, the mode will return to pulse.
≥The first call is put on hold and you can answer the second call. ≥To return to the first caller, press (FLASH/CALL\WAIT/VOICE\MAIL) or (FLASH/CALL\WAIT) again. ≥The call waiting service cannot be used when a parallel connected telephone is in use. ≥If this function does not operate properly, consult your telephone company for details.
FLASH Button (FLASH/CALL\WAIT/VOICE\MAIL) Pressing to use special features of your host PBX such as transferring an extension call or accessing special telephone services (optional) such as call waiting. ≥Pressing (FLASH/CALL\WAIT/VOICE\MAIL) or (FLASH/CALL\WAIT) causes to release following operations: ≥—temporary tone dialing, ≥—muting your conversation.
Security Code Setting If “No link to base. Walk closer to base & try again” is displayed even if you use the cordless handset near the base unit, the cordless handset may lose communication with the base unit. It is necessary to set the same security code between the base unit and cordless handset.
(1), then remove the wall mounting adaptor (2). Connect the AC adaptor. Tuck the telephone line cord inside the wall mounting adaptor, then push it in the direction of the arrow (1 and 2). ≥The word “UP WALL” should face upward.
Connect the telephone line cord. Mount the base unit, then slide down. ≥Raise the antennas. Charger unit The charger can be wall mounted. Connect the AC adaptor. Install screws using the wall template (p. 60). Mount the charger (1). Slide it down (2), then slide down to the right (3) until it is secured.
Optional Headset Plugging an optional headset into the cordless handset allows a hands- free phone conversation. Please use only the Panasonic KX-TCA88 headset. To order, call the accessories telephone number on page 2. Connecting the optional headset to the cordless handset Open the headset jack cover, and connect the optional headset to the headset jack as shown below.
If “Recharge battery” is displayed and/or “ telephone calls even if the battery was fully charged, replace the battery with a new Panasonic PQP510SVC (P-P510) battery. To order, call the accessories telephone number on page 2. Carefully insert a flat metal object in the slot, and push forward to release the lock.
Adding Another Phone This unit will not function during a power failure. To connect a standard telephone on the same line, use the Panasonic T-adaptor KX-J66. To order, call the accessories telephone number on page 2. Standard Telephone Single-Line Telephone Jack T-Adaptor (KX-J66) If the Following Appear...
Base in use Save error Line in use Base unit display 12:00AM JAN. 1 Line in use Portable in use For assistance, please call: 1-800-211-PANA(7262) While the base unit was being used, was pressed to search the Caller List/directory (fl) list, was pressed to select an option or (CLEAR/INTERCOM/HOLD)
Troubleshooting Cordless handset Problem “No link to base. Walk closer to base & try again” is displayed on the cordless handset display and an alarm tone sounds. Static, sound cuts in/out, fades. Interference from other electrical units. The cordless handset does not ring.
Page 67
≥Other electrical appliances connected to the same outlet may be interfering with the Caller ID information. ≥Telephone line noise may be affecting the Caller ID information. ≥Do not pause for over 60 seconds while searching. ≥The line mode selection is incorrect.
≥Other electrical appliances connected to the same outlet may be interfering with the Caller ID information. ≥Telephone line noise may be affecting the Caller ID information. ≥Do not pause for over 60 seconds while searching. ≥The line mode selection is incorrect.
Page 69
Problem You cannot page a cordless handset. You cannot redial by (REDIAL) pressing General Problem The unit does not work. You cannot program items, such as the dialing mode. For assistance, please call: 1-800-211-PANA(7262) Cause and Remedy ≥The cordless handset is too far from the base unit.
Page 70
≥Charge the battery fully (p. 11). ≥Clean the charge contacts and charge again (p. 12). ≥Install a new battery (p. 63). ≥Call our customer call center at 1-800-211-PANA(7262). ≥Panasonic’s e-mail address for customer inquiries: consumerproducts@panasonic.com for customers in the USA or Puerto Rico ONLY...
Important Safety Instructions When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 11. Read and understand all instructions. 12. Follow all warnings and instructions marked on this unit. 13.
Page 72
“ Important Safety Instructions CAUTION: To reduce the risk of fire or injury to persons, read and follow these instructions. 1. Use only the battery(ies) specified. 2. Do not dispose of the battery(ies) in a fire. They may explode. Check with local waste management codes for special disposal instructions.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0).
Page 74
TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, move the cordless telephone further away from the TV or VCR.
Page 75
≥If there is any trouble—disconnect the unit from the telephone line and connect a known working phone. If the known working phone operates properly, have your unit repaired by one of the authorized Panasonic Factory Service Centers. If the known working phone does not operate properly, consult your telephone company.
Specifications ∫Base unit Power Supply: Power Consumption: Frequency: Dimensions (H k k W k k D): Approx. 90 mm k 192 mm k 210 mm Mass (Weight): ∫Charger Power Supply: Power Consumption: Dimensions (H k k W k k D): Approx. 73 mm k 94 mm k 101 mm Mass (Weight): ∫Cordless handset Power Supply:...
Suite B 4900 George McVay Drive McAllen, TX 78503 For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)- 768-2910. When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.
Web Site. Accessory Purchases: 1-800-332-5368 (Customer Orders Only) Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST) (Visa, MasterCard, Discover Card, American Express, Check) Matsushita Electric of Puerto Rico, Inc.
For assistance, please call: 1-800-211-PANA(7262) I Installation AC adaptor ... 10 Adding another phone... 64 Charger unit ... 11 Corded handset... 10 Telephone line cord... 10 Intercom call ... 49 Intercom paging... 49 L LCD contrast ... 21, 22 Lighted cordless handset keypad... 25 Line mode ...
Page 80
Symptom ≥Send the unit to an authorized servicenter, prepaid and adequately insured. ≥Do not send your unit to the Panasonic Consumer Electronics Company listed below or to executive or regional sales offices. These locations do not repair consumer products. If you need assistance with the set-up or operation,...
