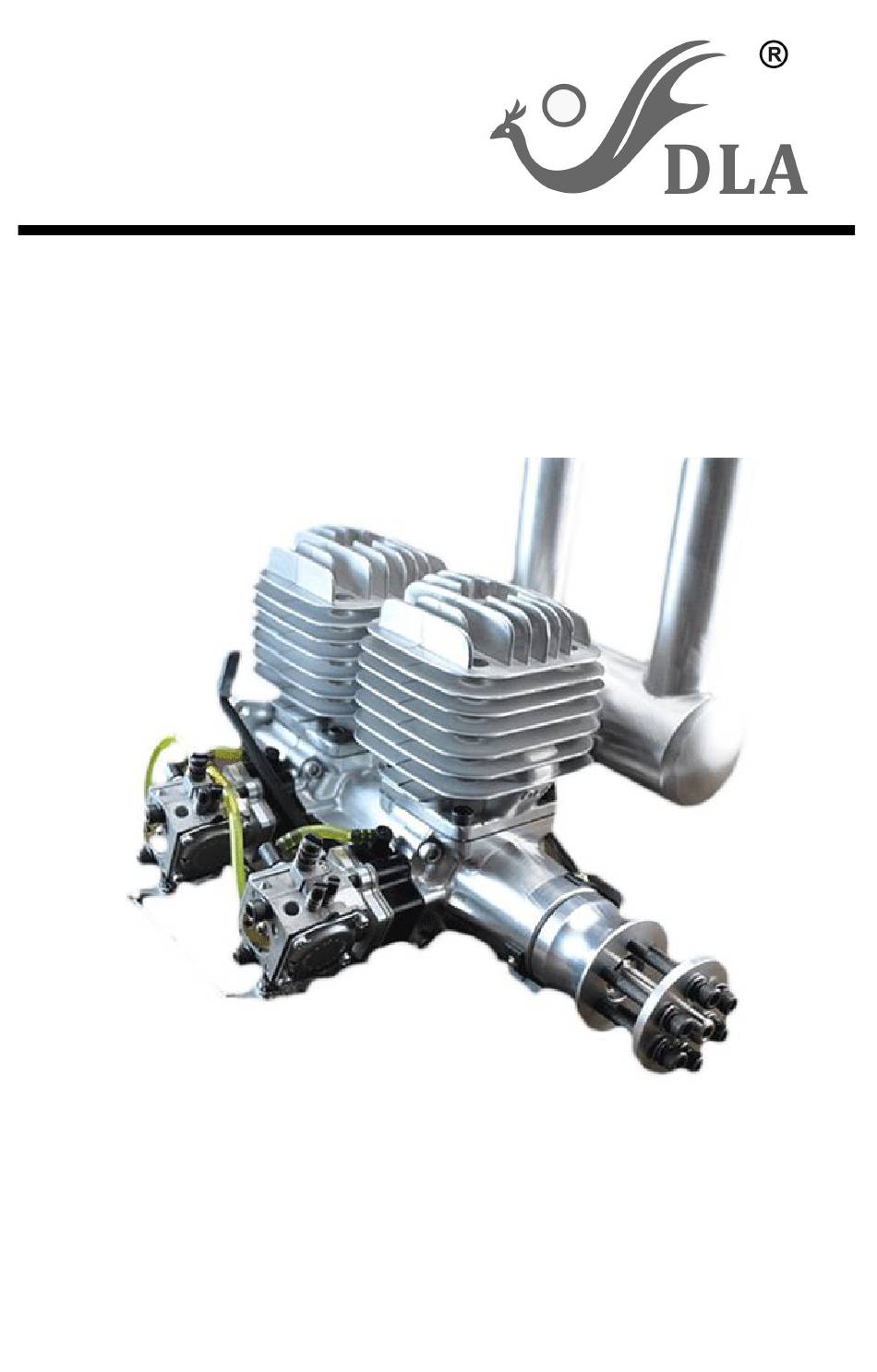

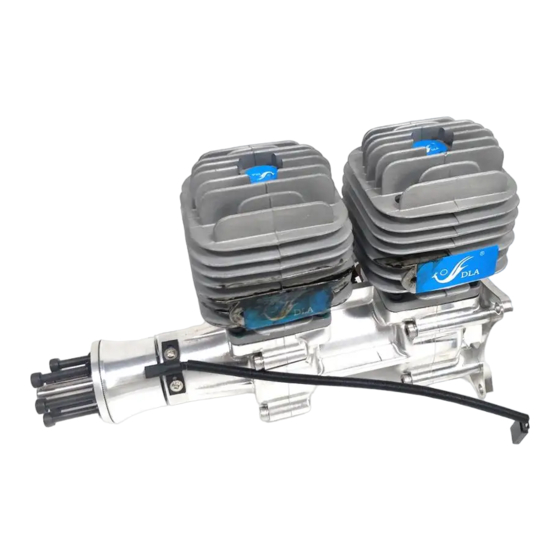

- Page 1 DLA116i2 TOPLEVEL GASOLINE ENGINE USER MANUAL Manufactured by FeiaoModel www.dlaengine.com/www.feiaomodel.net...
- Page 2 User Manual Thanks for purchasing DLA series engines, please read all of the instructions below before starting your engine, especially the Safety Instructions. About DLA engines Your DLA engine has been specifically designed, developed and manufactured from proprietary components for giant scale model, it is very powerful, extremely lightweight, easy to adjust and operate, and should provide years of outstanding performance.
- Page 3 Weight: Main engine -3140g, muffler-250g*2, Ignition-133g*2 Safety Instructions before starting engines WARNING! This engine is not a toy! Serious injury and /or death can occur from its misuse! READ and become familiar with this entire instruction manual. LEARN the engine's applications, limitations, and possible hazards.
- Page 4 firewall where the firewall is larger than the engine plate. 3. In order to make sure the engine does not speed excessively without a positive control installed, throttle return springs must be left in place. 4. After you have connected the return spring to the throttle servo you may unhook it（do not remove it）, since it acts as a spacer for the butterfly.
- Page 5 • It is important to achieve the correct coordination of the sensor(s) to the magnets for fitting a new ignition. • Four cylinders engine containing 2 ignitions and 2 sensors. One sensor is marked ”F”, it must be connected with the ignition, which is working for front two cylinders.
- Page 6 Carburetor Tuning and Care The use of a tachometer is highly recommended. And, again, never adjust the needles while the engine is running! Tuning 1. Using the tachometer tune the engine for maximum power with the high needle (H). 2. Using the tachometer again: richen the high needle (H) until the engine runs 100-200 RPM less than the maximum RPM.
- Page 7 Solution: Balance the propeller. Check the ignition timing. Check your plumbing for air/fuel leaks Check your spark plug for carbon and check the spark plug gap. Check the engine mount to be sure it is rigid. Check to make sure the engine is mounted on a level surface so that crankcase is free of tension.
- Page 8 Company: Shandong Feiao Aircraft Engine Co., Ltd. Address: No.2 Research and development Building,NO.177 High-tech 6th Road, Donggang District, Rizhao Shandong, China Tel : 0086-633-7968381/7968386 Fax : 0086-633-7968386 Email : emily@dlaengine.com www.dlaengine.com / www.feiaomodel.net...
