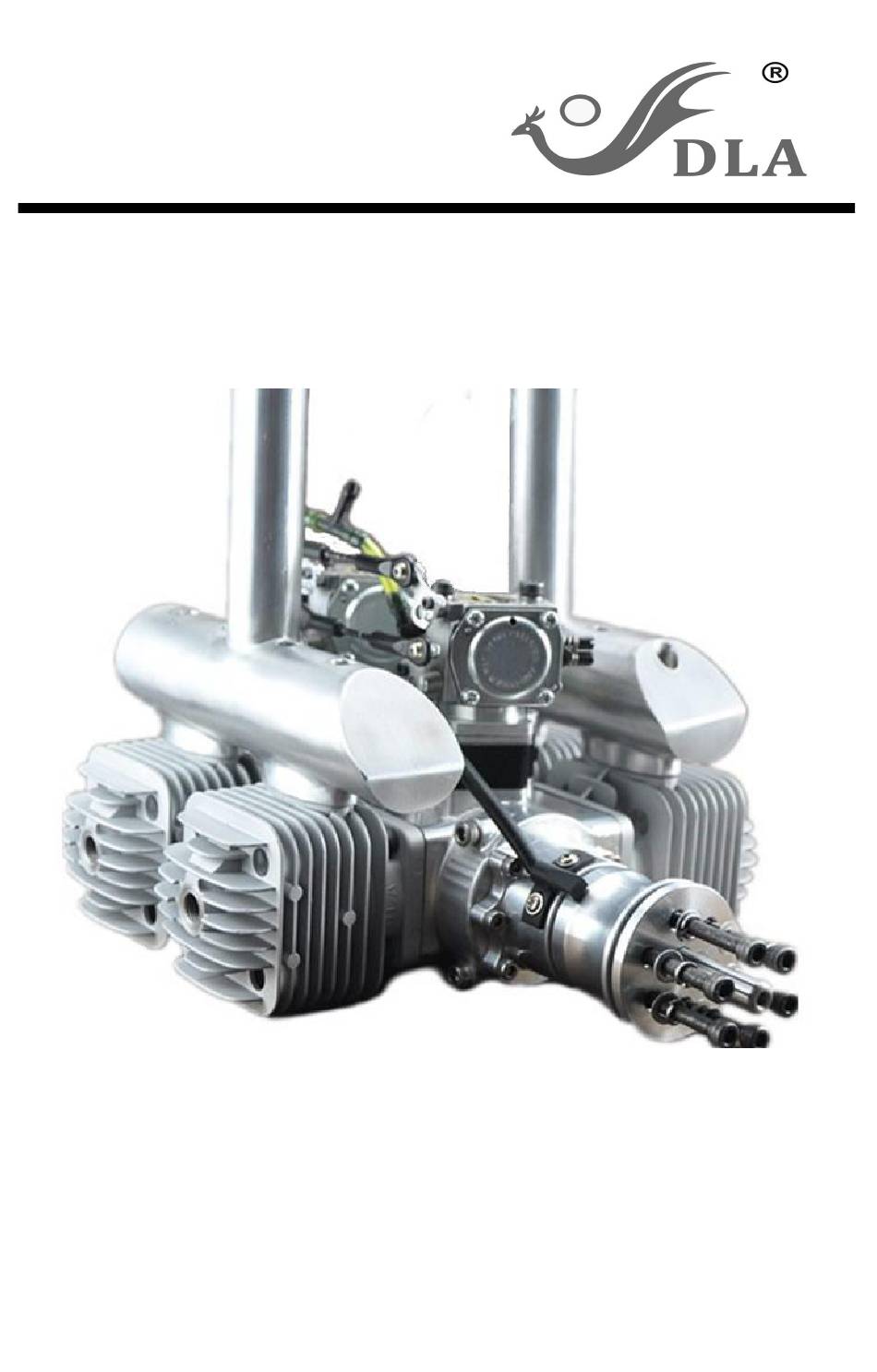

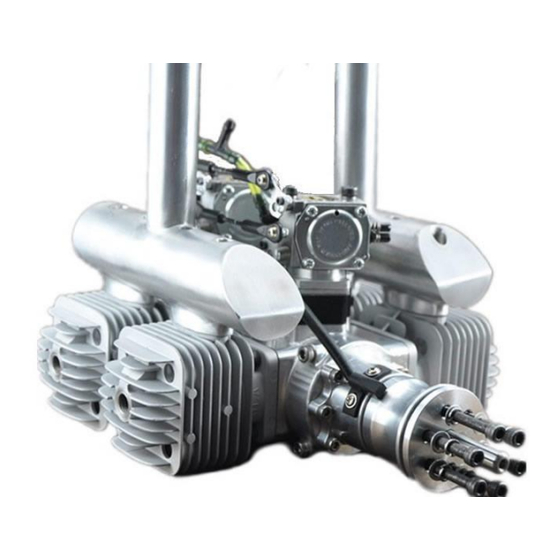

- Page 1 DLA360 TOPLEVEL GASOLINE ENGINE USER MANUAL Manufactured by FeiaoModel www.dlaengine.com/www.feiaomodel.net...
- Page 2 User Manual Thanks for purchasing DLA series engines, please read all of the instructions below before starting your engine, especially the Safety Instructions. About DLA engines Your DLA engine has been specifically designed, developed and manufactured from proprietary components for giant scale model, it is very powerful, extremely lightweight, easy to adjust and operate, and should provide years of outstanding performance.
- Page 3 Ratio of compression: 8.6:1 Lubrication Ratio：25:1~30:1 （Trial Run）, 40:1~50:1（Normal Flying） Weight: 7280g Exhaust pipe: 240g Ignition: Main engine: 180g*2 standoffs: 22*4g Safety Instructions before starting engines WARNING! This engine is not a toy! Serious injury and /or death can occur from its misuse! READ and become familiar with this entire instruction manual.
- Page 4 gravel, power cords, ropes, sand, etc. Loose material can be drawn into the turning prop causing injury or damage. Engine installation 1. Make sure each engine comes with a firewall mounting plate drilled with four holes for #10 size screws. 2.
- Page 5 Note: Damage caused by fuel additives, such as nitro, over-lean carburetor settings, over-advanced timing and over-heating are not covered under warranty. Ignition system DLA Ignition details: • The red cable is positive (+), while the black is negative (-). • Working voltage: 6.6V~8.4V (7.4V ， 2S Li-Po battery is recommended) •...
- Page 6 your receiver and transmitter are on, and that your throttle is set to low. 3. Close the choke and turn on the ignition switch. 4. Rubber stick is recommended to start the engine. 5. Begin flipping the prop through its compression stroke until the engine fires.
- Page 7 fuel runs out and clean it. Check the connections of spark plug, screws, restart the engine, if it failed to start again, please send it back to After-sale service center for repair. Problem2. The engine starts after being choked but then stops soon after.
- Page 8 • Damage incurred during transit to After Service Center. Company: Shandong Feiao Aircraft Engine Co., Ltd. Address: No.2 Research and development Building,NO.177 High-tech 6th Road, Donggang District, Rizhao Shandong, China Tel : 0086-633-7968381/7968386 Fax : 0086-633-7968386 Email : emily@dlaengine.com www.dlaengine.com / www.feiaomodel.net...
