Summary of Contents for FeiaoModel DLA64

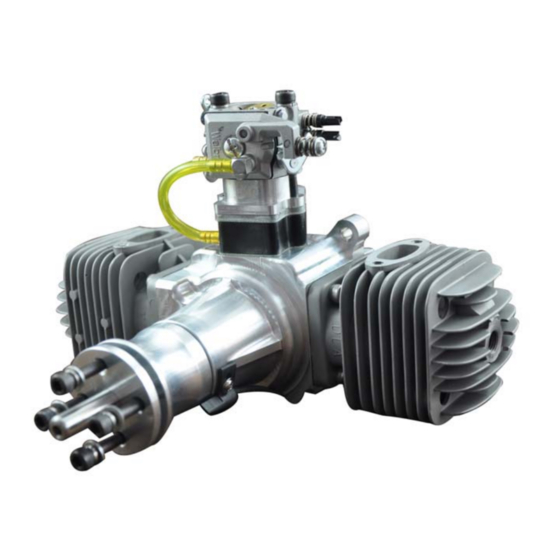

- Page 1 DLA64 TOPLEVEL GASOLINE ENGINE USER MANUAL Manufactured by FeiaoModel www.dlaengine.com / www.feiaomodel.net...
- Page 2 User Manual Thank you for purchasing DLA series engines. Please read all of the instructions below before starting your engine, especially the Safety Instructions. About DLA engines Your DLA engine has been specifically designed, developed and manufactured from proprietary components for giant scale model, it is very powerful, extremely lightweight, easy to adjust and operate, and should provide years of outstanding performance.
- Page 3 Flying) Weight: Main engine -1700g, muffler-65g*2pcs, Ignition-180g Safety Instructions before starting engines WARNING! This engine is not a toy! Serious injury and /or death can occur from its misuse! READ and become familiar with this entire instruction manual. LEARN the engine's applications, limitations, and possible hazards.
- Page 4 3. In order to make sure the engine does not speed excessively without a positive control installed, throttle return springs must be left in place. 4. After you have connected the return spring to the throttle servo you may unhook it（do not remove it）, since it acts as a spacer for the butterfly.
- Page 5 The propeller selection and installation Make sure the prop, spinner and prop bolts before each flight! Loose prop bolts allow prop movement which will shear the bolts. Selection: • The following props are recommended: 22*10, 23*10, 23*8. • Only use propeller sizes that are recommended above for your engine •...
- Page 6 the engine runs 100-200 RPM less than the maximum RPM. Now you should richen slightly on the high needle (H). Keep the engine run at idle for 60 seconds. Insure that the idle RPM to be constant. If the low needle (L) is too rich, it may happen that idle RPM drops until the engine stops;...
- Page 7 Problem4. The engine doesn't reach a normal RPM at full throttle. Solution: Check: A. The carburetor settings. B. See if the propeller is too large. C. See if the engine is overheating. D. The ignition timing. E. The spark plug for defect. Verify: A.
- Page 8 Company: Xi’an Feiao Model Co.,Ltd. Address: East of Xianning Road, Yanta District, Xi’an, Shaanxi, 710032, China Tel : 0086-29-83644296/15829698287 Fax : 0086-29-83644296 Email : emily@dlaengine.com www.dlaengine.com / www.feiaomodel.net...
