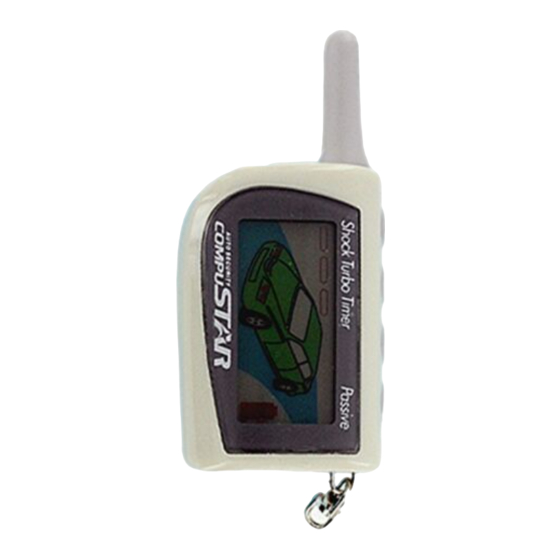

- Page 1 Two-Way FM Remote USER’ S GUIDE By Firstech, Inc. Website: www.compustar.org © 2001 Firstech, Inc. Page 1...
-
Page 2: Table Of Contents
Safety Information… … … … … … … … … … … … … … … … … … … .… … Page 3 Remote-Pager: 2WFMR w/LCD… … … … … … … … … … … … … … … … … … 3 CompuGLO color LCD (Liquid Crystal Display)…... -
Page 3: Safety Information
1. Servicing the vehicle When servicing (i.e. changing the oil, washing your car) your automobile, the CompuStar system should be in Valet Mode. There is a safety shutdown switch under the hood that deactivates the remote starter function if the hood is open. -
Page 4: Compuglo Color Lcd (Liquid Crystal Display)
The remote-pager comes with CompuGLO which is a unique color LCD display that visually tells the vehicle owner the security status of your car at all times. There are differing icons that will appear on your CompuGLO LCD indicating what your vehicle is currently doing. Auto Turbo Timer... -
Page 5: Remote-Pager Button Functions
Battery Displays remaining battery life. Blinking Battery Displays running time left – each bar represents 25% of the while engine running time. running Door Displays if your door is open. Exhaust Fumes Displays if your vehicle has auto-started properly or ignition on. Trunk Displays if your trunk is open. -
Page 6: Remote-Pager Learn Routine
- meand pressing the button for 2 seconds. ) means simultaneously pressing the buttons ) – means simultaneously pressing the buttons for 2 seconds Remote -Pager Learn Routine If you replace or add additional remotes, you can program up to three remotes, please perform the following procedure: Step 1: Activate Valet/Programming mode by manually turning the ignition on and off five times (between Acc and On) with car key within a 10 second period. -
Page 7: Dual Stage Shock Sensor
Press Buttons (I+III) for 2 seconds to activate or deactivate the dual stage shock sensor. The dual stage shock sensor will activate 30 seconds after the CompuStar alarm mode is armed. When the dual shock sensor is engaged, the remote-pager security alerts will be triggered by the following: I. -
Page 8: Reservation Mode (Manual Transmission Only)
If your remote-pager has a problem starting the vehicle, CompuStar will try 2 additional times. If the engine does not start after the third attempt, please call your authorized CompuStar dealer. -
Page 9: Reservation Mode
Your vehicle is now ready for auto-starting. However, the reservation mode will be cancelled if the door is opened or the CompuStar system is put in Valet mode after the reservation has been set. Once cancelled, you will have to start the vehicle with the manual key and repeat the above 5 steps if you want to restore reservation mode. -
Page 10: Trunk Release
vehicle. The engine will shut off for the following reasons: You did not activate the parking brake or press the foot brake when you turned the manual key to the off position. You released the parking brake while the engine was running. You entered Valet Mode after the Reservation Mode has been completed. -
Page 11: Panic Mode
Panic Mode Press Button IV for 2 seconds to enter Panic Mode. In this mode, the car will arm if not armed already and the siren will activate and the parking lights will flash. In order to disengage Panic Mode, press Button I for ½ second. Then, press Button I for a ½... -
Page 12: Timer Start Mode
Safety Shut Down Features CompuStar 2WSSR system has several shut down safety features. The following actions will shut down the engine or prevent the car from auto-starting:... -
Page 13: Optional Programmable Features
When set to passive arming, your security system will arm automatically 30 seconds after all the car doors are closed. There are two types of passive arming that can be programmed by your CompuStar dealership: (1) passive arming with passive lock and (2) passive arming with active lock. -
Page 14: Turbo Mode
Consult the authorized dealer for this mode. OPTIONAL INSTALLATION FEATURES The CompuStar 2WSSR remote-pager has additional features and expansion possibilities that require additional parts and labor. Cold Start Mode If the optional temperature sensor has been installed, Timer Start Mode becomes Cold Start Mode. -
Page 15: Optional Auxiliary 1 & Auxiliary 2
Optional Auxiliary 1 & Auxiliary 2 The auxiliary system is an optional car feature that can be tailored for your vehicle by your local authorized CompuStar dealership. For example, you can customize your car to have remote power control of your windows, radio, and sunroof in addition to the rooftop on your convertible car. -
Page 16: Your Warranty
DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECOMONIC OPPORTUNITY AND THE LIKE that may or may not resulted from the operation of Compustar. NOTHWITHSTANDING THE ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED ABOVE.
