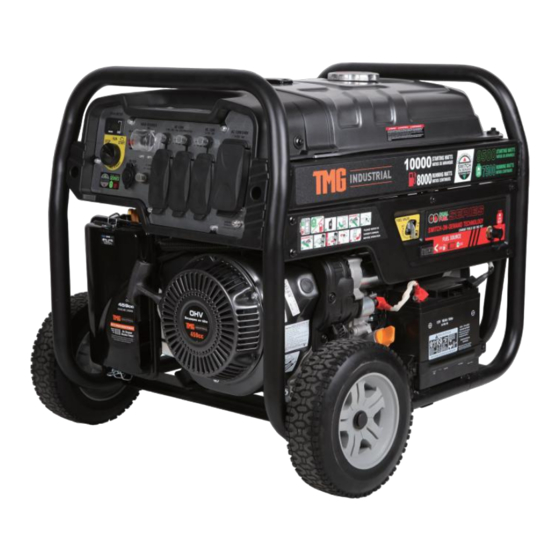

10,000W Portable Generator
WWW.TMGINDUSTRIAL.COM
Please read the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
Do not return the product to dealer, they are not equipped to handle your
requests
PRODUCT MANUAL
Dual Fuel: Gas and LPG
Model: TMG-10000GED
Toll Free:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-10000GED and is the answer not in the manual?

Questions and answers

Rhonda Griffiths
July 20, 2025

I'm looking for info on exhaust extension

0

Related Manuals for TMG TMG-10000GED

Summary of Contents for TMG TMG-10000GED

  • Page 1 PRODUCT MANUAL 10,000W Portable Generator Dual Fuel: Gas and LPG Model: TMG-10000GED Please read the product manual completely before assembly Check against the parts list to make sure all parts are received Wear proper safety goggles or other protective gears while in assembly Missing parts or questions on assembly? Please call: 1-877-761-2819 or email: cs@tmgindustrial.com...
  • Page 2 CALIFORNIA PROP65 WARNING TMG-10000GED 16.0HP 459cc 60Hz 120/240V 7.5KW-LPG 8.0KW-GAS 6.6 Gallon WWW.TMGINDUSTRIAL.COM P2/33 Toll Free:1-877-761-2819...
  • Page 3 TABLE OF CONTENTS 17 For Gasoline 20 For LPG WWW.TMGINDUSTRIAL.COM P3/33 Toll Free:1-877-761-2819...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Operation Using Electric Power AC Application Stopping the Generator Stopping the Generator Oil Sensor Maintenance Transporting Storage Warranty WWW.TMGINDUSTRIAL.COM P4/33 Toll Free:1-877-761-2819...
  • Page 5 INTRODUCTION Attention: Read through the complete manual prior to the initial use of your generator. Using the Operator’s manual The operating manual is an important part of your generator. It should be read thoroughly before initial use, and referred to often to make sure adequate safety and service concerns are being addressed.
  • Page 6 SAFETY Save these Instructions Safety Rules This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a symbol and/or a safety message to alert you to hazards.
  • Page 7 SAFETY WARNING Generator exhaust contains carbon monoxide, a poisonous gas that can kill you. You CANNOT smell or see this gas. • Use the generator outdoors, away from open windows, vents, or doors that could allow the carbon monoxide gas to come indoors.
  • Page 8 SAFETY WARNING Starter cord kickback (rapid retraction) will pull hand and arm toward engine faster than you can let go which could cause broken bones, fractures, bruises, or sprains resulting in serious injury. • When starting the engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
  • Page 9 SAFETY This product has been designed with internal grounding or floating bonded neutral. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER Improper grounding can result in a risk of electrocution.
  • Page 10 SAFETY Important Safety Instructions WARNING To reduce the risk of injury, read this operator’s manual completely before using. When using this product, the following basic precautions should always be followed. • Do not enclose the generator or cover it. The generator may become overheated if it is enclosed.
  • Page 11 SAFETY • Keep children and all bystanders at a safe distance from work area. • It is absolutely essential that you know the safe and proper use of the power tool or appliance that you intend to use. All operators must read, understand and follow the tool / appliance owners manual.
  • Page 12 ASSEMBLY ASSEMBLY Assembling the Accessory Kit NOTE: The wheels are not intended for over-the-road use. Installing the wheels • Slide the axle through the hole in the center of the wheel. • Slide a washer onto the axle, then slide the axle into the wheel mounting hole as shown.
  • Page 13 GENERATOR COMPONENTS Read this operator’s manual and safety rules before operating your generator. a. Hourmeter b. Low Oil Alert c. Main Breaker d. Circuit Breakers e. 50A Socket f. Engine Switch g. DC 12V h. DC Circuit Breaker i. 20A Socket j.
  • Page 14 PREPARING THE GENERATOR Grounding Instructions DANGER Improper connection of the equipment grounding conductor can result in a risk of electrocution. Check with a qualified electrician if you are in doubt as to whether the unit is properly grounded for your local regulations. The ground terminal on the frame can be used to connect the generator to a suitable ground source.
  • Page 15 PRE-OPERATION CHECKLIST Engine Oil Before checking or refilling oil, be sure generator is located on stable and level surface with engine stopped. 1. Remove oil dipstick Degrees Celsiusº(Outside) and check the engine oil level. 2. If oil level is below Full Synthetic 5W-30 the lower level line, refill with suitable...
  • Page 16 PRE-OPERATION CHECKLIST WARNING DO NOT overfill the tank, leave room for the fuel to expand. If the fuel tank is over filled, fuel can overflow onto a hot engine and cause a FIRE or EXPLOSION. If fuel spills, wait until it evaporates before starting engine.
  • Page 17 PRE-OPERATION CHECKLIST WARNING Keep area clear of flammables or other hazardous materials. • Keep generator at least 3ft (1m) away from buildings or other structures. Keep at least 5ft (152cm) of clearance on all sides of generator including overhead. • Only operate generators in a dry, well ventilated area. •...
  • Page 18 STARTING YOUR GENERATOR Recoil Start CAUTION When starting the engine with the recoil start, set the toggle switch in the “ON” position before pulling the starter handle. Make sure all appliances are disconnected from the generator. START Move engine choke lever to the “START”...
  • Page 19 STARTING YOUR GENERATOR Electric Start 1. Make sure all appliances are disconnected from the generator. 2. Turn the choke lever to the “START” position. (When the engine is warm or temperature is high, start engine with the choke lever in the “RUN” position). 3.
  • Page 20 STARTING YOUR GENERATOR 1-2. For LPG • Connect the LPG gas hose to the propane fuel source. • Connect the small end of the LPG gas hose to the LPG regulator on the generator and then snug with a wrench to prevent leakage. •...
  • Page 21 STARTING YOUR GENERATOR Recoil Start CAUTION When starting the engine with the recoil start, set the toggle switch in the “ON” position before pulling the starter handle. Make sure all appliances are disconnected from the generator. For recoil start, firmly grasp the recoil handle and pull slowly untilincreased resistance is felt.

  • Page 22: Operation

    OPERATION Using Electric Power WARNING Risk of electrocution. Make sure that the appliance generator. • DO NOT move the generator while it is running. Connecting Electrical Loads 1. Let engine run stable and warm up for a few minutes after starting. 2.

  • Page 23: Stopping The Generator

    OPERATION/ STOPPING THE GENERATOR • Most electrical tools require 1.2 to 3 times their wattage for running under load during use. For example, a 5000 watt generator can power a 1800 to 4000 watt electrical tool. • Loads such as submersible pumps and air compressors require a very large force to start.

  • Page 24: Maintenance

    MAINTENANCE Maintenance Schedule CAUTION Make sure the engine is stopped before starting any maintenance, servicing or repair. NOTE: It is recommended to use ear protection when performing operation, maintenance and repair of the generator. Maintenance, replacement or repair of the emission control devices and systems must be performed by an authorized service provider.
  • Page 25 MAINTENANCE Changing Engine Oil Change oil after the first 8 hours of operation. Thereafter it should be changed every 50 hours. Drain oil by removing the drain plug and the oil filler cap while the engine is warm. Reinstall the drain plug and fill the engine with oil until it reaches the upper level on the oil filler cap.
  • Page 26 MAINTENANCE CAUTION Since the fuel (gasoline) will deteriorate with time, replace fuel (gasoline) with fresh fuel periodically; every three months or add a fuel stabilizer. Spark Arrester The spark arrester must be cleaned regularly to keep it functioning as designed. A clogged spark arrester: •...

  • Page 27: Transporting

    TRANSPORTING WARNING To prevent fuel spillage due to the vibration and impact, never transport the generator with fuel (gasoline) in the tank. Secure the tank cap. To avoid the risk of the gasoline flammability, never leave the generator in an area exposed to direct sunlight or high temperatures for a long period time.

  • Page 28: Storage

    STORAGE DANGER NEVER store engine with fuel in tank indoors or in enclosed, poorly ventilated areas where fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliance. Drain fuel into approved container outdoors, away from open flame.

  • Page 29: Warranty

    This warranty also does not cover are warranted for six months. TMG customer regular maintenance and parts such as air filters, noted herein. Commercial and rental applications adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon, lime, and so forth).
  • Page 30 Parts Diagram WWW.TMGINDUSTRIAL.COM P30/33 Toll Free:1-877-761-2819...
  • Page 31 Parts List WWW.TMGINDUSTRIAL.COM P31/33 Toll Free:1-877-761-2819...
  • Page 32 Parts List WWW.TMGINDUSTRIAL.COM P32/33 Toll Free:1-877-761-2819...
  • Page 33 WWW.TMGINDUSTRIAL.COM P33/33 Toll Free:1-877-761-2819...
