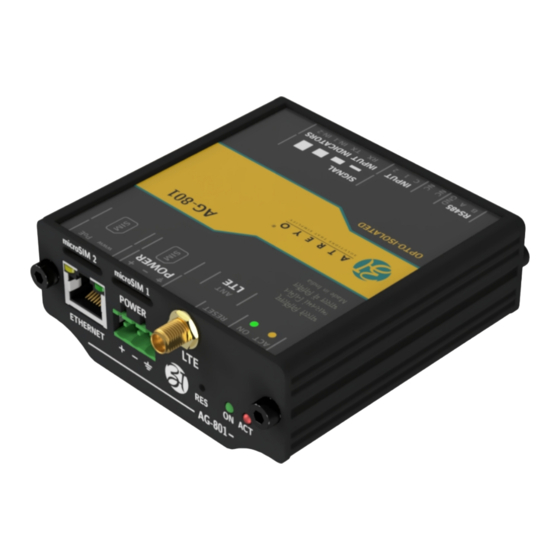

- Page 1 HARDWARE GUIDE AG-801 Modbus RTU gateway with LTE and GSM www.atreyo.in Page | 1 ARAD/AG-801/HG/2022/03 – preliminary...
-
Page 2: Table Of Contents
Hardware Guide AG-801 Table of content 1. Introduction .......................... 3 1.1. Features ..........................3 1.2. Technical specification ....................... 3 2. Layout ........................... 4 2.1. Layout and connector functions ..................4 2.2. Dimensions ........................4 2.3. Packing list ......................... 5 2.4. Optional accessory ......................5 3. -
Page 3: Introduction
PLC, and remote control of any device like: PLC's, remote pumping system, irrigation equipment, agricultural controls etc. The AG-801 has advance alert option with 10 mobile number list for SMS alerts. In superCap models there is power backup with power loss alert facility. -
Page 4: Layout
Hardware Guide AG-801 2. Layout 2.1. Layout and connector functions Top panel view Connector panel view 2.2. Dimensions www.atreyo.in Page |4 ARAD/AG-801/HG/2022/03 – preliminary... -
Page 5: Packing List
Hardware Guide AG-801 2.3. Packaging list AG-801 gateway Antenna LTE All necessary pluggable connectors DIN rail clamp with screws 2.4. Optional accessory High gain LTE antenna / panel mount antenna APS-10W24 – 3 phase power supply 24V/1A adapter power supply www.atreyo.in... -
Page 6: Connectors, Indicators And Functions
Hardware Guide AG-801 3. Connectors, indicators and functions 3.1. Multi-function reset button The AG-801 has multifunction reset button. This button is used to: • reset device • restart device • make default configuration Press and hold the reset button Behaviour... -
Page 7: Rs485 - Modbus
Hardware Guide AG-801 PIN number Function Remark DC + Power supply positive DC + Power supply positive Data DC - Power supply negative DC - Power supply negative 3.4. RS485 – Modbus The device has opto-isolated RS485 interface with support of Modbus RTU. It is dedicated to energy meter, voltage meter and any Modbus device like PLC which support Modbus RTU protocol. -
Page 8: Antenna
3.8. SMS alerts There is option to send SMS alert to the dedicated mobile number when any one of digital inputs is activated. For details see AG-801 Configuration Guide. 3.9. Configuration of device Configuration of AG-801 can be done by: www.atreyo.in... -
Page 9: Power Supply
The device can upload configuration file from remote URL. The configuration of URL initially can be done by SMS or by internal website. Configuration details are specified in separate document – AG-801 Configuration Guide. 3.10. Power supply The device is powered by external DC power supply. Minimum supply voltage is 8V and maximum 36V. -
Page 10: Wiring Example
Hardware Guide AG-801 4. Wiring example 4.1. Example – Power meter connection This is simplified wiring diagram for getting data from energy meter with 2 switches for panel open alerts. www.atreyo.in Page |10 ARAD/AG-801/HG/2022/03 – preliminary... -
Page 11: Legal
Hardware Guide AG-801 5. Legal 5.2. Trademarks Atreyo and the Atreyo logo are registered trademarks of Atreyo Research and Development LLP. 5.1. Copyright All other trademarks and copyrights are the property of their Copyright © 2022 Atreyo Research and Development LLP. This respective owners.
