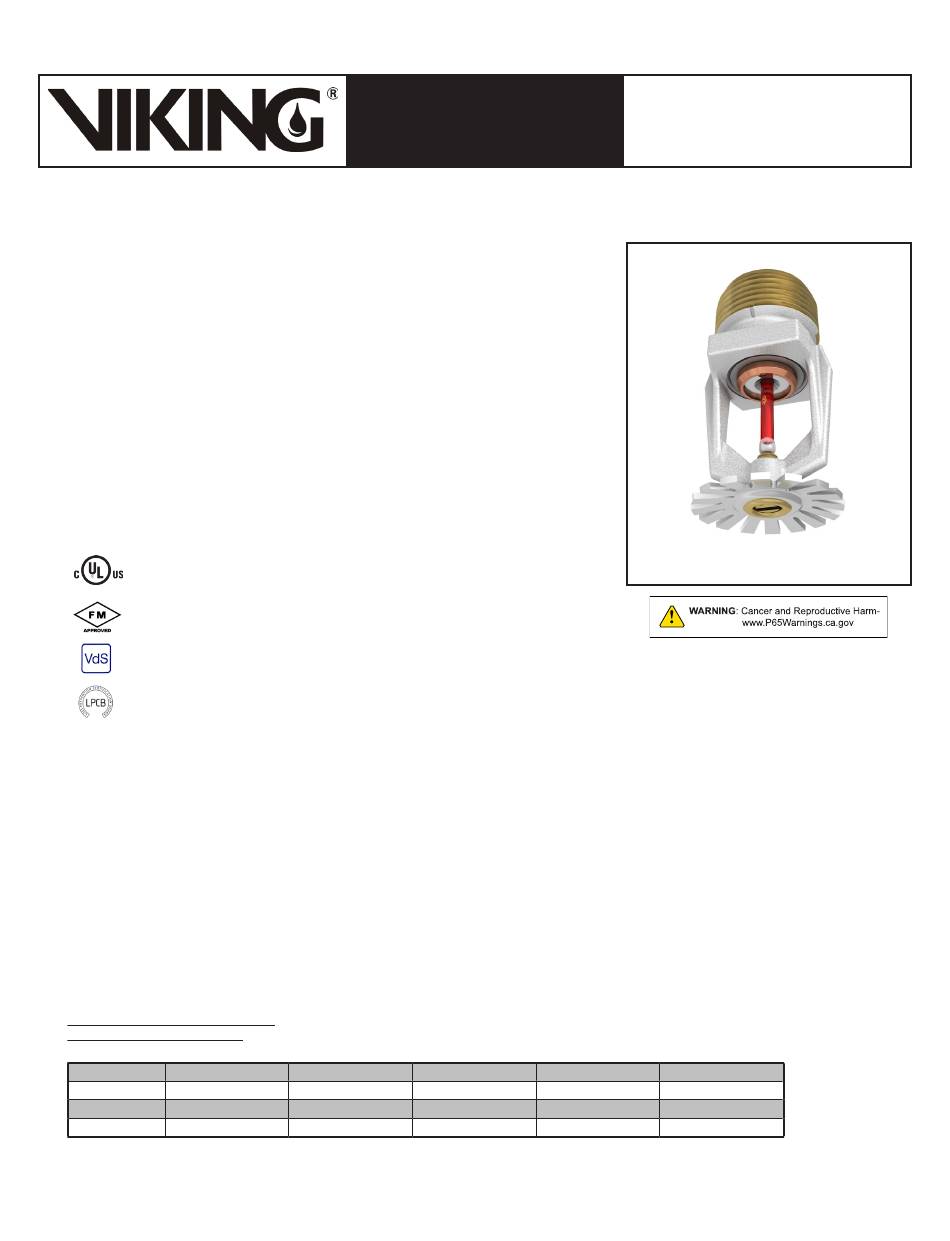

1. DESCRIPTION
Viking Quick Response Extra-Large Orifice Pendent Sprinkler VK377 is a
thermosensitive glass bulb spray sprinkler available in several different finishes
and temperature ratings to meet design requirements. The special Polyester and
Electroless Nickel PTFE (ENT) coatings can be used in decorative applications
where colors are desired. In addition, these coatings have been investigated for
installation in corrosive environments and are listed/approved as indicated in the
Approval Charts.
The extra-large orifice provides greater flows at lower pressures than standard orifice
or large orifice sprinklers. This feature allows reduced pipe sizing for hydraulically
calculated sprinkler systems, which require high densities of water. Viking Quick
Response Extra-Large Orifice Sprinklers may eliminate the need for a fire pump or
reduce the size of the pump if it is required. On existing systems, replacing large
orifice sprinklers with extra-large orifice sprinklers may provide the higher densities
required to allow an increase in the hazard classification of an occupancy.
Viking quick response sprinklers may be ordered and/or used as open sprinklers
(glass bulb and pip cap assembly removed) on deluge systems. Refer to Ordering
Instructions below.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
FM Approved: Class 2009
VdS Approved: Certificate G413049, G413051
LPCB Approved: Certificate 096e/14
Refer to the Approval Charts and Design Criteria for requirements that must be followed.
3. TECHNICAL DATA
Specifications:
Available since 1993.
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: See Approval Charts
Nominal K-factor: 11.2 U.S. (161.3 metric*)
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Overall Length: 2-5/16" (58.7 mm)
* Metric K-factor measurement shown is when pressure is measured in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Material Standards:
Sprinkler Frame: Brass UNS-C84400
Deflector: Brass UNS-C51000
Bulb: Glass, nominal 3 mm diameter
Pip Cap and Insert Assembly: Copper UNS-C11000, or Leaded Bronze (UNS-C31600 or UNS-C31400) and Stainless Steel UNS-S30400
Compression Screw: Brass UNS-C36000
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
For Polyester Coated Sprinklers: Belleville Spring-Exposed
For ENT Coated Sprinklers: Belleville Spring-Exposed, Screw and Pipcap-ENT plated
Finishes and temperatures:
Finish:
Brass
Suffix:
Temperature:
155 °F (68 °C)
Suffix:
Ordering Information: (Refer to Table 1 and the current Viking List Price Book.)
Form No. F_030993
22.04.14
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Chrome
A
F
175 °F (79 °C)
B
D
Rev 22.1
White Polyester
Black Polyester
M-/W
M-/B
200 °F (93 °C)
286 °F (141 °C)
E
G
(Updated FM references to non-storage sprinklers.)
QUICK RESPONSE
ELO PENDENT
SPRINKLER VK377
(STORAGE-DENSITY/AREA)
ENT
JN
--
--
Replaces Form No. F_030993 Rev 21.1
Page 1 of 6
