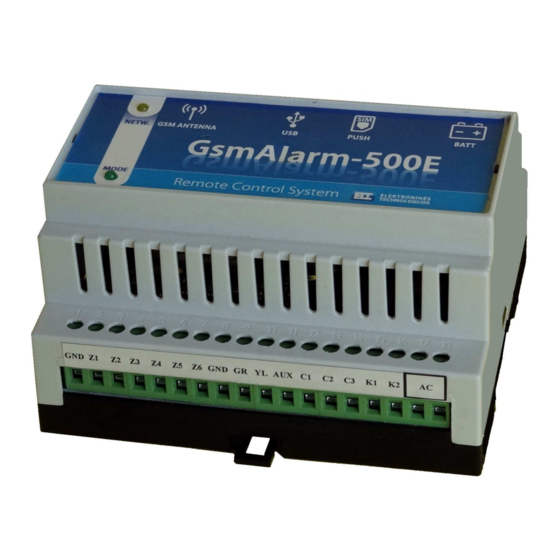

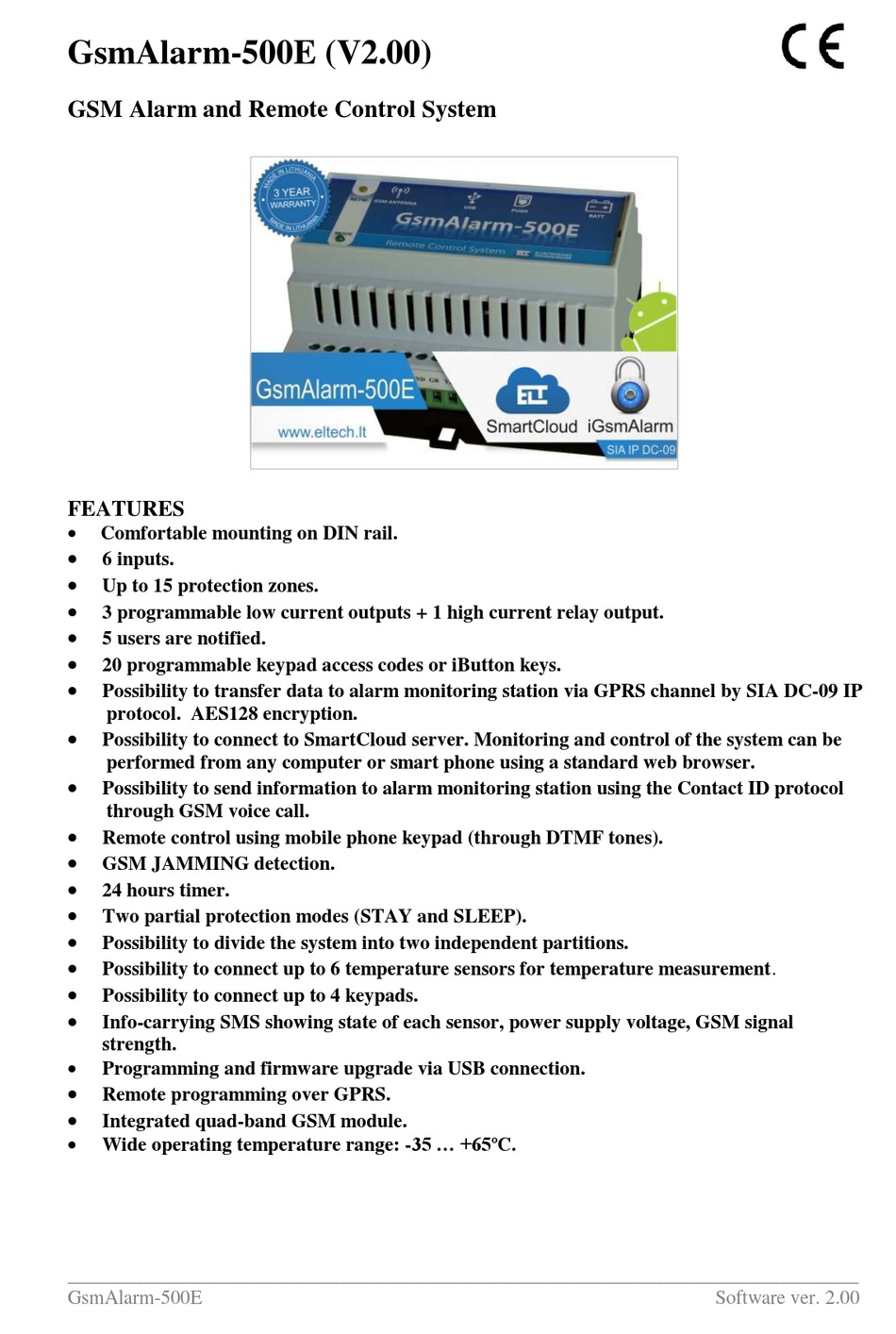

GsmAlarm-500E (V2.00)
GSM Alarm and Remote Control System
FEATURES
Comfortable mounting on DIN rail.
6 inputs.
Up to 15 protection zones.
3 programmable low current outputs + 1 high current relay output.
5 users are notified.
20 programmable keypad access codes or iButton keys.
Possibility to transfer data to alarm monitoring station via GPRS channel by SIA DC-09 IP
protocol. AES128 encryption.
Possibility to connect to SmartCloud server. Monitoring and control of the system can be
performed from any computer or smart phone using a standard web browser.
Possibility to send information to alarm monitoring station using the Contact ID protocol
through GSM voice call.
Remote control using mobile phone keypad (through DTMF tones).
GSM JAMMING detection.
24 hours timer.
Two partial protection modes (STAY and SLEEP).
Possibility to divide the system into two independent partitions.
Possibility to connect up to 6 temperature sensors for temperature measurement.
Possibility to connect up to 4 keypads.
Info-carrying SMS showing state of each sensor, power supply voltage, GSM signal
strength.
Programming and firmware upgrade via USB connection.
Remote programming over GPRS.
Integrated quad-band GSM module.
Wide operating temperature range: -35 ... +65ºC.
_________________________________________________________________________________
GsmAlarm-500E
Software ver. 2.00
Advertisement
Table of Contents
Related Manuals for eltech GsmAlarm-500E
Summary of Contents for eltech GsmAlarm-500E
- Page 1 GsmAlarm-500E (V2.00) GSM Alarm and Remote Control System FEATURES Comfortable mounting on DIN rail. 6 inputs. Up to 15 protection zones. 3 programmable low current outputs + 1 high current relay output. 5 users are notified.
-
Page 2: Table Of Contents
T AB L E O F C O N T E N S TABLE OF CONTENTS 1. General Information ........................1 1.1. Safety Instructions ........................1 1.2. Package Content........................2 1.3. Introduction ..........................3 2. Connectors and LED indicators ....................4 2.1. - Page 3 T AB L E O F C O N T E N S 5.3.5. Programming 24 Hour Timer ..................26 5.3.5.1. Timer Instructions ....................27 5.4. Programming the Description of Input Zone State ..............28 5.5. Programming User Names ..................... 28 5.6.
- Page 4 T AB L E O F C O N T E N S 8.1.1. [ ] Key - Extended indication mode ................46 8.1.2. [TBL] Key - Trouble Display..................46 8.1.3. [MEM] Key - Alarm Memory Display ................47 8.1.4. [BYP] Key - Bypass Programming ................. 47 8.1.5.
-
Page 5: General Information
Open circuit breaker must have a gap between connections of more than 3mm and the disconnection current 5A. System GsmAlarm-500E is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel. There are no parts you can change at place in the device. -
Page 6: Package Content
The system installation or maintenance must not be done during stormy conditions. Remote control and monitoring device GsmAlarm-500E has built-in radio transmitter operating on GSM900 and GSM1800 networks. Do not use the device where it can cause interferences and danger. -
Page 7: Introduction
Up to 4 Paradox K636, K10V/H (MG10LEDV/H), K32 (MG32LED), K32LCD (MG32LCD), TM50 keypads can be connected to GsmAlarm-500E. By using the keypad users can arm or disarm the system and configure system parameters. Following keypad LED indicators you can determine protected unit state, system mode etc. -
Page 8: Connectors And Led Indicators
KEYPAD CONNECTION TERMINALS “GR” and “YL” 2.2. Use GR, YL, GND and AUX terminals to connect PARADOX K636, K10V/H (MG10LEDV/H), K32 (MG32LED) or K32LCD (MG32LCD) keypad. These terminals can also be used for connection of the iButton key reader. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 9: Auxiliary Power Terminal Aux
“AC” POWER TERMINALS 2.6. Use a 16-24 VAC transformer with a minimum 40 VA rating to supply AC power to the GsmAlarm-500E. “BATT” CONNECTOR 2.7. Use this connector to connect the backup battery. Max capacity of the backup battery is 1,2 Ah. -
Page 10: Led Indicators
Blinking with low frequency (once in System is armed. 2-3 sec.). Blinking more frequently than once a System is in alarm state. second. Blinking very rapidly for 2-3 sec. SMS instruction or DTMF command receipt confirmation. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 11: Installation
Use double isolated cable 3x0,75 mm for 230V power supply. Circuit breaker or other surge protection device should be installed in the 230V power line. Antenna is fixed on the top of outer side of metal housing. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... - Page 12 A SIM card needed for GsmAlarm-500E operating, you may acquire it from any GSM service provider. Before inserting SIM card into GsmAlarm-500E SIM card slot set PIN code request off. It can be performed simply inserting SIM card into any standard mobile phone and following certain phone user manual instructions.
-
Page 13: Wiring Diagrams
~1.2 A DS9092LED Siren 2-wire smoke detector iButton key EA318-2 reader I-B utton 4.7k GREY Buzzer Power supply BPT-23CXW-1 for motion or fire detectors Additional Switch ON/OFF relay (if iB utton key is not used) _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 14: Wiring Diagram When The Device Operates In The Gate Control Mode
In this case, individual operated outputs could be assigned to different telephone numbers (see Ch 5.2.1). The system is controlled by a DALLAS key when necessary. Programming of gate control mode of the device is described in Chapter 5.3.2.2 _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 15: Ways To Connect Alarm Zones
A1Y-A6Y: zone operating modes, parameter “A” (see Chapter 5.3.1.1). GsmAlarm-500E has 6 inputs Z1...Z6, corresponding to the zone numbers Z01...Z06. If 6 zones are sufficient for protection of the object, the wiring diagrams 1, 2, 3 or 4 may be deployed. -
Page 16: Connection Of Temperature Sensors
In order to minimize influence of external interferences and measurement error, it is recommended to use shielded twisted pair cable 0.5 mm². Shield is connected to ground wire only in one end, close to GsmAlarm-500E board. Use 2 pins terminal block with a fixing hole for temperature sensor fastening. -
Page 17: Programming
If only one user exists, he must be programmed under ALRNR1. GsmAlarm-500E will send SMS messages to this specific user in case of main power supply loss or if an unknown number calls the system. If armed mode is turned on or off with the single touch of the keypad or by turning the switch ON/OFF (if the keypad is not used) control dials and SMS messages are also directed to the first user. -
Page 18: Programming With Standard Mobile Phone
(E.g. +370...). If GsmAlarm-500E is used for gate control, number of extra user numbers can be as large as fits into the SIM card (up to 250). Any name can be assigned to extra user. Also the user number can be assigned to control only the selected output. - Page 19 A L R N R 1 : + 3 7 0 6 1 2 3 4 5 6 7 8 9 Receipt and decrypting of the SMS by GsmAlarm-500E is confirmed by blink of indicator MODE. The phone, which has sent the programming SMS, immediately receives a confirming SMS with programmed numbers.
-
Page 20: Programming System Parameters With Sms
SMS with corrected parameters back to GsmAlarm-500E. 5.3.1. PROGRAMMING ZONES In order to receive SMS with zone Z1 - Z15 parameters, send GsmAlarm-500E the following SMS: A A A A A A A A Z P A R A M SMS can be sent from any GSM phone, not necessarily the user’s. - Page 21 Possible values: -40 ºC ... 120 ºC. Zone1, Zone2, Zone3, Zone4 – zone names, which are seen in the SMS after alarm triggering. User can change the name of zone under his own discretion. Maximum number of name characters: 16. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00...
-
Page 22: Parameter "A": Input Triggering Conditions
2) Zone with programmable delay time. Violation of the protected zone activates alarm only in armed mode and after expiration of the delay time T. 3) 24-hour zone. Violation of the protected zone activates alarm in armed or disarmed mode. Siren operates continuously, the delay time is ignored. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 23: Parameter "M": System State After Input Triggering
All (ALRNR1-ALRNR5), but not the alarm monitoring station. Important: alarm monitoring station is informed when data transfer to monitoring station is turned on (see Ch. 7.3), number X is higher than 0 and number Y isn’t equal to 9. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 24: Stay And Sleep. Tamper Recognition
5.3.2. PROGRAMMING OUTPUTS C1-C4 (K1, K2) AND COMMON SYSTEM PARAMETERS “E”, “F”, “G”, “H”, “J”, “K”, “L”, “P”, “T” In order to receive SMS with output and common system parameters, send GsmAlarm-500E the following SMS: A A A A A A A A C P A R A M Receiving the message is confirmed by blinking of indicator “MODE”, SMS with current system... - Page 25 P00 - splitting of the system into partitioning and 24 hours tamper supervision (see Ch. 5.3.2.8). T20 - entry delay time. Possible values: 00 – 99 seconds. After correction of the parameters SMS message is sent back to GsmAlarm-500E. _________________________________________________________________________________ GsmAlarm-500E Software ver.
-
Page 26: Output C1-C4 (K1, K2) Operating Mode
1 and 2 for 3 sec or by the command “Logical Key 1”. ** The output is deactivated by simultaneously pressing and holding the keypad buttons 2 and 3 for 3 sec or by the command “Logical Key 4”. ** _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 27: Outputs C1-C4 (K1, K2): Inverted Mode And Operating Time Units
Connect the system after the wiring diagram presented in Chapter 4.2.3. The message AAAAAAAA CPARAM is sent to GsmAlarm-500E to instruct the device to operate in the gate control mode (see Ch 5.3.2.). When output K1 K2 (see Ch. 4.2.3) is used for control of the gate, output parameter M02 in the message received from the device is changed, for example, to M05 and send the message back with the modified values. -
Page 28: Parameter "E": The Way User Is Informed About Arming/Disarming
Possible delayed time values: G01-G99 (in minutes). After recovery of the main power supply, report will be send after 1 minute period of time. This time cannot be programmed. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 29: Parameter "L": Sms Structure And Sms Password Functionality
R P A R A M GsmAlarm-500E sends SMS message with available names of the partitions: AAAAAAAA R1: PARTITION1, R2: PARTITION2, After correction of the names, SMS message is sent back to GsmAlarm-500E. Maximum number of the name’s characters is 16. _________________________________________________________________________________ GsmAlarm-500E Software ver. -
Page 30: Setting System Clock
-timer instruction, defining which function should be performed in programmed time. Please read detailed description of timer instructions in Ch. 5.3.5.1. 00-00 - timer activation time. Renewed SMS message has to be sent to GsmAlarm-500E. User receives SMS message with newly programmed parameters after. _________________________________________________________________________________ GsmAlarm-500E... -
Page 31: Timer Instructions
For the system to activate PGM output C2 on 12:30, deactivate on 13:00 and to send SMS message, informing about the state of outputs on 13:01, following SMS has to be sent to GsmAlarm-500E: A A A A A A A A... -
Page 32: Programming The Description Of Input Zone State
Each user of a keypad or an iButton key can be assigned a name that is indicated in the SMS message of arming or disarming of the system. Up to 20 user names can be programmed. The following message is sent to GsmAlarm-500E to receive an SMS message with the user names: A A A A A A A A... -
Page 33: Programming The System Using The Keypad
Output operating mode. M (C01-C04) Output operating time units: seconds / minutes V ( C01-C04) 331-345 Pulse counting mode. I (Z01-Z15) 401-420 Timer events. STIMER Time and date programming. SCLOCK * parameters if programming by SMS message. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 34: Programming Access Codes
14 User Access Code ALRNR4 15 User Access Code ALRNR5 15 User Access Code ALRNR1 17 User Access Code ALRNR2 18 User Access Code ALRNR3 19 User Access Code ALRNR4 20 User Access Code ALRNR5 _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 35: User Access Code Functionality
The closing code transmission takes place after the exit delay time. Therefore, if the system is armed and disarmed before the expiry of the exit time, no transmission will take place. Possible values: 00 – 99 seconds. Address Parameter Exit delay time Manufacturer-programmed exit delay time: 20 seconds. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 36: Parameter "T": Entry Delay Time Or Triggering Temperature
Zone Z12 „M“ parameter Zone Z5 „M“ parameter Zone Z13 „M“ parameter Zone Z6 „M“ parameter Zone Z14 „M“ parameter Zone Z7 „M“ parameter Zone Z15 „M“ parameter Zone Z8 „M“ parameter Manufacturer-programmed values for all zones: 70. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 37: Tamper Recognition (Parameter P)
„I“ parameter of zone Z13 „I“ parameter of zone Z6 „I“ parameter of zone Z14 „I“ parameter of zone Z7 „I“ parameter of zone Z15 „I“ parameter of zone Z8 The factory default values for all zones: 02. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 38: Zone Response Time
Possible operating modes are described in detail in Chapter 5.3.2.1. Address Parameter Operating mode of output C1. Operating mode of output C2. Operating mode of output C3. Operating mode of output C4. Manufacturer-programmed output modes: C1:01, C2:05, C3:31, C4:06. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 39: Outputs C1-C4 (K1, K2): Inverted Mode And Operating Time Units
OF CALLS TO USER Parameter „F“ defines system response to incoming calls and number of calls to user in alarm state. It is described in detail in Chapter 5.3.2.5. Address Parameter System parameter „F“. Manufacturer-programmed value: 31. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 40: Parameter "G": Delay Time Of Report Sms About The Power Supply Failure
This parameter is described in Chapter 5.3.2.7 in more detail. Address Parameter System parameter „L“. Manufacturer-programmed value: 32. PARAMETER “P”: DIVIDING INTO PARTITIONS. 5.7.19. 24 HOUR TAMPER SUPERVISION. The parameter is comprehensively described in Ch. 5.3.2.8 Address Parameter System parameter „P“. Manufacturer-programmed value: 00. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 41: Access Code Length (4 Or 6 Digits)
3. Keypad zone is deleted by pressing [CLEAR] and [ENTER] keys. Important: after assigning zone to the keypad, the corresponding input zone won’t be operating on the GsmAlarm-500E board. 5.7.23. SETTING SYSTEM CLOCK To set system clock and date: ... -
Page 42: Programming 24 Hour Timer
Manufacturer-programmed Contact ID user account number: 0000. The six digit account number mode corresponds only to the first four digits. The last two digits are ignoring. When programming, you can enter two zeros at the end. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 43: Temperature Correction
The GSM alarm configuration tool is downloadable from the website of the manufacturer: www.eltech.lt. Without a computer, only programming of new keys is possible. Deletion and setup of programmed keys is impossible. -
Page 44: Programming And Diagnostics Over The Internet
A A A A A A A A A P N A P N The massage returned to the user by GsmAlarm-500E contains the access point name, the login name and the login password: AAAAAAAA APN:internet.tele2.lt, APLOG:wap, APPASS:wap, Adjust the access point name, the login name and the login password as required. In Lithuanian networks OMNITEL and BITE GSM, all fields may be blank (comma after colon). - Page 45 30 seconds. The computer IP address that was included in the SMS message from the user is automatically saved in the GsmAlarm-500E memory. Later, the command CONNECT is sufficient to make the GSM module to connect to the same IP address:...
-
Page 46: Resetting System Settings To Factory Defaults
Common system parameters Password [273] [274] [133] [233] [238] [ - ] [237] [236] [100] AAAAAAAA Administrator access code: 0000 (000000) First user access code: 1234 (123456) [Addr.] - parameter address when programming with the keypad. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 47: Data Transfer To Alarm Monitoring Station
GPRS channel, and if fails, are attempted to make a call and transmit data by the audio channel. GsmAlarm-500E transfers data about violation and restoring of alarm zone, arming and disarming, power supply fault, malfunction of the backup battery, malfunction of the fire zone. Test messages can be sent on certain time. -
Page 48: Audio Channel Settings
Data about violation of protected zone, power Users are informed about all events supply fault, malfunction of the backup battery, with SMS messages. malfunction of the fire zone, is transferred. Periodical test signal can be sent.* _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 49: Contact Id Protocol Codes
6 (full transfer via audio channel). * In order that GsmAlarm-500E would send test message to the alarm monitoring station once per day, it is necessary to set system clock (see Ch. 5.3.4) and program 24 hours timer (see Ch. 5.3.5). -
Page 50: System Control Using The Keypad
* System’s clock should be set only system timer function is used. System clock deregulates in case main power supply and backup battery are disconnected. System clock setting with SMS message directions described in Chapter 5.3.4. System clock setting with keypad described in Chapter 5.7.23. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 51: Mem] Key - Alarm Memory Display
This indicator is not alight when there is no 230 VAC power supply voltage and system is powered by backup battery only. “StayD” (STATUS) INDICATOR 8.1.8. Indicator is on when all zones are closed and system is ready to be armed. “OFF” INDICATOR 8.1.9. Indicator is on if the system is disarmed. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 52: Arm", "Sleep" And "Stay" Indicators
Enter a 4-digit or 6-digit user access code. Stay and Sleep arming can also be activated using 24-hour timer or One-Touch arming. Press and hold the [STAY] key or the [SLEEP] for 3 seconds to arm the system. _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 53: Disarming & Deactivating An Alarm
8.7. PROGRAMMABLE OUTPUT CONTROL The programmable output (PGM) on the GsmAlarm-500E can be made to activate by a command from the keypad. This output can be used for operating other devices such as; garage door opener, special lighting or door strikes. -
Page 54: Remote Arming & Disarming
System can be configured to arm and disarm by short, free call (see Chapter 5.3.2.5). In order to to arm the system, user calls GsmAlarm-500E number and, hearing the first signal, cancels the call. In this case there is no exit delay, the alarm system is activated immediately. After the armed mode is on, user receives a short confirmation call or SMS. -
Page 55: System Operation In Alarm State
S Y S T E M C O N T R O L 11. SYSTEM OPERATION IN ALARM STATE In the case of trespass of the protected area GsmAlarm-500E, depending on the programmed system operation algorithm, switches the siren on, calls and sends SMS messages to five users (ALRNR1- ALRNR5). -
Page 56: Gsm Jamming Detection
5.3.2 or 5.7.17), the siren is activated upon detection of the jamming signal, and the user is informed thereof by an SMS message about it after clearing of GSM jamming signal. Siren operates with interruptions. The message indicates the jamming onset time: GSM Jamming detected! Time: 08:55 _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00... -
Page 57: System Control Using Dtmf And Sms Commands
2-digit command is entered by pressing the key [*]. If the instruction is completed, user hears three tone confirmation signals. Speech mode can be activated in two ways: user answers when GsmAlarm-500E calls, or user calls and waits for GsmAlarm-500E to answer (3-4 call signals). - Page 58 IP address and connection port number. APN: GPRS access point name programming. APLOG: Programming of GPRS access point login name. APPASS: Programming of GPRS access point login password. PORT: GPRS access port number programming _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00...
- Page 59 SCON Switch on SmartCloud mode. SCOFF Switch off SmartCloud mode. SCPASS Receive SMS with the device ID and SmartCloud server login password. SCPASS: Change SmartCloud server login password. SMS instructions, for system programming and diagnostics _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00...
-
Page 60: Smartcloud Server
Save data into the device. Create an account on web page smartcloud.eltech.lt. Once you have an account, register one or more GsmAlarm devices. Create your own device name. Device identification number and login password are visible in the program GAprog field "SmartCloud server”. -
Page 61: Warranty
GSM network services, coverage and functioning. GsmAlarm-500E system provided with 36 months warranty. Warranty period starts with purchase date. If there are no purchasing documents, period counted starting from system manufacturing date (dated on security system identification label). Warranty is not valid if system: is reconstructed;... -
Page 62: Technical Characteristics
It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authorization by “UAB ELEKTRONINES TECHNOLOGIJOS”. Manufacturer reserves the right to update or modify this document and/or related products without a warning. Copyright © ELEKTRONINES TECHNOLOGIJOS All rights reserved http://www.eltech.lt _________________________________________________________________________________ GsmAlarm-500E Software ver. 2.00...
