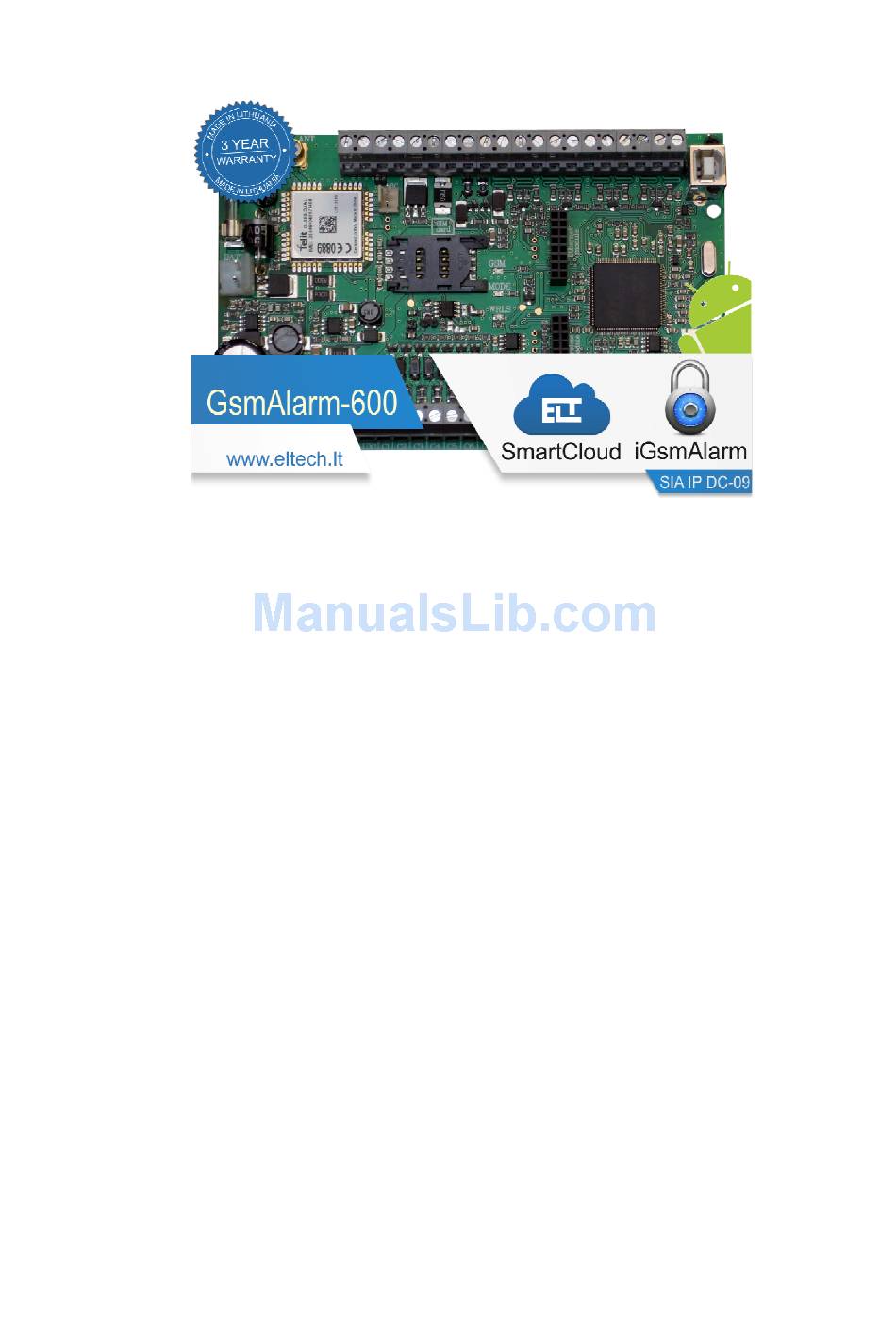

GSM ALARM AND REMOTE CONTROL SYSTEM
GsmAlarm-600 (V1.07)
FEATURES
• The user is called upon triggering of the alarm and is informed by a voice message which
sensor has tripped and how many times.
• 16 inputs. Up to 32 zones.
• Up to 64 zones, using wireless detectors.
• 7 programmable low current outputs and one siren output.
• 5 users are notified.
• 20 programmable keypad access codes or iButton keys.
• Automated remote control using up to 250 numbers Caller ID recognition without call cost.
• Possibility to transfer data to alarm monitoring station by SIA DC-09 IP protocol (via GPRS
channel), data encryption by AES128, AES196 or AES256 algorithm.
• Possibility to transfer data to alarm monitoring station using the Contact ID protocol
through GSM (voice call).
• Possibility to connect to SmartCloud server. Monitoring and control of the system can be
performed from any computer or smart phone using a standard web browser.
• Remote control using a mobile phone keypad (through DTMF tones) and SMS.
• GSM JAMMING detection).
• 24 hour timer.
• Two partial arming modes (STAY and SLEEP).
• Possibility to divide the system into two independent partitions.
• Option to connect an external microphone.
• 16 temperature, humidity, 4-20 mA and other analogue sensors connection availability.
• Possibility to connect up to 16 temperature sensors for temperature measurement.
• Ability to enter zone/partition names and their temperatures by means of K32LCD keypad.
• Possibility to connect up to 4 keypads.
• Info-carrying SMS showing state of each sensor, power supply voltage, GSM signal strength.
• Remote diagnostic, programming and firmware upgrade over GPRS.
• Diagnostic, programming and firmware upgrade via USB connection.
• Integrated dual-band GSM module.
• Wide operating temperature range: -30 ... +65ºC.
• Cheap maintenance
_________________________________________________________________________________
GsmAlarm-600
Software Ver. 1.07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GsmAlarm-600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for eltech GsmAlarm-600

  • Page 1 GSM ALARM AND REMOTE CONTROL SYSTEM GsmAlarm-600 (V1.07) FEATURES • The user is called upon triggering of the alarm and is informed by a voice message which sensor has tripped and how many times. • 16 inputs. Up to 32 zones.
  • Page 2: Table Of Contents

    5.3.1.3. Parameter P - Dividing System into Two Partitions and Partial Arming Modes STAY and SLEEP. Tamper Recognition ................25 5.3.2. Programming of Outputs C1-C7, BELL (C8) parameters ..........25 5.3.2.1. Outputs C1-C8 (BELL) operating modes ..............26 _________________________________________________________________________________ GsmAlarm-600 Software Ver. 1.07...
  • Page 3 5.8. Programming iButton Keys ....................50 5.9. Programming and Diagnostics Over the Internet ..............50 6. Resetting system settings to factory defaults ................52 6.1. Manufacturer Programmed Parameters ................. 52 7. Data Transfer to Alarm Monitoring Station ................54 _________________________________________________________________________________ GsmAlarm-600 Software Ver. 1.07...
  • Page 4 15. System Control Using DTMF and SMS Commands ............. 66 16. SmartCloud Server ......................... 69 16.1. Settings and Activation ....................... 69 17. Warranty ..........................70 18. Technical Characteristics ......................71 19. Mounting Holes ........................73 _________________________________________________________________________________ GsmAlarm-600 Software Ver. 1.07...
  • Page 5: General Information

    Open circuit breaker must have a gap between connections of more than 3mm and the disconnection current 5A System GsmAlarm-600 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel. There are no...
  • Page 6: Package Content

    If you use I security class computer for setting the parameters it must be connected to earth Remote control and monitoring device GsmAlarm-600 has built-in radio transmitter operating on GSM900 and GSM1800 networks. Do not use the device where it can cause interferences and danger.
  • Page 7: Introduction

    Up to 4 Paradox K636, K10V/H (MG10LEDV/H), K32 (MG32LED), K32LCD (MG32LCD), TM50 keypads can be connected to GsmAlarm-600. By using the keypad users can arm or disarm the system and configure system parameters. Following keypad LED indicators you can determine protected unit state, system mode etc.
  • Page 8: Connector Functionality

    CARD SLOT CONNECTOR RESET ~ AC ~ AUX1 GsmAlarm-600 Connection terminals and LED indicators 2.1. ZONE INPUT TERMINALS Z1 - Z16 Inputs Z1-Z16 are used to connect alarm detectors or temperature sensors KTY81-110 (PHILIPS). The inputs can operate in EOL or ATZ mode (see. Ch.
  • Page 9: Programmable Output Terminals C1 - C7

    2.6. AC POWER TERMINALS Use a 16-24 VAC transformer with a minimum 40 VA rating to supply AC power to the GsmAlarm-600. 2.7. BATT CONNECTOR Use this connector to connect the backup battery. Max capacity of the backup battery is 7 Ah. Voltage: 12 VDC.
  • Page 10: Jumper Can Load

    Max protection detectors quantity: 64. Max temperature and humidity sensors quantity: 3. The modules are no included with GsmAlarm-600 and are acquired separately. For more information about the module WLM-600-433 installation and configuration you will find in the module user's manual.
  • Page 11: Led Indicators

    System is in alarm state a second. Blinking very rapidly for 2-3 sec. SMS instruction or DTMF command receipt confirmation. 3.3. WRLS: WIRELESS INDICATOR Indicator state Explanation Blinks periodically. Data are received from wireless sensors. _______________________________________________________________________________ GsmAlarm-600 Prog. Ver. 1.07...
  • Page 12: Installation

    IN S T A L L A T IO N INSTALLATION 4.1. GENERAL INSTALLATION INSTRUCTIONS System should be assembled in metal housing 7/TRP40 as recommended _______________________________________________________________________________ GsmAlarm-600 Prog. Ver. 1.07...
  • Page 13 (VF230-AC) should be installed into the power supply at the short-circuit room. The dividing gap between the disconnection terminals should be at least 3mm. Ground terminal of the GsmAlarm-600 central unit is connected to the functional ground terminal of the metal box.
  • Page 14: Wiring Diagrams

    A SIM card needed for GsmAlarm-600 operating, you may acquire it from any GSM service provider. Before inserting SIM card into GsmAlarm-600 SIM card slot set PIN code request off. It can be performed simply inserting SIM card into any standard mobile phone and following certain phone user manual instructions.
  • Page 15: System With Ibutton Access Control Or On/Off Switch

    If the system is to be controlled by a switch, enable control by a switch (use GAprog application: General parameters->Control->Switch) . The siren is controlled by the „minus“ signal: the output in the active state is connected with the ground conductor (GND). _______________________________________________________________________________ GsmAlarm-600 -11- Prog. Ver. 1.07...
  • Page 16: Outputs C1 - C7 Wiring Diagrams

    The recommended schemes allow disconnection of the power supply for 5 seconds by simultaneously pressing keypad keys CLEAR and ENTER. Sensor power supply can be reset by the SMS or DTMF command. _______________________________________________________________________________ GsmAlarm-600 -12- Prog. Ver. 1.07...
  • Page 17 Out C6 M02 T00 Auxiliary work mode LED indicator (operates together with the indicator „MODE“). Out C7 M80 T00 Auxiliary buzzer. BELL (C8) Siren M06 T02 Siren (operates for 2 minutes). Manufacturer-programmed output modes _______________________________________________________________________________ GsmAlarm-600 -13- Prog. Ver. 1.07...
  • Page 18: Ways To Connect Alarm Zones Z1 - Z16

    [373] to 01 using keyboard (see Ch. 5.7.30) or using GaProg application (System Settings -> Zones -> Mode AX -> 1k-2.2k swap). GsmAlarm-600 has 16 inputs Z1...Z16, corresponding to the zone numbers Z01...Z16. If 16 zones are sufficient for protection of the object, the wiring diagrams 1, 2, 3 or 4 may be deployed.
  • Page 19: Wired Sensor Connection

    0.5 mm². Shield is connected to ground wire only in one end, close to GsmAlarm-600 board. Use 2 pins terminal block with a fixing hole for temperature sensor fastening. Parameter “A” must be changed in order to activate temperature measurement mode. (see Ch.
  • Page 20: Environmental Humidity Sensors

    It is recommended to use shielded, two-core, 0.5 mm² cable for connection of sensors. The ground- wired shield is connected only at one end, to the GsmAlarm-600 board. The 4-20 mA mode is activated by the GaProg for the corresponding zone (zone operating mode: measurement, sensor type: 4-20 mA).
  • Page 21: User Configuration Measurement Mode

    (see section 4.3.2). GsmAlarm-600 input equivalent scheme is shown in section 2.1. Maximum measured voltage: 2.6 V. If the sensor generates a higher voltage, use a divider of two resistors.
  • Page 22: Programming

    If only one user exists, he must be programmed under ALRNR1. GsmAlarm-600 will send SMS messages to this specific user in case of main power supply loss or if an unknown number calls the system. If the system is armed or disarmed with the single touch of the keypad or by turning the switch ON/OFF (if the keypad is not used) control dials and SMS messages are also directed to the first user.
  • Page 23: Programming With Standard Mobile Phone

    ALRNR1 and corresponding phone number. We recommend enter the number with international code. (E.g. +370...). If GsmAlarm-600 is used for gate control, number of extra user numbers can be as large as fits into the SIM card (up to 250). Any name can be assigned to extra user.
  • Page 24 A L R N R 1 : + 3 7 0 6 1 2 3 4 5 6 7 8 9 Receipt and decrypting of the SMS by GsmAlarm-600 is confirmed by blink of indicator MODE. The phone, which has sent the programming SMS, immediately receives a confirming SMS with programmed numbers..
  • Page 25: Programming System Parameters With Sms

    SMS with corrected parameters back to GsmAlarm-600. 5.3.1. PROGRAMMING ZONES Z1-Z64 In order to receive SMS with zone Z1 – Z32 parameters, send GsmAlarm-600 the following SMS: A A A A A A A A Z P A R A M 1 In order to receive SMS with zone Z33 –...
  • Page 26 Possible values: -99 ºC ... 99 ºC. Zone_1, Zone_2, Zone_3, Zone_4 – zone names, which are seen in the SMS after alarm triggering. User can change the name of zone under his own discretion. Maximum number of name characters: _______________________________________________________________________________ GsmAlarm-600 -22- Prog. Ver. 1.07...
  • Page 27: Parameter A - Input Triggering Conditions

    2) Follow zone. After violation of this zone alarm goes on immediately, if other zone with delay isn‘t violated. If firstly zone with delay is violated (for example, doors are opened), “follow” zone receives _______________________________________________________________________________ GsmAlarm-600 -23- Prog. Ver. 1.07...
  • Page 28 . Important: alarm monitoring station is informed when data transfer to monitoring station is turned on (see Ch. 7.3), number X is higher than 0 and number Y isn’t equal to 9. _______________________________________________________________________________ GsmAlarm-600 -24- Prog. Ver. 1.07...
  • Page 29: Parameter P - Dividing System Into Two Partitions And Partial Arming Modes Stay And Sleep. Tamper Recognition

    Example: the number Y must be 7 (1+2+4=7) to activate all functions. 5.3.2. PROGRAMMING OUTPUTS C1-C7, BELL (C8) In order to receive SMS with output and common system parameters, send GsmAlarm-600 the following SMS: A A A A A A A A C P A R A M If SMS password deactivated (see.
  • Page 30: Outputs C1-C8 (Bell) Operating Modes

    Output state depends on the state of zone Z2. * Output state depends on the state of zone Z3. * Output state depends on the state of zone Z4. * Output state depends on the state of zone Z5. * _______________________________________________________________________________ GsmAlarm-600 -26- Prog. Ver. 1.07...
  • Page 31 Output state depends on the state of zone Z53. * Output state depends on the state of zone Z54. * Output state depends on the state of zone Z55. * Output state depends on the state of zone Z56. * _______________________________________________________________________________ GsmAlarm-600 -27- Prog. Ver. 1.07...
  • Page 32: Outputs C1-C8 (Bell) Operation Modes. Parameter V

    * In Siren mode (M06, M07) the output operating time can be programmed only in minutes 5.3.3. PROGRAMMING OF COMMON SYSTEM PARAMETERS E, F, G, H, J, K, L, P, T In order to receive SMS with common parameters, send GsmAlarm-600 the following SMS: A A A A A A A A S P A R A M If SMS password deactivated (see.
  • Page 33: Parameter E - The Way User Is Informed About Arming/Disarming

    User is informed with a short call. User is informed with a short call User is informed with a short call User is informed with a short and SMS message. call and SMS message. Manufacturer-programmed value: E20. _______________________________________________________________________________ GsmAlarm-600 -29- Prog. Ver. 1.07...
  • Page 34: Parameter F - System Response To Incoming Calls And Number Of Calls In Alarm State

    ALRNR users (not only to ALRNR1). Manufacturer-programmed value: L32. Important! To activate several functions the total of numbers should be used. Example: To activate all three functions the digit X should be 7 (1+2+4=7). _______________________________________________________________________________ GsmAlarm-600 -30- Prog. Ver. 1.07...
  • Page 35: Parameter P - Splitting Of The System Into 2 Partitions. 24 Hour Sabotage Detection

    R P A R A M GsmAlarm-600 sends SMS message with available names of the partitions: AAAAAAAA R1: PARTITION1, R2: PARTITION2, After correction of the names, SMS message is sent back to GsmAlarm-600. Maximum number of the name’s characters is 20. 5.3.5. SETTING SYSTEM CLOCK System‘s clock should be set only if weekly timer function is used.
  • Page 36: Programming Weekly Timer

    For the system to activate PGM output C2 on 12:30, deactivate on 13:00 and to send SMS message, informing about the state of outputs on 13:01, following SMS has to be sent to GsmAlarm-600: A A A A A A A A...
  • Page 37: Timer Instructions

    Requests to send SMS with open zones only. Requests to send SMS with temperature values only. Requests to send SMS message with information about state of protected zones. Note! Command 89 is sending message to alarm monitoring station only. _______________________________________________________________________________ GsmAlarm-600 -33- Prog. Ver. 1.07...
  • Page 38: Programming The Description Of Input Zone State (Alarm And Ok)

    AAAAAAAA U01: User 1, U02: User 2, U03: User 3, U04: User 4, U05: User 5, U06: User 6, U07: User 7, A corrected SMS message is sent to GsmAlarm-600. The user receives a confirmation SMS message with the user names.
  • Page 39: Programming The System Using The Paradox Keypad

    Pulse counting mode or hysteresis of zones Z1-Z64. I (Z01-Z64) 701-720 Timer events. STIMER 801-864 Attribution of the zone indicated on the keypad to the zone of the central control unit. * parameters if programming by SMS message. _______________________________________________________________________________ GsmAlarm-600 -35- Prog. Ver. 1.07...
  • Page 40: Programming The Access Codes

    14 User Access Code ALRNR4 15 User Access Code ALRNR5 16 User Access Code. ALRNR1 17 User Access Code. ALRNR2 18 User Access Code. ALRNR3 19 User Access Code. ALRNR4 20 User Access Code. ALRNR5 _______________________________________________________________________________ GsmAlarm-600 -36- Prog. Ver. 1.07...
  • Page 41: User Access Code Functionality

    The closing code transmission takes place after the exit delay time. Therefore, if the system is armed and disarmed before the expiry of the exit time, no transmission will take place. Possible values: 00 – 99 seconds. Address Parameter Exit delay time. Manufacturer-programmed exit delay time: 20 seconds. _______________________________________________________________________________ GsmAlarm-600 -37- Prog. Ver. 1.07...
  • Page 42: Zones Z1-Z64 Entry Delay Time Or Triggering Temperature (Parameter T)

    Zone Z30 „T“ parameter Zone Z62 „T“ parameter Zone Z31 „T“ parameter Zone Z63 „T“ parameter Zone Z32 „T“ parameter Zone Z64 „T“ parameter Manufacturer-programmed time for zone Z1: 20 seconds, zones Z2-Z64: 00 seconds. _______________________________________________________________________________ GsmAlarm-600 -38- Prog. Ver. 1.07...
  • Page 43: Zones Z1-Z64 Input Triggering Conditions (Parameter A)

    Zone Z61 „A“ parameter Zone Z30 „A“ parameter Zone Z62 „A“ parameter Zone Z31 „A“ parameter Zone Z63 „A“ parameter Zone Z32 „A“ parameter Zone Z64 „A“ parameter Manufacturer-programmed values for zones Z1-Z16: 30, Z17-Z64: 00. _______________________________________________________________________________ GsmAlarm-600 -39- Prog. Ver. 1.07...
  • Page 44: Zones Z1-Z64 System State After Input Triggering (Parameter M)

    Zone Z61 „M“ parameter Zone Z30 „M“ parameter Zone Z62 „M“ parameter Zone Z31 „M“ parameter Zone Z63 „M“ parameter Zone Z32 „M“ parameter Zone Z64 „M“ parameter Manufacturer-programmed values for all zones: 70 _______________________________________________________________________________ GsmAlarm-600 -40- Prog. Ver. 1.07...
  • Page 45: Partial Arming Modes. Sabotage Detection Mode. (Parameter P)

    Zone Z61 „P“ parameter Zone Z30 „P“ parameter Zone Z62 „P“ parameter Zone Z31 „P“ parameter Zone Z63 „P“ parameter Zone Z32 „P“ parameter Zone Z64 „P“ parameter Default values for all zones programmed by manufacturer: 10. _______________________________________________________________________________ GsmAlarm-600 -41- Prog. Ver. 1.07...
  • Page 46: Pulse Counting Mode Or Temperature Hysteresis (Parameter I)

    Zone Z61 „I“ parameter Zone Z30 „I“ parameter Zone Z62 „I“ parameter Zone Z31 „I“ parameter Zone Z63 „I“ parameter Zone Z32 „I“ parameter Zone Z64 „I“ parameter The factory default values for all zones: 02. _______________________________________________________________________________ GsmAlarm-600 -42- Prog. Ver. 1.07...
  • Page 47: Zone Response Time

    Zone Z61 quick-acting Response time of zone Z30 Zone Z62 quick-acting Response time of zone Z31 Zone Z63 quick-acting Response time of zone Z32 Zone Z64 quick-acting The factory default values for all zones: 05 (500ms). _______________________________________________________________________________ GsmAlarm-600 -43- Prog. Ver. 1.07...
  • Page 48: Operating Time Of Outputs C1-C7, Bell(C8)

    Time units of output C6 and inversion. Time units of output C7 and inversion. Time units of output C8 (BELL) and inversion. Manufacturer-programmed output modes: C1, C2, C3, C4, C6, C7,C8 - 00, C5- 01. _______________________________________________________________________________ GsmAlarm-600 -44- Prog. Ver. 1.07...
  • Page 49: Parameter E - The Way User Is Informed About Arming/Disarming

    5.7.16. PARAMETER “H”: DATA TRANSFER TO THE ALARM MONITORING STATION This parameter is used for setting mode of data transfer to the alarm monitoring station. This parameter is described in Chapter 7.3 in more detail. Address Parameter System parameter „H“. Manufacturer-programmed value: 00. _______________________________________________________________________________ GsmAlarm-600 -45- Prog. Ver. 1.07...
  • Page 50: Parameter J - System Response To Intentional Gsm Jamming

    When a close code is entered, delay time count can be indicated by short keypad beeps, repeating each second. Address Param. value Explanation of operation Audible indication OFF Audible indication ON Manufacturer-programmed value: 01. _______________________________________________________________________________ GsmAlarm-600 -46- Prog. Ver. 1.07...
  • Page 51: Assigning Keypad Zones

    Important! Use of partitions Z17 ... Z32 for the keypad partition is recommended to efficiently use partition inputs. After assigning zone to the keypad, the corresponding input zone won’t be operating on the GsmAlarm-600 board. 5.7.23. SETTING SYSTEM CLOCK To set system clock and date: •...
  • Page 52: Programming Contact Id User Account Number

    Temperature measured on each zone can be adjusted by changing the address [171] (zone Z1) - [176] (zone Z6) parameter. Zero correction matches number 20. Increasing this number, the temperature value increases, by reducing – the temperature value decreases. Correction step: 0.3 ºC. _______________________________________________________________________________ GsmAlarm-600 -48- Prog. Ver. 1.07...
  • Page 53: The Way User Is Informed About Stay Or Sleep Mode Activation

    K32 (thirty two zones) and the quantity of zones exceeds 32. 5.7.30. LOAD RESISTORS INVERSION IN ATZ MODE Address Parameter value Purpose Resistors wiring diagram corresponds to the chapter 4.2.4 Resistors 1k and 2.2k are swapped. Manufacturer-programmed value: 00. _______________________________________________________________________________ GsmAlarm-600 -49- Prog. Ver. 1.07...
  • Page 54: Programming Ibutton Keys

    A A A A A A A A A P N A P N The massage returned to the user by GsmAlarm-600 contains the access point name, the login name and the login password: AAAAAAAA APN:internet.tele2.lt, APLOG:wap, APPASS:wap, Adjust the access point name, the login name and the login password as required. In Lithuanian networks OMNITEL and BITE GSM, all fields may be blank (comma after colon).
  • Page 55 30 seconds. The computer IP address that was included in the SMS message from the user is automatically saved in the GsmAlarm-600 memory. Later, the command CONNECT is sufficient to make the GSM module to connect to the same IP address:...
  • Page 56: Resetting System Settings To Factory Defaults

    [633] I02 [133] T00 Zone34 [334] [434] M70 [534] P10 [634] I02 [134] T00 Zone35 [335] [435] M70 [535] P10 [635] I02 [135] T00 Zone36 [336] [426] M70 [536] P10 [636] I02 [136] T00 _______________________________________________________________________________ GsmAlarm-600 -52- Prog. Ver. 1.07...
  • Page 57 [465] [466] [166] [365] [370] [ - ] [369] [368] [100] AAAAAAAA : 0000 (000000) Administrator access code : 1234 (123456) First user access code [Addr.] - parameter address when programming with the keypad. _______________________________________________________________________________ GsmAlarm-600 -53- Prog. Ver. 1.07...
  • Page 58: Data Transfer To Alarm Monitoring Station

    GPRS channel, and if fails, are attempted to make a call and transmit data by the audio channel. GsmAlarm-600 transfers data about violation and restoring of alarm zone, arming and disarming, power supply fault, malfunction of the backup battery, malfunction of the fire zone. Test messages can be sent on certain time.
  • Page 59: Audio Channel Settings

    GPRS access point settings can be received at GSM service operator. In most cases, all access point settings can be left blank. If data encryption is used, the encryption key can be entered using GAprog program. GsmAlarm-600 supports AES128, AES196 and AES256 encryption algorithm.
  • Page 60: Modes Of Data Transfer To The Alarm Monitoring Station

    Data transfer via GPRS channel is on. * In order that GsmAlarm-600 would send test message to the alarm monitoring station once per day, it is necessary to set system clock (see Ch. 5.3.4) and program a timer (see Ch. 5.3.5).
  • Page 61: Contact Id Protocol Codes

    P R O G R A M M IN G 7.4. CONTACT ID PROTOCOL CODES GsmAlarm-600 for data transfer is using following standard CONTACT ID protocol event codes. It is impossible to change codes or program new codes. CID code Transferred information Panic alarm: silent alarm.
  • Page 62: Voice Messages, Preparation Of Microsd Card

    The voice message function requires presence of a MicroSD card. Any MicroSD card of 1 GB, 2 GB, 4 GB or 8 GB capacity may be used. If the card was purchased together with GsmAlarm-600, no additional system configuration is required.
  • Page 63: System Control Using The Keypad

    * * System‘s clock should be set only system timer function is used. System clock deregulates in case main power supply and backup battery are disconnected. System clock setting with SMS message directions described in Chapter 5.3.4. System clock setting with keypad described in Chapter 5.7.22. _______________________________________________________________________________ GsmAlarm-600 -59- Prog. Ver. 1.07...
  • Page 64: Mem] Key - Alarm Memory Display

    9.1.8. “StayD” (STATUS) INDICATOR Indicator is on when all zones are closed and system is ready to be armed. 9.1.9. “OFF” INDICATOR Indicator is on if the system is disarmed. _______________________________________________________________________________ GsmAlarm-600 -60- Prog. Ver. 1.07...
  • Page 65: Arm, Sleep And Stay Indicators

    24h mode. If the system is divided into two partitions, the corresponding code enables only one partition or both of them at once. Setup of control codes is described in Ch. 5.7.2. _______________________________________________________________________________ GsmAlarm-600 -61- Prog. Ver. 1.07...
  • Page 66: Disarming & Deactivating An Alarm

    9.7. PROGRAMMABLE OUTPUT CONTROL The programmable output (PGM) on the GsmAlarm-600 can be made to activate by a command from the keypad. This output can be used for operating other devices such as; garage door opener, special lighting or door strikes.
  • Page 67: Remote Arming & Disarming

    System can be configured to arm and disarm by short, free call (see Chapter 5.3.3.2). In order to arm the system, user calls GsmAlarm-600 number and, hearing the first signal, cancels the call. In this case there is no exit delay, the alarm system is activated immediately. After the armed mode is on, user receives a short confirmation call or SMS.
  • Page 68: System Operation In Alarm State

    S Y S T E M C O N T R O L 12. SYSTEM OPERATION IN ALARM STATE In the case of trespass of the protected area GsmAlarm-600, depending on the programmed system operation algorithm, switches the siren on, calls and sends SMS messages to five users (ALRNR1- ALRNR5).
  • Page 69: Gsm Jamming Detection

    Ch. 5.3.2 or 5.7.17), the siren is activated upon detection of the jamming signal, and the user is informed thereof by an SMS message about it after clearing of GSM jamming signal. Siren operates with interruptions. The message indicates the jamming onset time. GSM Jamming detected! Time: 08:55 _______________________________________________________________________________ GsmAlarm-600 -65- Prog. Ver. 1.07...
  • Page 70: System Control Using Dtmf And Sms Commands

    2-digit command is entered by pressing the key [*]. If the instruction is completed, user hears three tone confirmation signals. Speech mode can be activated in two ways: user answers when GsmAlarm-600 calls, or user calls and waits for GsmAlarm-600 to answer (3-4 call signals).
  • Page 71 Additional user number programming instruction. Only the output C6 is controlled by this number (for gate or fence control). ADDNR-C7: Additional user number programming instruction. Only the output C7 is controlled by this number (for gate or fence control). _______________________________________________________________________________ GsmAlarm-600 -67- Prog. Ver. 1.07...
  • Page 72 Switch on SmartCloud mode with PGMs control function. SCON3 Switch on SmartCloud mode with full control function. SCOFF Switch off SmartCloud mode. SCPASS Receive SMS with the device ID and SmartCloud server login password. SCPASS: Change SmartCloud server login password. _______________________________________________________________________________ GsmAlarm-600 -68- Prog. Ver. 1.07...
  • Page 73: Smartcloud Server

    Settings-> GPRS”. Under the "Connection Settings" select "SmartCloud mode”. The "SmartCloud server” field shows connection to the server settings. The server address must be sc.eltech.lt, port: the 47003. It is recommended to change the password. Device identification number (ID) is not changeable. If you want to disable PGM outputs managing or system arming/disarming from SmartCloud, uncheck the appropriate boxes.
  • Page 74: Warranty

    GSM network services, coverage and functioning. GsmAlarm-600 system provided with 36 months warranty. Warranty period starts with purchase date. If there are no purchasing documents, period counted starting from system manufacturing date (dated on security system identification label). Warranty is not valid if system: is reconstructed;...
  • Page 75: Technical Characteristics

    It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authorization by “UAB ELEKTRONINES TECHNOLOGIJOS”. Manufacturer reserves the right to update or modify this document and/or related products without a warning. Copyright ©2016 ELEKTRONINĖS TECHNOLOGIJOS http://www.eltech.lt All rights reserved _______________________________________________________________________________ GsmAlarm-600 -71- Prog. Ver. 1.07...
  • Page 76 Notes _______________________________________________________________________________ GsmAlarm-600 -72- Prog. Ver. 1.07...
  • Page 77: Mounting Holes

    M O U N T IN G H O L E S _______________________________________________________________________________ GsmAlarm-600 -73- Prog. Ver. 1.07...
