Summary of Contents for ALLNIC AUDIO M-3000 MK 3

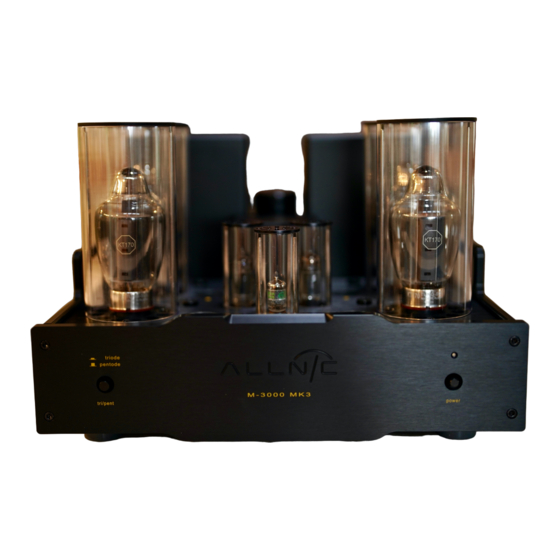

- Page 1 ALLNIC AUDIO M-3000 MK 3 KT170 MONOBLOCK POWER AMPLIFIER OWNER’S MANUAL...
- Page 2 ALLNIC AUDIO M-3000 MK 3 MONOBLOCK AMPLIFIER Thank you for purchasing the Allnic Audio M-3000 MK 3 Monoblock Power Amplifier. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high-quality device, will be rewarded by its excellent operation for years to come.
-
Page 3: Table Of Contents
TUBES AND TUBE BIAS ARRANTY PECIFICATIONS FIGURES Please read about SAFETY before you attempt to use the M-3000 MK 3 - we care about our customers and the equipment, and we want you to enjoy this product for a long time! -
Page 4: Introducing The M-3000 Mk
The MK 3 has the following features: • 240 watts of high-power output in beam tetrode mode, 120 watts in triode. The M-3000 MK 3 is a parallel push- pull, triode/tetrode switchable power amplifier. -
Page 5: Monoblock Power Amplifier
M-3000 MK 3 in your system. Be sure the M-3000 MK 3 is labeled for the AC voltage of your location. If it is not, DO NOT connect it to your AC outlet. Please contact your Allnic dealer. -
Page 6: Cleaning
INITIAL SET-UP LOCATION, LOCATION, LOCATION Like all audio products using tubes, the Allnic Audio M-3000 MK 3 needs to be placed on a solid stand in a location that provides good air circulation around, above and below the monoblock. •... -
Page 7: Speaker Terminals
Once you have your M-3000 MK 3 in place and all connections have been made to your source(s) and preamplifier, you are ready to turn on the power for your M-3000 MK 3. Before you power up the M-3000 MK 3, though, be sure you have: •... -
Page 8: Operation
Triode to Tetrode operation. Press the mode selector button on the front panel (See Figure 4) down to have the M-3000 MK 3 operate in Triode mode; press the button again so it is in the raised position to have the M- 3000 MK 3 operate in Tetrode mode. -
Page 9: Warranty
Allnic representative. Allnic Audio and its authorized representatives are not liable in any way whatsoever for any injury or loss incurred by the user or for damage to the M-3000 MK 3, any of its parts, or tubes or replacement tubes resulting from the user changing or attempting to change tubes. - Page 10 SPECIFICATIONS FOR THE ALLNIC AUDIO M-3000 MK 3 KT170 MONOBLOCK POWER AMPLIFIER • • 240w (8Ω load, at 1KHz) Pentode Output Power: • >100w (8Ω load, at 1KHz) Triode • • 0.17% at 1KHz at 10w Distortion: • • 20Hz - 20KHz Flat Frequency Response: •...
-
Page 11: Figures
FIGURES Figure 4 – Front View... - Page 12 Figure 5 – Rear View...
- Page 13 Figure 6 – Top View...
