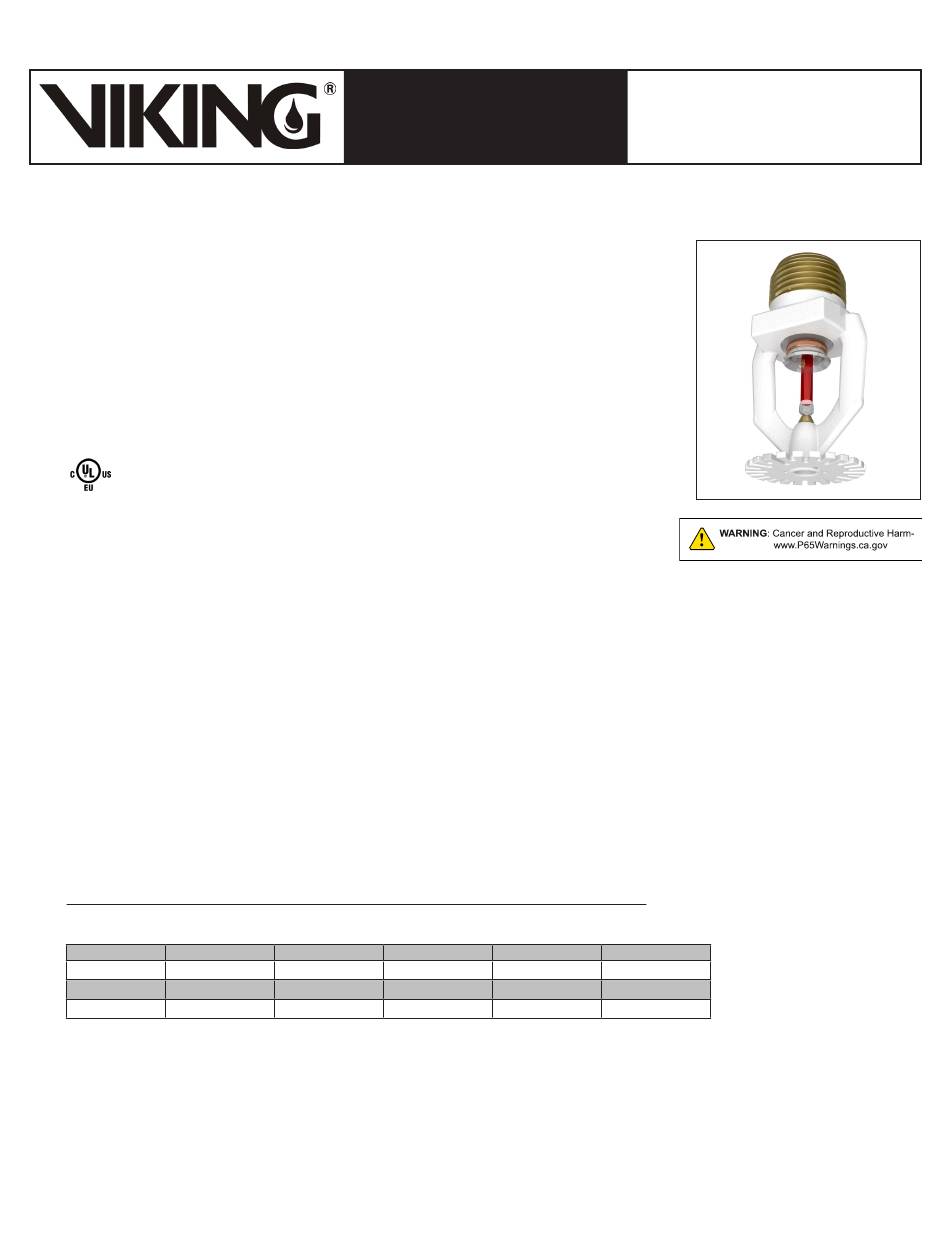

1. DESCRIPTION
Viking Freedom
Residential Pendent Sprinkler VK466 is a thermosensitive, glass-bulb
®
residential sprinkler available in several different finishes and temperature ratings to meet
varying design requirements. The Electroless Nickel PTFE (ENT) coating has been inves-
tigated for installation in corrosive atmospheres and is C-UL-US-EU Listed as corrosion
resistant as indicated in the Approval Chart. The orifice design, with a K-Factor of 5.2 (74.9
metric*), allows efficient use of available water supplies for the hydraulically designed fire-
protection system. The fast response type glass bulb and special deflector combine speed
of operation and area of coverage to meet residential sprinkler standards while being aes-
thetically pleasing.
2. LISTINGS AND APPROVALS
UL Listed (C-UL-US-EU): Category VKKW
UL Classified to: NSF/ANSI Standard 61, Drinking Water System Components
(MH48034)
Refer to the Approval Chart and Design Criteria for C-UL-US-EU Listing re-
quirements that must be followed.
3. TECHNICAL DATA
Specifications:
Available since 2006.
Minimum Operating Pressure: Refer to the Approval Chart.
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 1/2" (15 mm) NPT
Nominal K-Factor: 5.2 U.S. (74.9 metric*)
* Metric K-factor measurement shown is for when pressure is measured in Bar. When pressure is measured in kPa, divide the metric K-factor shown
by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Overall Length: 2-1/4" (58 mm)
Material Standards:
Frame Casting: Brass UNS-C84400 or QM Brass
Deflector: Brass UNS-C23000 or Phosphor Bronze UNS-C51000
Bulb: Glass, nominal 3 mm diameter
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with Polytetrafluoroethylene (PTFE) Tape
Compression Screw: Brass UNS-C36000
Pip Cap and Insert Assembly: Copper UNS-C11000 and Stainless Steel UNS-S30400
For ENT coated sprinklers: Belleville spring - Exposed, Screw and Pipcap - ENT plated.
Available Finishes and Temperature Ratings:
Finish
Brass
Suffix
Temperature
155 °F (68 °C)
Suffix
Ordering Information: (Refer to Table 1 and the current Viking price list.)
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
Form No. F_091406
Rev 01
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Chrome
White Polyester Black Polyester
A
F
175 °F (79 °C)
B
D
November 2022
TECHNICAL DATA
M-/W
M-/B
--
--
--
--
FREEDOM
RESIDENTIAL
®
PENDENT SPRINKLER
VK466 (K5.2)
ENT
JN
--
--
Replaces Form No. F_091406 Rev 19.1
(Updated Approvals.)
Page 1 of 5
