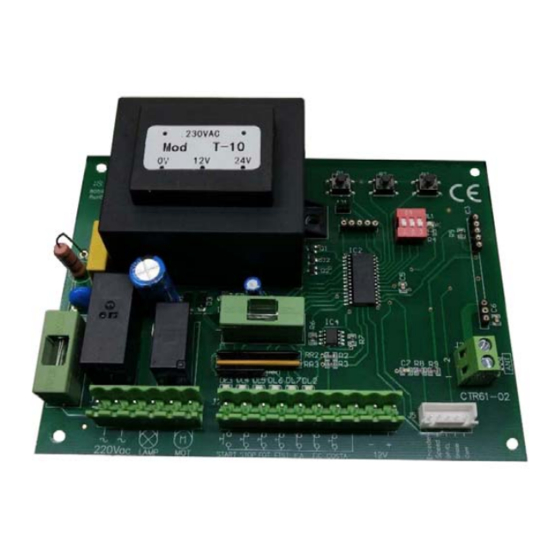

CTR61
MANUALE D'ISTRUZIONI
INSTRUCTIONS MANUAL
MANUEL D'EMPLOI
1

Advertisement

Table of Contents
loading

Summary of Contents for Leb Electronics CTR61

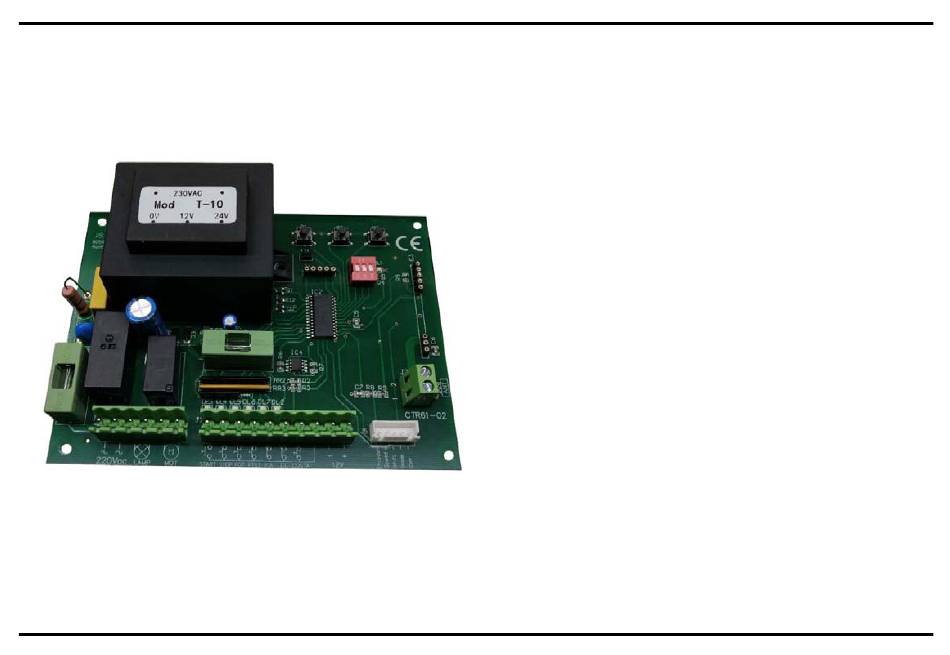

  • Page 1 CTR61 MANUALE D’ISTRUZIONI INSTRUCTIONS MANUAL MANUEL D’EMPLOI...
  • Page 2 ITALIANO ENGLISH FRANCAIS La casa costruttrice si riserva il diritto di apportare modifiche o miglioramenti al prodotto senza preavviso. Eventuali errori riscontrati nella presente edizione saranno corretti nella prossima. The manufacturer reserves the right to modify or improve the product without prior notice. Any inaccuracies or errors found in this manual will be corrected in the next edition.
  • Page 3: Table Of Contents

    ITALIANO INDICE GENERALE Manutenzione………………………………... Destinazione dell’apparecchiatura……….. Collegamenti elettrici……...……………….. Limitazioni d’uso…………………………….. Dichiarazione di conformità…………..…... Caratteristiche generali…………………….. Programmazione scheda………………….. Diagnostica…………….…………………..Funzionamento………………………………. Schema collegamenti….……………..…..Comandi…………………………………………………….. Dispositivi di sicurezza…………………………………….. Uscite………………………………………………………... Alimentazioni………………………………………………... Accessori………………………………………….. Segnalazioni ottiche………………………………………... Tasti programmazione..……………………………………. Fusibili di protezione……………………………………….. Dip switches e jumper…...………………………………... D.10 Logiche di funzionamento……………..………………….. D.11 Dati tecnici…………………………………………………..
  • Page 4: A Destinazione Dell'apparecchiatura

    ITALIANO A) Destinazione dell’apparecchiatura Quadro elettronico adibito al comando di 1 motore Brushless alimentato con tensione 230Vac destinato all’automazione di un cancello scorrevole. B) - Limitazioni d’uso Attenzione : Prima di mettere in servizio l’apparecchiatura elettronica assicurarsi che siano state rispettate le note di seguito riportate. Nota 1 - Leggere attentamente e per intero la documentazione tecnica che segue.
  • Page 5: C Caratteristiche Generali

    C) Caratteristiche generali La centralina CTR61 contiene un radioricevitore a 2 canali. Il ricevitore può memorizzare sino a 100 codici diversi di radiocomandi a Codice Fisso, Rolling Code o funzionanti in ambiente Secret Key. Il canale 1 del ricevitore agisce da Start, mentre il canale 2 agisce da Start pedonale.
  • Page 6: Uscite

    ITALIANO Costa (COSTA) Ingresso a cui va collegato un dispositivo che, in caso di urto contro un ostacolo, determina l’arresto del cancello e, dopo 1,5 sec., l’inversione di marcia per 2 sec. È possibile collegare coste di tipo resistivo (8K2) o con contatto elettrico N.C.. La scheda rileva automaticamente il tipo di costa collegata.
  • Page 7: Tasti Programmazione

    ITALIANO 7) Tasti programmazione P1 - Tasto per l’inserimento dei codici radiocomando in memoria P2 - Tasto per la cancellazione dei codici radiocomando in memoria P3 - Tasto per l’impostazione dei tempi di lavoro e pausa 8) Fusibili di protezione F1 - Fusibile di rete (2A) Sconnette l’apparecchiatura elettronica dalla tensione di rete in caso di cortocircuito o di anomalia nei consumi di corrente.
  • Page 8: Dati Tecnici

    ITALIANO 11) Dati tecnici Dimensioni scheda e Peso: 103 x 138 x 45 mm - 0,46 Kg Alimentazione generale: 230Vac + / - 10% Potenza assorbita a riposo: 1W circa Temperatura di funzionamento: da 0 a + 60 °C Alimentazione motore Brushless: 230Vac + / - 10% Alimentazione lampeggiatore: 230Vac 40 W max.
  • Page 9: Dichiarazione Di Conformità

    Quadro elettronico adibito al comando di un motore Brushless operante a 230Vac destinato all’automazione di un cancello scorrevole. Modello: CTR61 Norme applicate: EN 61000-6-3, EN 61000-6-1, EN 301489-1, EN 301489-3, EN 300220-2, EN 300220-1, EN 60950-1 Laboratorio di prova :...
  • Page 10: Diagnostica

    ITALIANO Impostazione tempo di Lavoro Sbloccare manualmente il cancello e posizionarlo a completa apertura. Bloccare il cancello e premere il tasto P3 per circa 3 sec. finché il Led DL1 non emette un breve lampeggio. Di seguito il Led DL1 si accende con luce fissa e il cancello chiude. A circa 50 cm dalla fine della corsa premere il tasto P3 ed attendere che il cancello raggiunga il finecorsa di chiusura.
  • Page 11: Schema Collegamenti

    ITALIANO L) SCHEMA COLLEGAMENTI...
  • Page 12 ENGLISH GENERAL INDEX Maintenance………………..………………... Equipment purpose………………………..Electric connections ……...……………….. Usage limitations……………………………. Declaration of conformity……...……..…... General features…………………………….. Card programming………………...……….. Diagnostics……...…………...……………... Working……………………………….………. Connections diagram..………………..…... Commands…………………………………..…………….. Safety devices……………………………………….…….. Outputs……………………………………………………... Power supply………………………………………..……... Accessories………………...…………………..………….. Optic signals ………………………………..……………... Programming keys ..………...……………………………. Protection fuses ………………….……………………….. Dip switches and jumper.………………………………... D.10 Working logics…………………………..…………………..
  • Page 13 ENGLISH A) Equipment purpose Electric board assigned to the control of 1 Brushless motor powered by 230Vac voltage, allotted to the automation of a sliding gate. B) - Usage limitations Warning: Before putting in use the electronic equipment make sure the following notes are respected. Note 1 - Carefully and thoroughly read the following technic documentation.
  • Page 14 C) General features The control board CTR61 contains a 2 channels radio receiver. The receiver can memorize up to 100 different codes of radio controls Fixed Code, Rolling Code or working in environment Secret Key. The channel 1 of radio receiver acts as Start, while the channel 2 acts as pedestrian Start.
  • Page 15 ENGLISH Safety rib (COSTA) Input to which to connect a device that, in case of impact against an obstacle, causes the gate stop and, after a 1,5 sec., gate reverse for 2 sec. It is possible to connect resistive-type safety rib (8K2) or with electric contact N.C.. Automatically the card detects the type of connected safety rib. When you wish to change safety rib type, you should take off power supply mains from the card and then give it again.
  • Page 16 ENGLISH 7) Programming keys P1 - Key for entering remote control codes in memory P2 - Key for cancelling remote control codes in memory P3 - Key for setting of work and pause times 8) Protection fuses F1 - Mains power fuse (2A) It disconnects the electronic unit from the mains power in case of short-circuit or electric current consumption anomalies.
  • Page 17 ENGLISH 11) Technical data Card dimensions and weight: 103 x 138 x 45 mm – 0,46 Kg Card power supply: 230Vac +/- 10% Stand-by power consumption: approx. 1W Operating temperature range: 0 to + 60 °C Brushless motor power supply: 230Vac +/- 10% Blinker power supply: 230 Vac 40W max.
  • Page 18 ENGLISH G) DECLARATION OF CONFORMITY Equipment description: Electronic board affected to the control of a Brushless motor working at 230Vac intended for the automation of a sliding gate. Model: CTR31 Applied rules: EN 61000-6-3, EN 61000-6-1, EN 301489-1, EN 301489-3, EN 300220-2, EN 300220-1, EN 60950-1 Test laboratory : NEMKO SPA Result: Positive...
  • Page 19 ENGLISH Work time set up Manually unblock the gate and place it fully opened. Block the gate and press the key P3 for about 3 sec. until the Led DL1 issues a short flash. Then the Led DL1 switches on with fixed light and the gate closes. At about 50 cm from the end of the stroke, press the P3 key and wait for the gate to reach the closing limit switch.
  • Page 20 ENGLISH L) Connections diagram...
  • Page 21 FRANCAIS INDEX GENERAL Entretien……………………………………..Destination de l’équipement……………... Connexions électriques...…………...…….. Limitations d’usage………………………... Déclaration de conformité …….……..…... Caractéristiques générales……………….. Programmation fiche………………...…….. Diagnostic…………….…………..………... Fonctionnement…………………………….. Schéma de liaison……..………..………... Commandes…………………………………………...….. Dispositifs de sécurité …………………………………..Sorties……………………………………………….……... Alimentations…………………………….………………... Accessoires……………………………….……………….. Signalisations optiques …………………………………... Touches programmation…………………………………. Fusibles de protection…………………………………….. Dip switches et jumper.…………………………………...
  • Page 22: A Destination De L'équipement

    FRANCAIS A) Destination de l’équipement Tableau électronique affiché à la commande de 1 moteur Brushless alimenté avec tension 230Vac destiné à l'automation d’une grille coulissante. B) - Limitations d’usage Attention : Avant de mettre en marche l’équipement électronique s’assurer que les notes ici-bas soient respectées. Note 1 - Lire attentivement et complètement la documentation technique suivante.
  • Page 23: C Caractéristiques Générales

    C) Caractéristiques générales La centrale CTR61 contient un radiorécepteur avec 2 canaux. Le récepteur peut mémoriser jusqu’à 100 codes divers de radiocommandes à Code Fixe, Rolling Code ou fonctionnant en milieu Secret Key. Le canal 1 du récepteur agit comme Start, tandis que le canal 2 agit comme Start piéton.
  • Page 24: Sorties

    FRANCAIS Barre palpeuse de sécurité (COSTA) Entrée à laquelle il faut brancher un dispositif qui, en cas de choc contre un obstacle, détermine l’arrêt de la grille et, après 1,5 sec., l’inversion de la marche pour 2 sec. C’est possible de brancher une barre palpeuse de type résistif (8K2) ou avec un contact électrique N.C.. La fiche relève automatiquement le type de barre palpeuse branchée.
  • Page 25: Touches Programmation

    FRANCAIS 7) Touches programmation P1 - Touche pour l’introduction des codes radiocommande en mémoire P2 - Touche pour l’effacement des codes radiocommande en mémoire P3 - Touche pour l’affichage des temps de travail et de pause 8) Fusibles de protection F1 –...
  • Page 26: Données Techniques

    FRANCAIS 11) Données techniques Dimensions et Poids: 103 x 138 x 45 mm - 0,46 Kg Tension d’alimentation: 230Vac + / - 10% Puissance électrique absorbée au repos: 1W environ Température de fonctionnement: de 0 à + 60 °C Alimentation du moteur Brushless: 230Vac + / - 10% Alimentation du clignotant: 230Vac 40W max.
  • Page 27: Déclaration De Conformité

    Description de l’équipement : Tableau électronique affiché à la commande d’un moteur Brushless marchant à 230Vac destiné à l’automation d’une grille coulissante. Modèle: CTR61 Normes appliquées: EN 61000-6-3, EN 61000-6-1, EN 301489-1, EN 301489-3, EN 300220-2, EN 300220-1, EN 60950-1 Laboratoire d’essais :...
  • Page 28: Diagnostic

    FRANCAIS Affichage temps de Travail Débloquer manuellement le portail et le placer en ouverture complète. Bloquer le portail et appuyer sur la touche P3 pour 3 sec. à peu près, jusqu’à quand le Led DL1 émet un court clignotement. Ensuite le Led DL1 s’allume avec lumière fixe et le portail se ferme. À environ 50 cm de la fin de la course, appuyer sur la touche P3 et attendre jusqu'à...
  • Page 29: Schéma De Liaison

    FRANCAIS L) Schéma de liaison...
