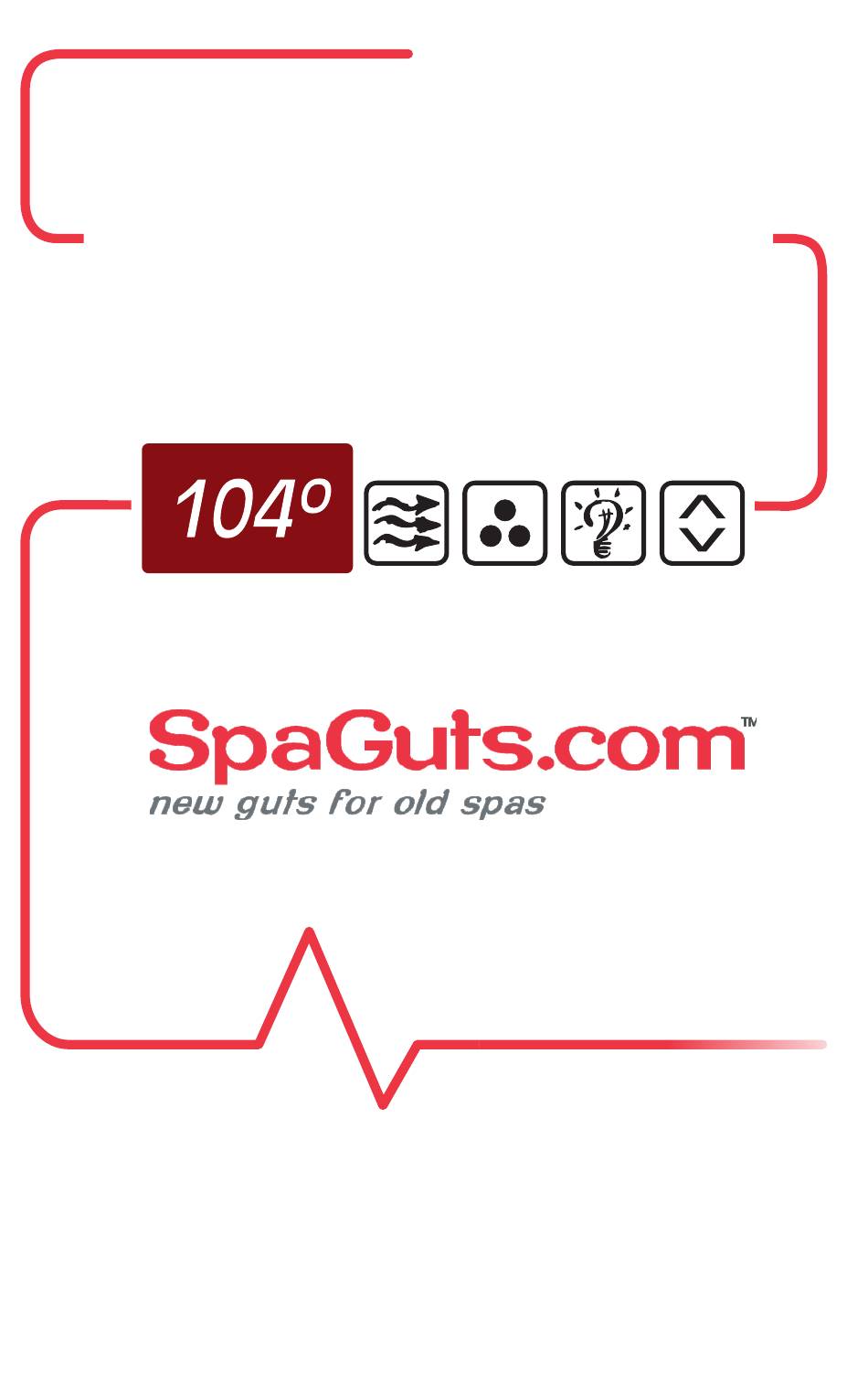

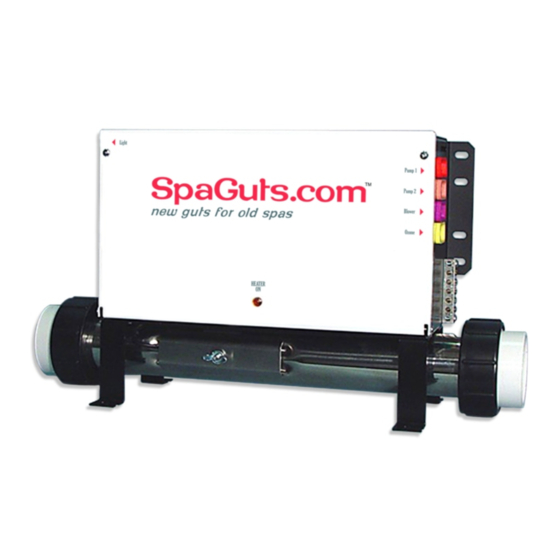

- Page 1 6230Y SERIES OWNERS OPERATION GUIDE...
-
Page 4: Table Of Contents
CONTENTS Important Safety Instructions..............2-3 Intgroduction/Major Component Illustration........4 SYSTEM OPERATION Power-Up / Breaker Settings..............5 Spaside Operation...................6-7 Filtration Programming................8 Spa Light....................9 Operation Considerations...............9-10 Warm Weather Conditions Ÿ Filtration System Ÿ Winterizing Ÿ Chemical Water Treatment Ÿ Error Indication..................11 TROUBLESHOOTING................12-13 Notes.......................14 Warranty Information................15... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS DANGER To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. WARNING - RISK OF CHILD DROWNING. Extreme caution must be exercised to prevent unauthorized access by children. - Page 6 Before entering the spa or hot tub, the user should measure the water temperature with an accurate thermometer. The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with the possibility of drowning. Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa or hot tub.
-
Page 7: Intgroduction/Major Component Illustration
INTRODUCTION Congratulations on your new purchase. This Control System is constructed of the finest materials and assembled under the strictest quality control standards. With proper care and maintenance your system will provide you with many years of reliable performance. The following pages contain information concerning the operation and care of your system. -
Page 8: Power-Up / Breaker Settings
POWER-UP & BREAKER SETTINGS Boot up display sequence (Each parameter is displayed for 2 seconds) 8 . 8 . 8 Lamp test Software number Software Revision Low-level selection All the segments and Software Part Number Revision of the Software Low-level selected LEDs light up. -
Page 9: Spaside Operation
SPASIDE CONTROL OPERATION Pump & Acc Main Display AM/PM Filtration Filtration Icons 1-3 Time, temp, messages °F/°C Indicator Indicator Smart Winter Service Mode Temp Up Power Temp Dwn Pump 1 Progress Heater Set Temp Displayed Pump 2 /Blower Pump 3/Blower Light Pump 1 - Press o nce to turn on low speed. - Page 10 FEATURES & PROGRAMMING FILTRATION Power Key - This key provides access to: Manual Economy Mode - When active this mode forces the system to maintain a temperature 20F° less than the set temperature, the display will toggle between “ ” the clock and the water temperature.
-
Page 11: Filtration Programming
PROGRAMMING FILTRATION (cont.) Setting the Filter Cycle Frequency: - Enter the programming menu by pressing and holding the LIGHT key for 5 seconds. The current time will be displayed with the hours flashing. If adjusting the clock is necessary do it now, otherwise press the LIGHT key repeatedly until FF## “FF”... -
Page 12: Spa Light
SPA LIGHT (optional) Colored Lense Your control may contain a high intensity, low Light Body voltage light to enhance nighttime use. Gasket This illustration shows how and where to find the bulb for replacement. It also shows the Light Bulb mounted spa light with a replacement (colored) lens. -
Page 13: Chemical Water Treatment
FREEZE PROTECTION (BUILT-IN) SMART WINTER MODE** - This mode will automatically activate any time the temperature falls below 55°F inside the main control box. An on-board sensor detects the temperature inside the box and determines which mode of protection is required to keep the spa from freezing. -
Page 14: Error Indication
ERROR INDICATION An internal hardware error has been detected in the spapack Contact your local dealer Temperature sensor malfunction This error will occur when a problem with the temperature sensor exists. Contact your local spa dealer Water has exceeded 108F at the temperature sensor. The heater, pump and accessory will be deactivated until the water cools. -
Page 15: Troubleshooting
TROUBLESHOOTING The following describes situations and possible solutions to common problems you may encounter as a spa owner. NOTHING OPERATES Main Breaker is OFF - Set to On. Sub-Panel Breaker Off - Set to On. Power switch in Off position - Set to On. Component(s) not plugged in - Plug in components. - Page 16 WATER LEAKS Spa Overfilled - Adjust water level. Too Many People in the Spa - Adjust water level. Drain-Valve Left Open - Close drain valve. Couplings or Unions Loose - Tighten or contact your local dealer. Pump Seal Leaking - Contact your local dealer. Plumbing Connections Leaking - Contact your local dealer.
-
Page 17: Notes
NOTES Use this section to jot down any information you may need at a later date. Date of Install: Dealer: Contact: Phone: Address: City: State: Zip: Notes: SYSTEM DATA LABEL The system data label is located on the control box. This label is very important and contains information you will need to establish your electrical service. -
Page 18: Warranty Information
SpaGuts Warranty Information SpaGuts and its manufacturers warrants its products to the original purchaser to be free from defects in material and workmanship for the warranty period as specified in the product page and receipt from the original date of purchase, except as noted below. - Page 20 85-0062-AZY Rev 05 10/22...
