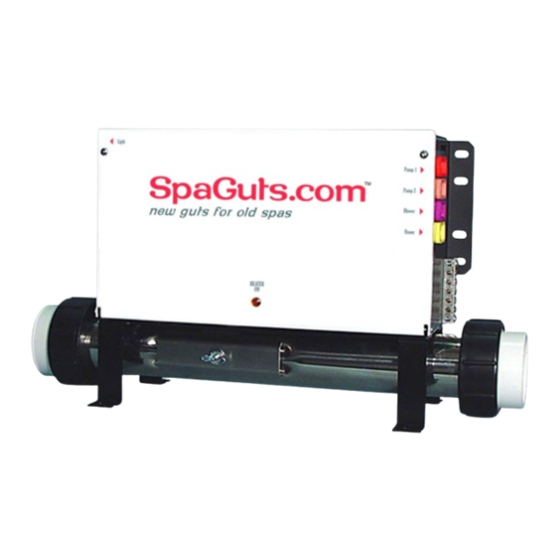

Spa Guts 6230Y Series Owner's Operation Manual
  1. Manuals
  2. Brands
  3. Spa Guts Manuals
  4. Hot Tub
  5. 6230Y Series
  6. Owner's operation manual

Spa Guts 6230Y Series Owner's Operation Manual

Hide thumbs Also See for 6230Y Series:
Table of Contents

Advertisement

Quick Links

6230Y SERIES
OWNERS OPERATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6230Y Series and is the answer not in the manual?

Questions and answers

Related Manuals for Spa Guts 6230Y Series

Summary of Contents for Spa Guts 6230Y Series

  • Page 1 6230Y SERIES OWNERS OPERATION GUIDE...

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions INTRODUCTION Major Component Illustration SYSTEM OPERATION Power-Up / Breaker Settings Spaside Operation Features & Filtration Programming Spa Light Error Indication OPERATIONAL CONSIDERATIONS Warm Weather Conditions Filtration System Winterizing Chemical Water Treatment TROUBLESHOOTING 11-13 Notes...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS DANGER To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. WARNING - RISK OF CHILD DROWNING. Extreme caution must be exercised to prevent unauthorized access by children.
  • Page 4 Before entering the spa or hot tub, the user should measure the water temperature with an accurate thermometer. The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with the possibility of drowning. Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa or hot tub.

  • Page 5: Introduction

    INTRODUCTION Congratulations on your new purchase. This Control System is constructed of the finest materials and assembled under the strictest quality control standards. With proper care and maintenance your system will provide you with many years of reliable performance. The following pages contain information concerning the operation and care of your system.

  • Page 6: Power-Up / Breaker Settings

    POWER-UP & BREAKER SETTINGS Boot up display sequence (Each parameter is displayed for 2 seconds) 8 . 8 . 8 Lamp test Software number Software Revision Low-level selection All the segments and Software Part Number Revision of the Software Low-level selected LEDs light up.

  • Page 7: Spaside Operation

    SPASIDE CONTROL OPERATION Pump 1 Pump 2 Blower Light Power Program Temp Up Temp Dwn Blower Filtration Pump 1 Indicator Indicator Indicator Pump 2 Light Heater Indicator Indicator Indicator Pump 1 - Press o nce to turn on low speed. Press a second time to turn pump to high speed (with a dual-speed pump).

  • Page 8: Features & Filtration Programming

    FEATURES & PROGRAMMING FILTRATION Power Key - This key provides access to: Manual Economy Mode - When active this mode forces the system to maintain a temperature 20F° less than the set temperature. The display will toggle between “ ” the clock and the water temperature.
  • Page 9 PROGRAMMING FILTRATION (cont.) Setting the Filter Cycle Frequency: - Enter the programming menu by pressing and holding the FILTER key for 5 seconds. The current time will be displayed with the hours flashing. If adjusting the clock is necessary do it now, otherwise press the FILTER key repeatedly until FF## “FF”...

  • Page 10: Spa Light

    SPA LIGHT (optional) Colored Lense Your control may contain a high intensity, low Light Body voltage light to enhance nighttime use. Gasket This illustration shows how and where to find the bulb for replacement. It also shows the Light Bulb mounted spa light with a replacement (colored) lens.

  • Page 11: Filtration System

    FILTRATION SYSTEM Please refer to your Spa Manufacturer's owner's manual regarding the operation, maintenance and cleaning of your filtration system. Dirty or clogged filters can cause flow restrictions and you may experience difficulty in reaching and/or maintaining desired heat levels. WINTERIZING When freezing weather and/or power losses are expected, contact your local spa dealer for freeze protection or winterizing recommendations for both the spa and the equipment...
  • Page 12 ERROR INDICATION An internal hardware error has been detected in the spapack Contact your local dealer Temperature sensor malfunction This error will occur when a problem with the temperature sensor exists. Contact your local spa dealer Water has exceeded 108F at the temperature sensor. The heater, pump and accessory will be deactivated until the water cools.

  • Page 13: Troubleshooting

    TROUBLESHOOTING The following describes situations and possible solutions to common problems you may encounter as a spa owner. NOTHING OPERATES Main Breaker is OFF - Set to On. Sub-Panel Breaker Off - Set to On. Power switch in Off position - Set to On. Component(s) not plugged in - Plug in components.
  • Page 14 WATER LEAKS Spa Overfilled - Adjust water level. Too Many People in the Spa - Adjust water level. Drain-Valve Left Open - Close drain valve. Couplings or Unions Loose - Tighten or contact your local dealer. Pump Seal Leaking - Contact your local dealer. Plumbing Connections Leaking - Contact your local dealer.

  • Page 15: Notes

    NOTES Use this section to jot down any information you may need at a later date. Date of Install: Dealer: Contact: Phone: Address: City: State: Zip: Notes: SYSTEM DATA LABEL The system data label is located on the control box. This label is very important and contains information you will need to establish your electrical service.
  • Page 16 85-0062-AZY Rev 02 7//19...
