6200Y SERIES
OWNERS OPERATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6200Y Series and is the answer not in the manual?

Questions and answers

Related Manuals for Spa Guts 6200Y Series

Summary of Contents for Spa Guts 6200Y Series

  • Page 1 6200Y SERIES OWNERS OPERATION GUIDE...

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions..............2-3 Intgroduction/Major Component Illustration........4 SYSTEM OPERATION Power-Up / Breaker Settings..............5 Spaside Operation...................6 Filtration Programming................7 Spa Light....................8 Operation Considerations..............8-9 Warm Weather Conditions Ÿ Filtration System Ÿ Winterizing Ÿ Chemical Water Treatment Ÿ Error Indication..................10 TROUBLESHOOTING................11-12 Notes.......................13...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS DANGER To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. WARNING - RISK OF CHILD DROWNING. Extreme caution must be exercised to prevent unauthorized access by children.
  • Page 5 Before entering the spa or hot tub, the user should measure the water temperature with an accurate thermometer. The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to unconsciousness with the possibility of drowning. Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician before using a spa or hot tub.

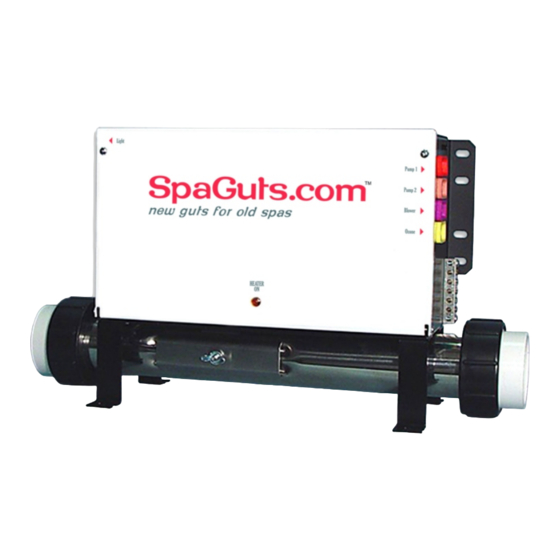

  • Page 6: Intgroduction/Major Component Illustration

    INTRODUCTION Congratulations on your new purchase. This Control System is constructed of the finest materials and assembled under the strictest quality control standards. With proper care and maintenance your system will provide you with many years of reliable performance. The following pages contain information concerning the operation and care of your system.

  • Page 7: Power-Up / Breaker Settings

    POWER-UP & BREAKER SETTINGS Boot up display sequence (Each parameter is displayed for 2 seconds) 8 . 8 . 8 Lamp test Software number Software Revision Low-level selection All the segments and Software Part Number Revision of the Software Low-level selected LEDs light up.

  • Page 8: Spaside Operation

    SPASIDE CONTROL OPERATION Smart winter mode Pump 2 Filter Set Point indicator indicator indicator indicator Pump 1 Light Heater indicator indicator indicator Pump 1 Pump 2/Blower Light Temp Up/Down Pump 1 - Press o nce to turn on low speed. Press a second time to turn pump to high speed (with a dual-speed pump).

  • Page 9: Filtration Programming

    PROGRAMMING FILTRATION Programming Filtration Cycles & Temperature Readout To set filter cycles you must enter the following parameters: Duration (d) and Frequency (F). At the beginning Pump 1 (+ additional components staggered) will run for 1 minute each to purge the plumbing.

  • Page 10: Spa Light

    SPA LIGHT (optional) Colored Lense Your control may contain a high intensity, low Light Body voltage light to enhance nighttime use. Gasket This illustration shows how and where to find the bulb for replacement. It also shows the Light Bulb mounted spa light with a replacement (colored) lens.

  • Page 11: Chemical Water Treatment

    FREEZE PROTECTION (BUILT-IN) SMART WINTER MODE** - This mode will automatically activate any time the temperature falls below 55BF inside the main control box. An on-board sensor detects the temperature inside the box and determines which mode of protection is required to keep the spa from freezing.

  • Page 12: Error Indication

    ERROR INDICATION An internal hardware error has been detected in the spapack Contact your local dealer Temperature sensor malfunction This error will occur when a problem with the temperature sensor exists. Contact your local spa dealer Water has exceeded 108F at the temperature sensor. The heater, pump and accessory will be deactivated until the water cools.

  • Page 13: Troubleshooting

    TROUBLESHOOTING The following describes situations and possible solutions to common problems you may encounter as a spa owner. NOTHING OPERATES Main Breaker is OFF - Set to On. Sub-Panel Breaker Off - Set to On. Power switch in Off position - Set to On. Component(s) not plugged in - Plug in components.
  • Page 14 WATER LEAKS Spa Overfilled - Adjust water level. Too Many People in the Spa - Adjust water level. Drain-Valve Left Open - Close drain valve. Couplings or Unions Loose - Tighten or contact your local dealer. Pump Seal Leaking - Contact your local dealer. Plumbing Connections Leaking - Contact your local dealer.

  • Page 15: Notes

    NOTES Use this section to jot down any information you may need at a later date. Date of Install: Dealer: Contact: Phone: Address: City: State: Zip: Notes: SYSTEM DATA LABEL The system data label is located on the control box. This label is very important and contains information you will need to establish your electrical service.
  • Page 16 85-0063-AZY Rev 02 11/20...
