Product Name:

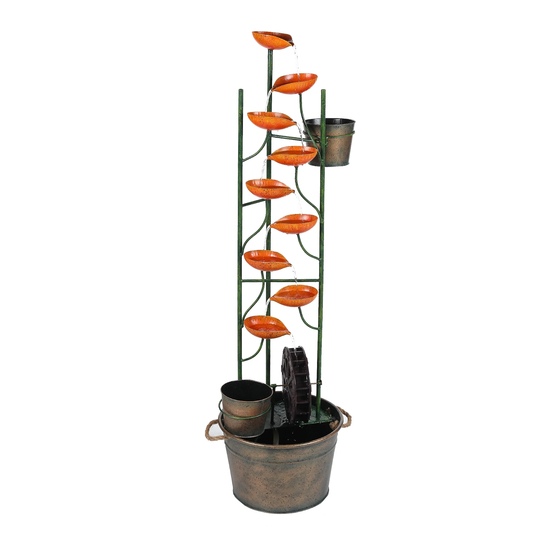

Metal Tulip Cascade Outdoor Fountain
SKU #:
WHF1431
Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest standards of
safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts. If
any parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS:
Description
Fountain top
Fountain base pot
Planters
Water wheel
Nuts
Pump
Compatible Pumps for this fountain:
Pump Model No.
JR800
Tools required for assembly: No tools required assembly.
ASSEMBLY INSTRUCTIONS:
1. Unpack the contents of the box and check to make sure that all items are accounted for and in good condition.
2. Remove the pump from the package and untie the power cord.
4. Insert the water supply tube into the pump outlet. Place the pump upright in the pot of the fountain. ①
3. Select a flat, level surface for the assembly and final location of your fountain.
5. Assemble the metal fountain top on the base of the fountain. ②
6. Place the two small metal planters in the iron holders. ③
7. Assemble the water wheel to the fountain.④
8. Add clean water into the reservoir ⑤. The water level should be approximately 30mm lower than the edge of the
reservoir. Ensure the pump in your fountain is completely submerged in the water.
9. Connect the power cord from the pump to a properly grounded, grounding type receptacle (GFCI).⑥
10. If installed properly, water flow in the fountain will begin shortly.
11. Adjust the flow rate (if applicable) to the maximum (+) position. If necessary, readjust the flow rate to the desired level
(remember to always disconnect from the power source before handling the pump).
12. Please do not use the electrical plug during wet weather conditions. Please note: On first use, there may be air in the
pump. It may take several minutes until all the air escapes.
Quantity
1
1
2
1
2
1
Contact:
cs@winsomehouse.com
Instruction Manual
SAVE THESE INSTRUCTIONS–This manual contains important
safety and operating instructions for power units.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Luxen Home WHF1431
Summary of Contents for Luxen Home WHF1431
- Page 1 Metal Tulip Cascade Outdoor Fountain SKU #: WHF1431 Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY. Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
- Page 2 Instruction Manual SAVE THESE INSTRUCTIONS–This manual contains important safety and operating instructions for power units. Product Name: Metal Tulip Cascade Outdoor Fountain SKU #: WHF1431 Note: The above diagram is for illustrative purposes only. Contact: cs@winsomehouse.com...
- Page 3 Product Name: Metal Tulip Cascade Outdoor Fountain SKU #: WHF1431 MAINTENANCE OF YOUR PUMP: Keep the water clean – clean water will prolong the useful life of your pump. • Use a pre-filter on your pump if available.
- Page 4 Product Name: Metal Tulip Cascade Outdoor Fountain SKU #: WHF1431 Check the water level regularly to ensure the pump is completely submerged during operation. The pump should be • fully submerged during operation. Do not add water while operating the product. Always disconnect the pump from the power source before adding water.
