Product Name:

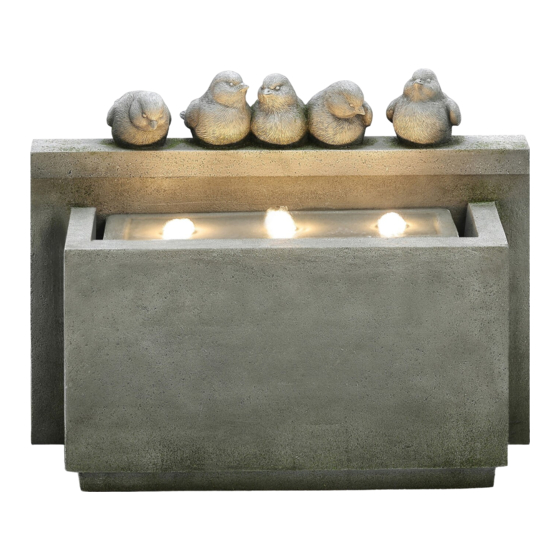

Contemporary Rectangular and Birds Resin Outdoor Bubbler Fountain
SKU #:
WHF1769
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of
safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts. If any
parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS:
Description
Fountain Top
Reservoir (Fountain base)
Pump
Compatible Pumps for this fountain:
Pump Model No.
JR450/LED
JB450/LED
YH707
Tools required for assembly: No tools required assembly.
ASSEMBLY INSTRUCTIONS:
1. Unpack the contents of the box and check to make sure that all items are accounted for and in good condition.
2. Remove the pump from the package and untie the power cord.
4. Connect the power cord ① on the water pump to the PVC tube to the bottom and lead the cord out from the bottom
3. Select a flat, level surface for the assembly and final location of your fountain.
5. Insert the water supply tube on the upper cover into the pump outlet ②. Connect the pump adapter cord to the LED
opening.
cord and twist to tighten the connection ③. Place the pump upright in the back of the fountain opening.
6. Insert the fountain top to the base ④.
7. Connect the power cord to the transformer⑤ and cover the fountain with the top. Make sure that the concave edge of
the fountain top should adhere to the convex part of the reservoir.
Ensure the pump in your fountain is completely submerged in the water ⑥.
8. Add clean water into the reservoir. The water level should be approximately 30mm lower than the edge of the reservoir.
9. Connect the power cord from the pump to a properly grounded, grounding type receptacle (GFCI) ⑦.
10. If installed properly, water flow in the fountain will begin shortly.
11. Adjust the flow rate (if applicable) to the maximum (+) position. If necessary, readjust the flow rate to the desired level
(remember to always disconnect from the power source before handling the pump).
12. Please do not use the electrical plug during wet weather conditions. Please note: On first use, there may be air in the
pump. It may take several minutes until all the air escapes.
Quantity
1
1
1
Instruction Manual
SAVE THESE INSTRUCTIONS–This manual contains important
safety and operating instructions for power units.
