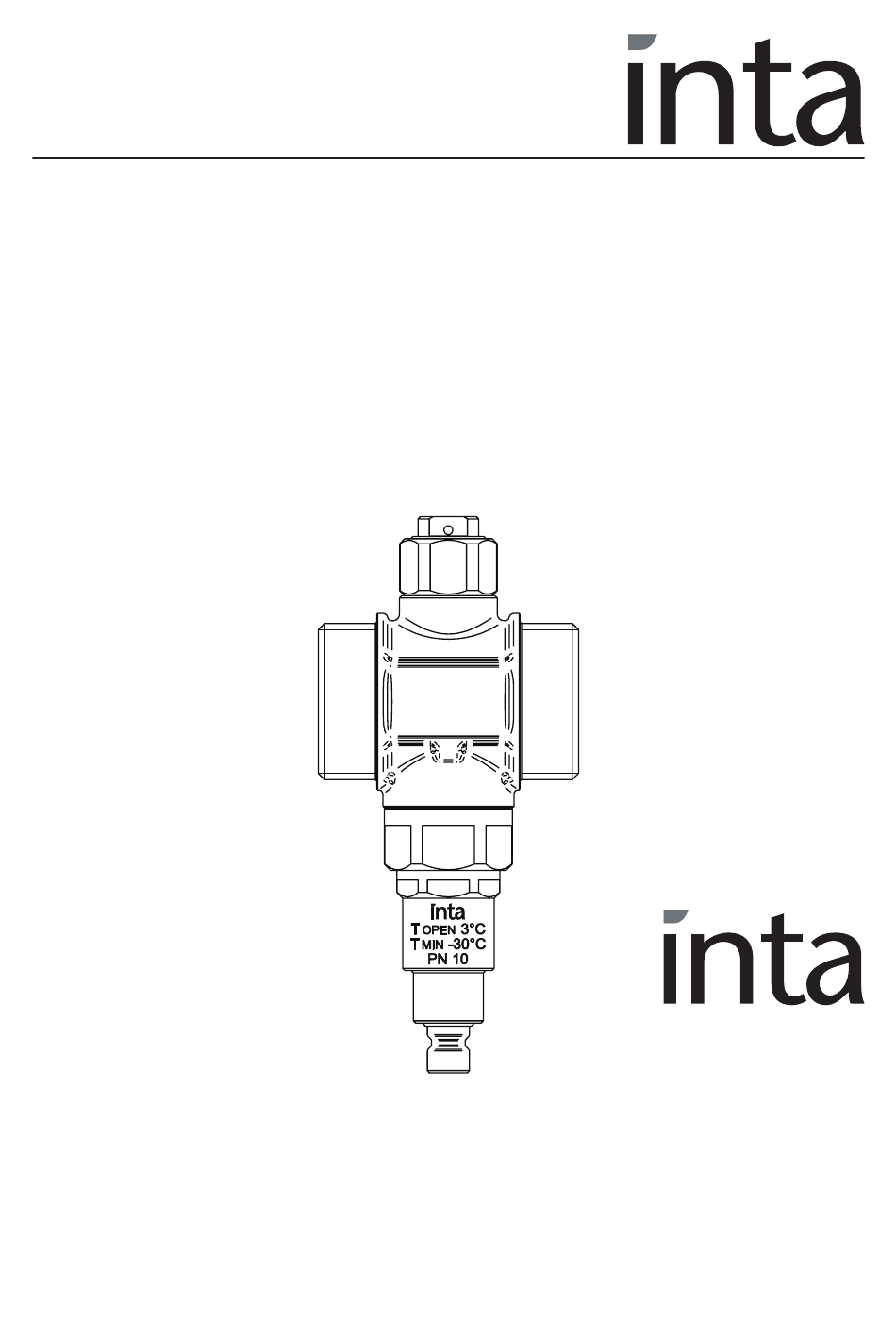

Zero Anti-Freeze Valve
ZERO001, ZERO114 & ZERO28
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the informa-
Tel: 01889 272 180
tion as accurate as possible.
Fax: 01889 272 181
We cannot accept any responsibility should it be found that in any
email: sales@intatec.co.uk
respect the information is inaccurate or incomplete or becomes so as a
web: www.intatec.co.uk
result of further developments or otherwise.
© Intatec Ltd 2023
Advertisement
Table of Contents
Related Manuals for Inta ZERO114
Summary of Contents for Inta ZERO114
- Page 1 Zero Anti-Freeze Valve ZERO001, ZERO114 & ZERO28 Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the informa- Tel: 01889 272 180 tion as accurate as possible.
-
Page 2: Technical Specification

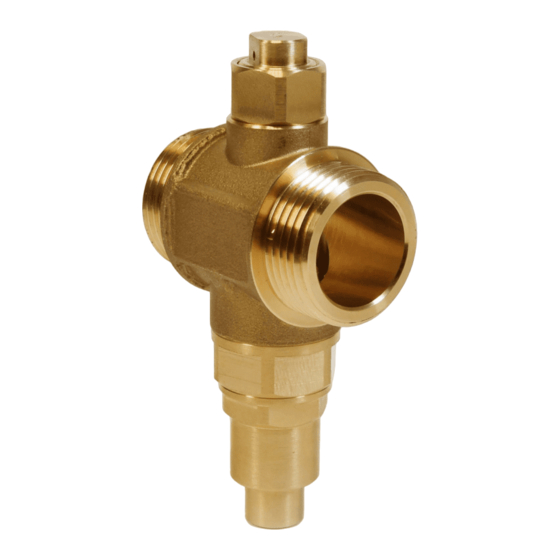

Introduction The Inta Zero is a unique anti-freeze valve designed to protect heat pump systems operating with water. Designed to discharge when the system water temperature goes down to 3˚C preventing ice from forming in the heat pump circuit that could cause breakdown or costly damage to the system. -
Page 3: Check Components
Before commencing remove all components from packaging and check each component with the contents list. Ensure all parts are present, before discarding any packaging. If any parts are missing, do not attempt to install your Inta Zero anti-freeze valve until the missing parts have been obtained. Vaccum breaker Olive... -
Page 4: Preparation For Installation
The discharge from anti-freeze valves must be collected in a suitable drain and routed to a suitable collection point. >15cm If a second valve is required, Inta recommend leaving at least 10 cm between the valves to avoid water discharging onto the lower valve. © Intatec Ltd 2023... - Page 5 When installed outdoors, the Zero antifreeze valve must be protected from rain, snow and direct sunlight. Inta recommend placing a small cover / hood with 1 open face over the vacuum break. This should prevent interference or debris while still permitting air flow.
-
Page 6: Maintenance
In the event of a malfunction, the thermostatic cartridge can be replaced. Using a 26mm A/F spanner remove the cartridge from the body and replace with a new one. Replacement Components Replacement components are available from Inta. Fit only genuine Inta replacement components. © Intatec Ltd 2023... - Page 7 Notes: © Intatec Ltd 2023...
- Page 8 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E &...
