Thermostatic Shower Valve
10019CP
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
Tel: 01889 207200
information as accurate as possible
Fax: 01889 271172
We cannot accept any responsibility should it be found that in any
email: sales@intatec.co.uk
respect the information is inaccurate or incomplete or becomes so as a
web: www.intatec.co.uk
result of further developments or otherwise
© Intatec Ltd 2009
Advertisement
Table of Contents
Related Manuals for Inta 10019CP
Summary of Contents for Inta 10019CP

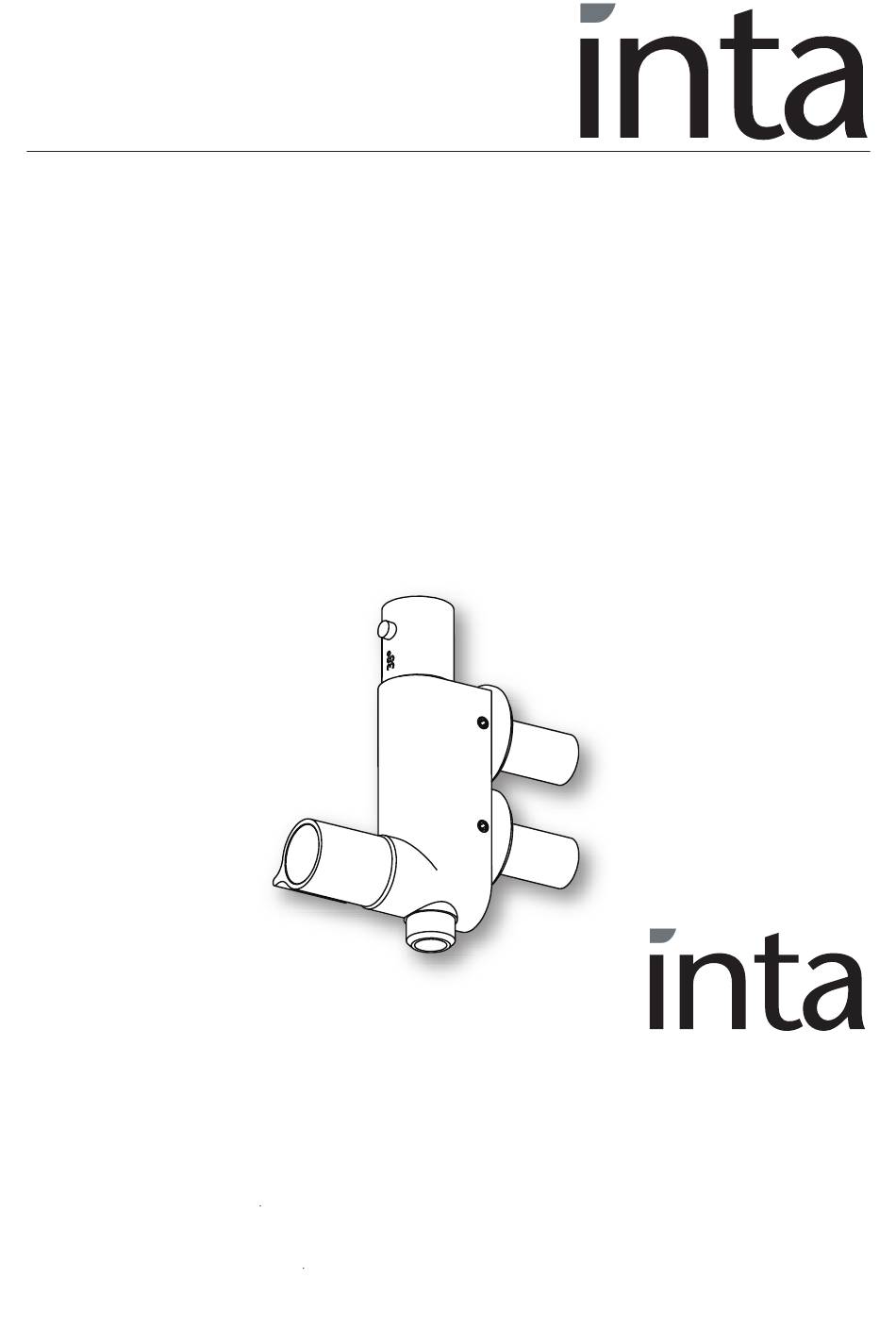

- Page 1 Thermostatic Shower Valve 10019CP Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the Tel: 01889 207200 information as accurate as possible Fax: 01889 271172 We cannot accept any responsibility should it be found that in any email: sales@intatec.co.uk...
-
Page 2: Technical Specification
Introduction This installation guide has been produced for the 10019CP thermostatic shower with concealed supply pipes and covers the installation, operation and maintenance. Please read the enclose instructions before commencing installation WE RECOMMEND THAT THE INSTALLATION OF ANY INTA PRODUCT IS CARRIED OUT BY AN APPROVED INSTALLER. -
Page 3: Installation Instructions
Installation Instructions Stud Wall Installation with the supply pipes concealed behind a stud wall. Cold Inlet Cut 2 holes 24 to 26mm in diameter at 45mm centres in the plaster board or wall plate. Finish tiling the wall cutting 2 holes 24mm to 26mm in the tiles. -
Page 4: Operation
Operation The red button on the temperature control knob locks the mixed water temperature to 38˚C, press the button to release the knob to increase the or lower the water temperature. Turning the flow control knob anti-clockwise turns on the water and regulates the amount flowing. Components Cover Retaining... -
Page 5: Supply Conditions
Re-assemble in the reverse order turn on both supplies and check joints for leakage. Aftercare Inta thermostatic shower valves have a high quality finish and should be treated with care. An occasional wipe with a mild washing-up liquid on a soft damp cloth followed by a thorough rinsing is all that is required. -
Page 6: Recommended Outlet Temperatures
Application The thermostatic mixing shower valve has been independently tested by WRAS and certified as meeting the requirements of the BS EN 1111:1999 under the TMV2 Scheme as being suitable for use on the following designations. Recommended Outlet Temperatures The BuildCert TMV scheme recommends the following set maximum mixed water out let temperatures for use in all premises: Code Application... - Page 7 Installation 3. The supply to which the thermostatic shower valve is to be installed must be thoroughly flushed and cleaned to remove any debris, which may have accumulated during the installation. Failure to remove any debris will affect the performance and the manufacturer’s warranty of the product. In areas that are subject to aggressive water, provision must be made to treat the supplies prior to the supplies entering the shower valve.
- Page 8 Commissioning 2. Commissioning the temperatures must be carried out using a suitably calibrated thermometer – preferably a digital thermometer. The sensing part of the thermometer probe must be fully submerged in the water when testing. 3. The valve must be commissioned taking into consideration any fluctuations, which may occur within the system due to simultaneous demands.
-
Page 9: In Service Testing
In Service Testing It is a requirement that all TMV2 approved valves shall be verified against the original set temperature results once a year. When commissioning / testing is due the following performance checks shall be carried out. 1. Measure the mixed water temperature at the outlet. 2.
