ASSEMBLY INSTRUCTIONS:

Item No: TT10840

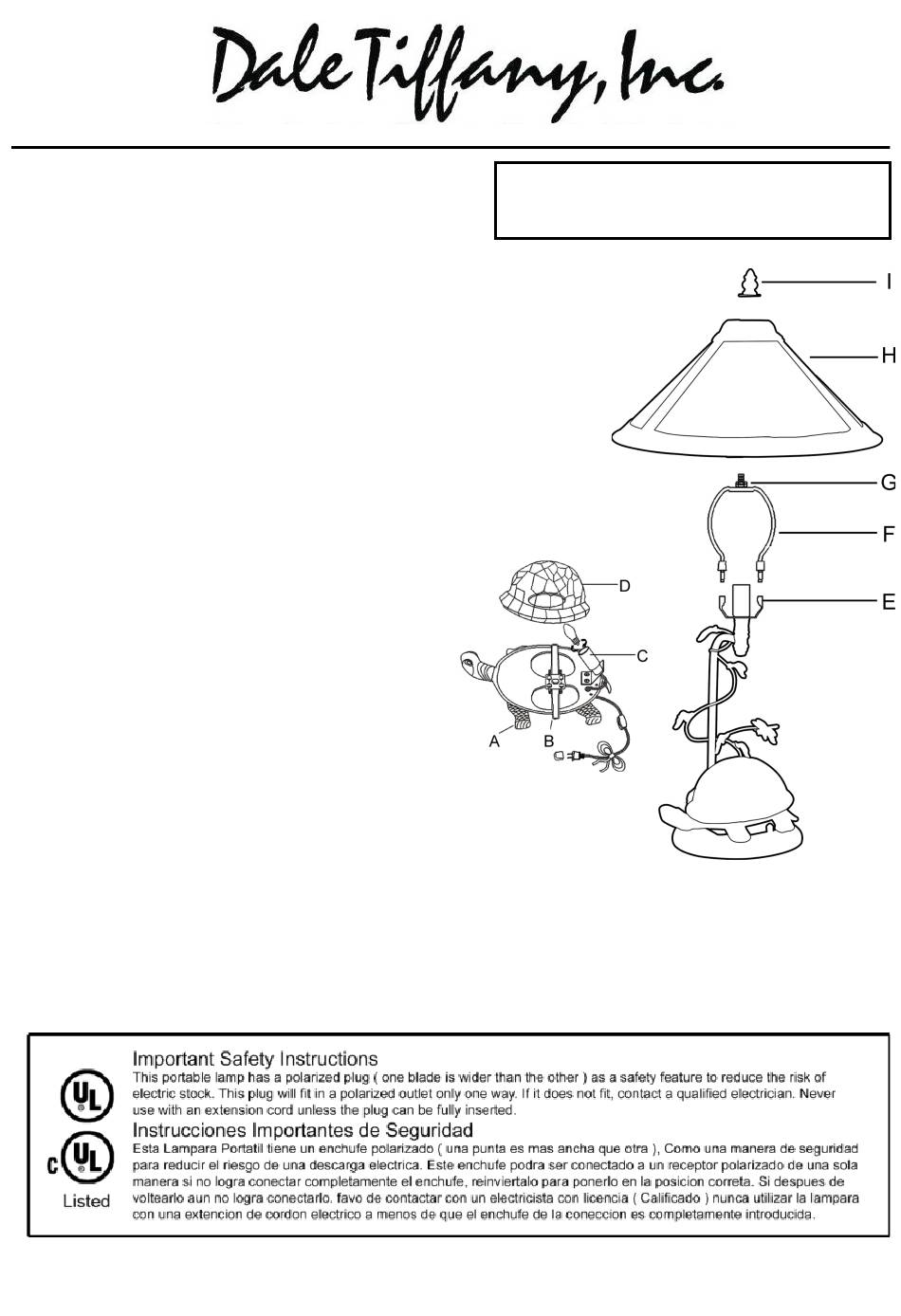

1. Place the base (A) on a level surface.

2. Insert 15Watt bulb into bulb socket (C).

3. Pinch the two wire springs (B) together and place shade

(D) over the base.

4. Insert the harp (F) until it sits firmly into the saddle (E.

5. Adjust the knurl nut (G) on harp (F).

This can be used to raise the shade a little if

necessary.

6. Place the shade (H) over the end of the harp (E) and

tighten the finial (I) securing the shade in place.

7. Insert the bulb into the bulb socket.

Recommended (1) maximum 60 WATT Type "A" Bulb

Or (1) maximum 13WATT CFL Bulb (Bulb not included)

Recommended (1) maximum 15Watt Type "B" Bulb

(Bulb not included)

Cleaning of your lamp.

Unplug lamp, wipe with a damp cloth.

Do not use abrasives

*SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Made in China

FOR RETURN SHIPPING PURPOSES:

PLEASE RETAIN ORIGINAL

PACKAGING TO MINIMIZE DAMAGE.

Revision – 04/18/12
