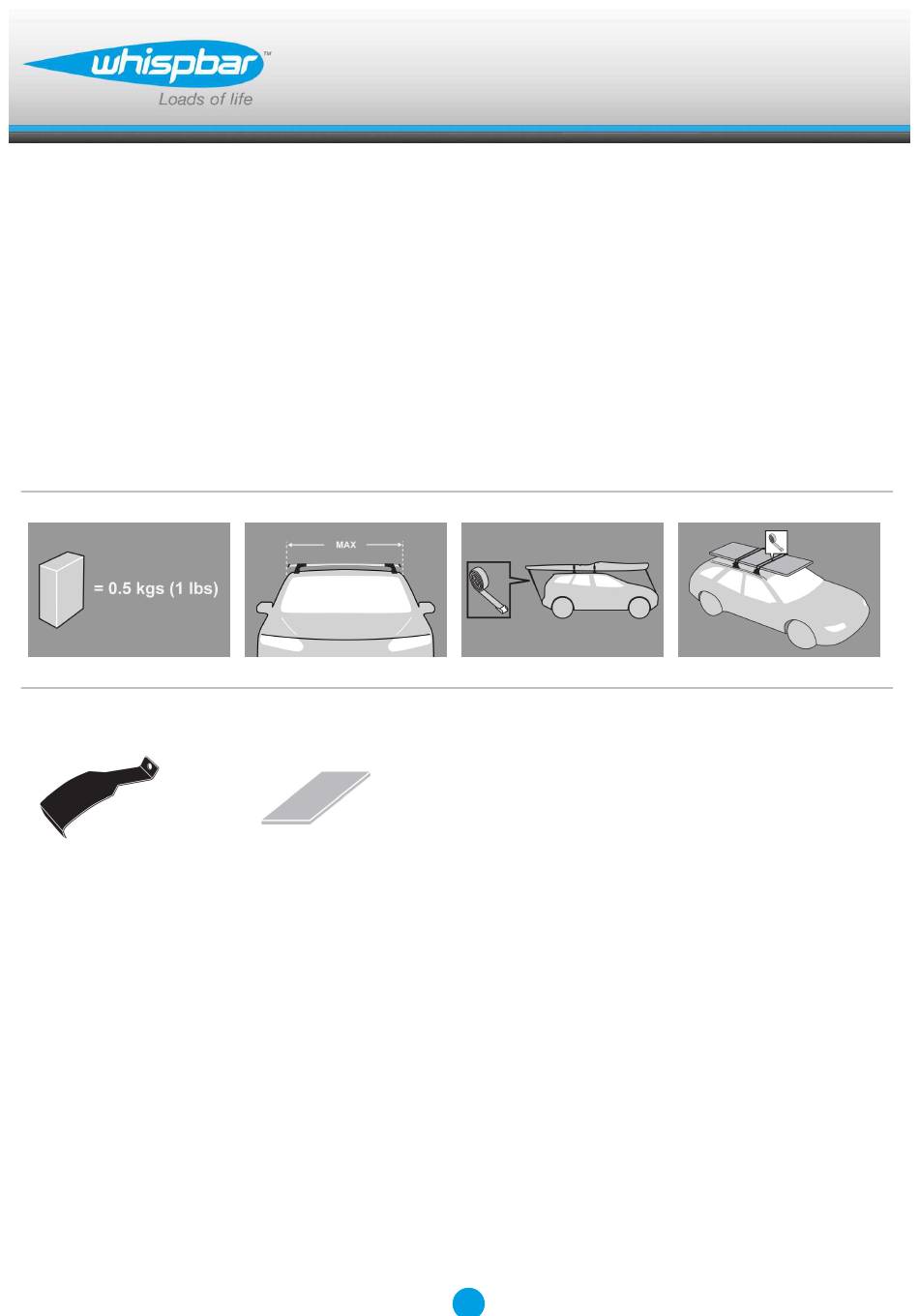

- Page 1 K172W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
-
Page 2: First Time Installation
Fitting Kit K172W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 3 Fitting Kit K172W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 4 Fitting Kit K172W Remove locking screw. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 5 Fitting Kit K172W Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 6 Fitting Kit K172W Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the doors Please check the rear of this manual for information relating specifically to your vehicle.
- Page 7 Fitting Kit K172W Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 8 Fitting Kit K172W CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 9: Maintenance
Fitting Kit K172W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 10 Fitting Kit K172W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
