- Page 1 K138W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2C...

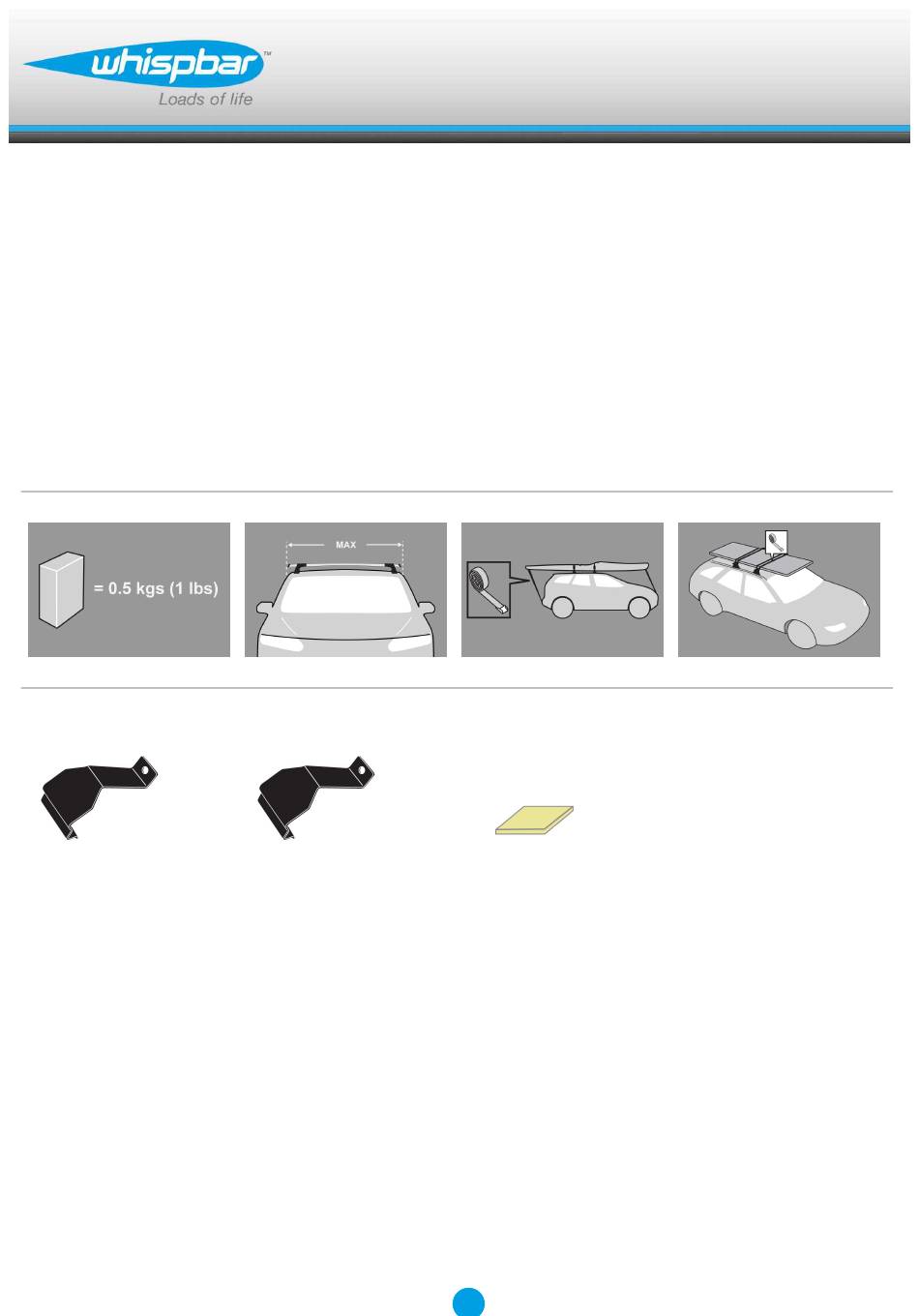

- Page 2 Fitting Kit K138W MAX kgs (lbs) Holden Commodore VU/VY/VZ, 2dr Ute 03-07 25 kgs (55 lbs) 25 kgs (55 lbs) Commodore VU/VY/VZ, 2dr Ute Dec 00-Aug 07 25 kgs (55 lbs) 25 kgs (55 lbs) Commodore VX/VY/VZ, 4dr Sedan Nov 00-Jul 06...
-
Page 3: First Time Installation
Fitting Kit K138W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K138W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K138W Remove locking screw. Apply protective strip as shown. Trim if required. This setup is applicable for one crossbar only. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 343A...
- Page 6 Fitting Kit K138W This setup is applicable for two crossbars only. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 343A B = 344A Attach clamp to each leg.
- Page 7 Fitting Kit K138W Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 8 Fitting Kit K138W Press adjusting screw to adjust the leg positions on the crossbar. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly.
- Page 9 Fitting Kit K138W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 10 Fitting Kit K138W Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 11 Fitting Kit K138W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K138W Commodore, 2dr Ute 03-07 (NZ) Commodore, 2dr Ute Dec 00-Aug 07 (AU) Commodore, 4dr Sedan Nov 00-Jul 06 (NZ) -280mm 400mm -11" 15 3/4ths" Commodore, 4dr Sedan Nov 00-Jul 06 (NZ) -280mm 400mm 949mm 943mm -11" 15 3/4ths"...
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
