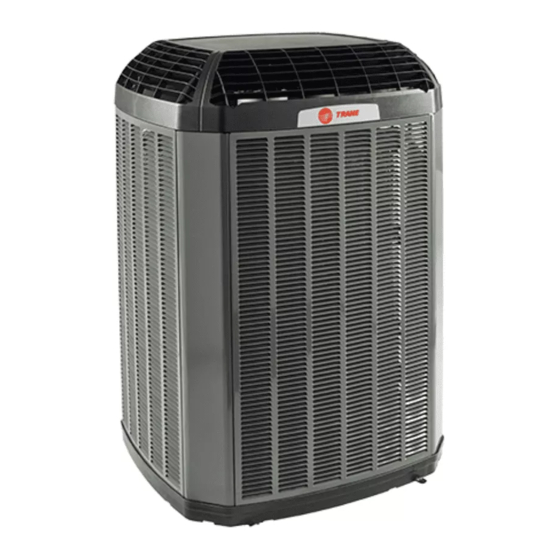

Installer's Guide
Variable Speed ComfortLink™ ™ II
Heat Pumps and Air Conditioners
4TWV8024A1000B
4TWV8036A1000B
4TWV8037A1000B
4TWV8048A1000B
4TWV8049A1000B
4TWV8060A1000B
Scan to see help
videos on this
product
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and
air-conditioning equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered
equipment by an unqualified person could result in death or serious injury. When working on the equipment, observe all precautions in the
literature and on the tags, stickers, and labels that are attached to the equipment.
February 2016
4TTV8024A1000B
4TTV8036A1000B
4TTV8037A1000B
4TTV8048A1000B
4TTV8060A1000B
N N o o t t e e : : "Graphics in this document are for representation only.
S S A A F F E E T T Y Y W W A A R R N N I I N N G G
18-BC92D1-1F-EN
Actual model may differ in appearance. "
