Camcorder

Operating Instructions

PV-L453
Model No.
Please read these instructions carefully before attempting to operate this product.
Please save this manual.
Guía para rápida consulta en español está incluida.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com
LSQT0629A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Palmcorder MultiCam PV-L453 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic Palmcorder MultiCam PV-L453

Summary of Contents for Panasonic Palmcorder MultiCam PV-L453

  • Page 1: Operating Instructions

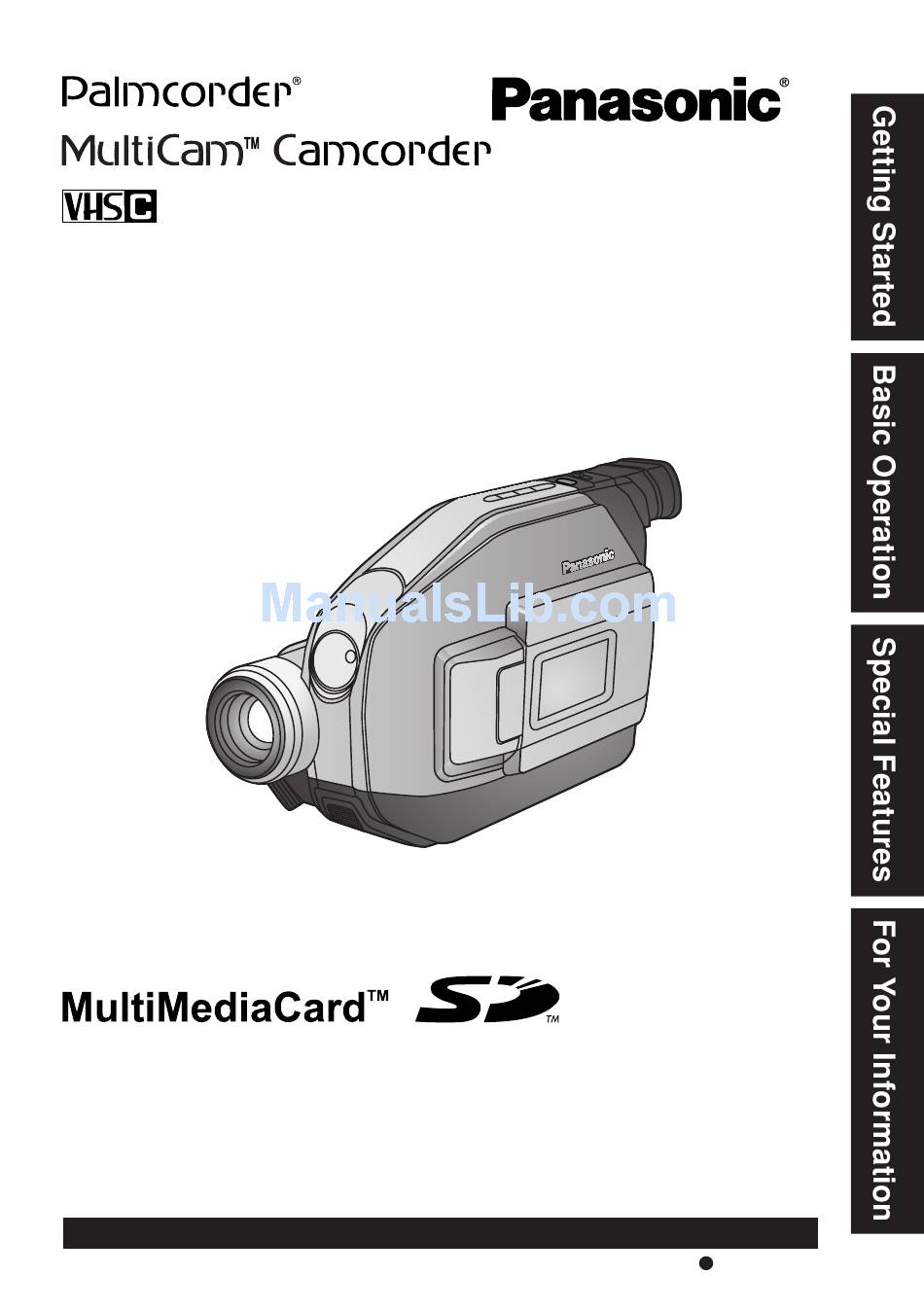

    Operating Instructions PV-L453 Model No. Please read these instructions carefully before attempting to operate this product. Please save this manual. Guía para rápida consulta en español está incluida. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com LSQT0629A...
