User 's Manual

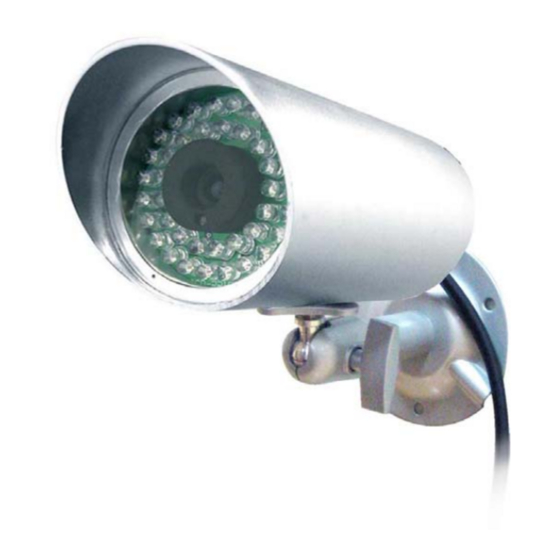

Model No.: IP-901
Weatherproof Day/Night Network Camera
Hardware Installation & Web Configuration
PLEASE READ CAREFULLY AND SAVE
This manual contains important information about this product's operation.
If you are installing this product for others, you must leave this manual -or a
copy- with the end user.
R.901. 10408
