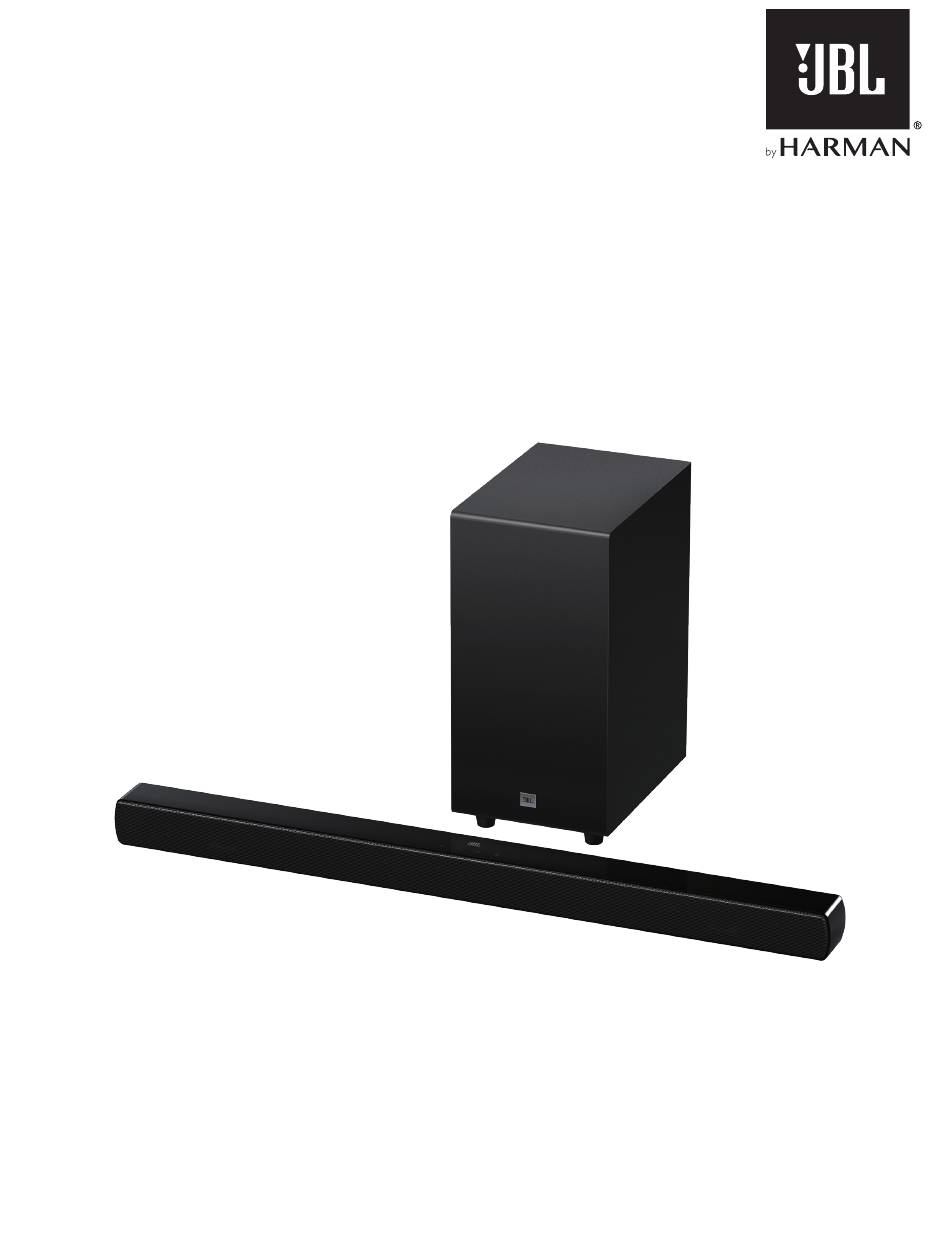

- Page 1 JBL CINEMA SB190 OWNER’S MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Verify Line Voltage Before Use The JBL CINEMA BAR 190 (soundbar and subwoofer) has been designed for use with 100-240 volt, 50/60 Hz AC current. Connection to a line voltage other than that for which your product is intended can create a safety and fire hazard and may damage the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS 7 SOUND SETTINGS IMPORTANT SAFETY INSTRUCTIONS 7.1 DOLBY ATMOS (VIRTUAL) ® 7.2 PRE-DEFINED EQ SETTINGS 1 INTRODUCTION 7.3 VOICE MODE 7.4 BASS BOOST 2 WHAT’S IN THE BOX 8 RESTORE FACTORY SETTINGS 3 PRODUCT OVERVIEW 3.1 CONTROLS AND INDICATORS 9 SOFTWARE UPDATE 3.2 CONNECTORS 3.3 SUBWOOFER... -
Page 4: Introduction
Power cord* 1 INTRODUCTION Thank you for purchasing the JBL CINEMA BAR 190 (soundbar and subwoofer) which is designed to bring an extraordinary sound experience to your home entertainment system. We encourage you to take a few minutes to read through this manual, which describes the product and includes step-by-step instructions for setting up and getting started. -
Page 5: Product Overview
3.2 Connectors 3 PRODUCT OVERVIEW 3.1 Controls and indicators 2 3 4 5 2 3 4 (Power) • Switch on or to standby • Connect to power 2. -/+ (Volume) • Decrease or increase the volume • USB connector for software update •... -
Page 6: Remote Control
3.4 Remote Control 5. + / - • Increase or decrease the volume • Press and hold to increase or decrease the volume continuously. (Mute) Mute/unmute • • Switch on or to standby 2. Source selectors Select the HDMI IN source •... -
Page 7: Place
4.2 Wall-mounting 4 PLACE 4.1 Desktop placement Place the soundbar and subwoofer on a flat and stable surface. Make sure that the subwoofer is at least 3 ft (1 m) away from the soundbar, and 4" (10 cm) away from a wall. >2”... -
Page 8: Connect
1. Connect the soundbar with the HDMI IN (ARC) connector on 5 CONNECT your TV by using the supplied HDMI cable. • On your TV, check that HDMI-CEC and HDMI ARC have 5.1 Connection with your TV and digital devices been enabled. - Page 9 TV (HDMI eARC) OPTICAL HDMI OUT OPTICAL TV eARC/ARC OPTICAL HDMI (eARC) HDMI IN HDMI IN HDMI OUT HDMI OUT 1. Connect the soundbar with the connector NOTES: on your TV by using the supplied HDMI cable. − With the Virtual Dolby Atmos design, the Dolby surround upmixer of •...
-
Page 10: Bluetooth Connection
2. Follow Step 3 under “Connect a Bluetooth device”. • If the device has ever been paired with the soundbar, first Through Bluetooth, connect the soundbar with your Bluetooth unpair “JBL CINEMA SB190” on the device. device, such as a smartphone, tablet and laptop. NOTES: −... -
Page 11: Play
6.2 Play from the TV source 6 PLAY With the soundbar connected, you can enjoy TV audio from the 6.1 Power-on/Auto standby/Auto wakeup soundbar speakers. 1. Make sure that your TV is set to support external speakers and the built-in TV speakers are disabled. Refer to the owner’s manual of your TV for more information. -
Page 12: Play From The Hdmi In Source
4. Repeat Step 3 to complete the button learning. 6.4 Play from the Bluetooth source 5. To exit the TV remote control learning mode, press and hold Through Bluetooth, stream audio from your Bluetooth device to and + on the soundbar until the status indicator flashes amber the soundbar. -
Page 13: Sound Settings
7.2 Pre-defined EQ settings 7 SOUND SETTINGS With the remote control, select the pre-defined EQ (equalizer) 7.1 Dolby Atmos (Virtual) ® settings for your audio playback. With the Virtual Dolby Atmos, enjoy height sound effects when you play movies in the HDMI IN/HDMI ARC source. ATMOS ON NEWS ATMOS OFF... -
Page 14: Voice Mode
7.3 Voice mode 7.4 Bass boost The voice mode allows you to enhance vocal clarity and easily By switching the bass boost on or off, you can increase or hear and understand speech. decrease the bass sound effect. BASS BOOST ON VOICE MODE ON BASS BOOST OFF VOICE MODE OFF... -
Page 15: Restore Factory Settings
8 RESTORE FACTORY SETTINGS 9 SOFTWARE UPDATE By restoring the default settings defined at factories, you remove For optimal product performance and your best user experience, all your personalized settings from the soundbar. JBL may offer software updates for the soundbar system in the future. -
Page 16: Re-Connect The Subwoofer
10 RE-CONNECT THE SUBWOOFER 11 PRODUCT SPECIFICATIONS General specification: The soundbar and subwoofer are paired at factories. After power- • Power supply: 100 - 240V AC, ~50/60Hz on, they are paired and connected automatically. In some special cases, you may need to pair them again. •... -
Page 17: Troubleshooting
Dimensions: 12 TROUBLESHOOTING • Dimensions (W x H x D): (900 x 62 x 67) mm / 35.4" x 2.44" x 2.6" (soundbar); Never try to repair the product yourself. If you have problems (200 x 409 x 280) mm / 7.87" x 16.1" x 11" (subwoofer) using this product, check the following before you request services. -
Page 18: Trademarks
® owned by Bluetooth SIG, Inc. and any use of such marks by Remote control HARMAN International Industries, Incorporated is under license. The remote control does not work. Other trademarks and trade names are those of their respective owners. - Page 19 © 2021 HARMAN International Industries, Incorporated. Incorporated 8500 Balboa Boulevard, All rights reserved. Northridge, CA 91329 USA JBL is a trademark of HARMAN International Industries, Incorporated, registered in www.jbl.com the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
