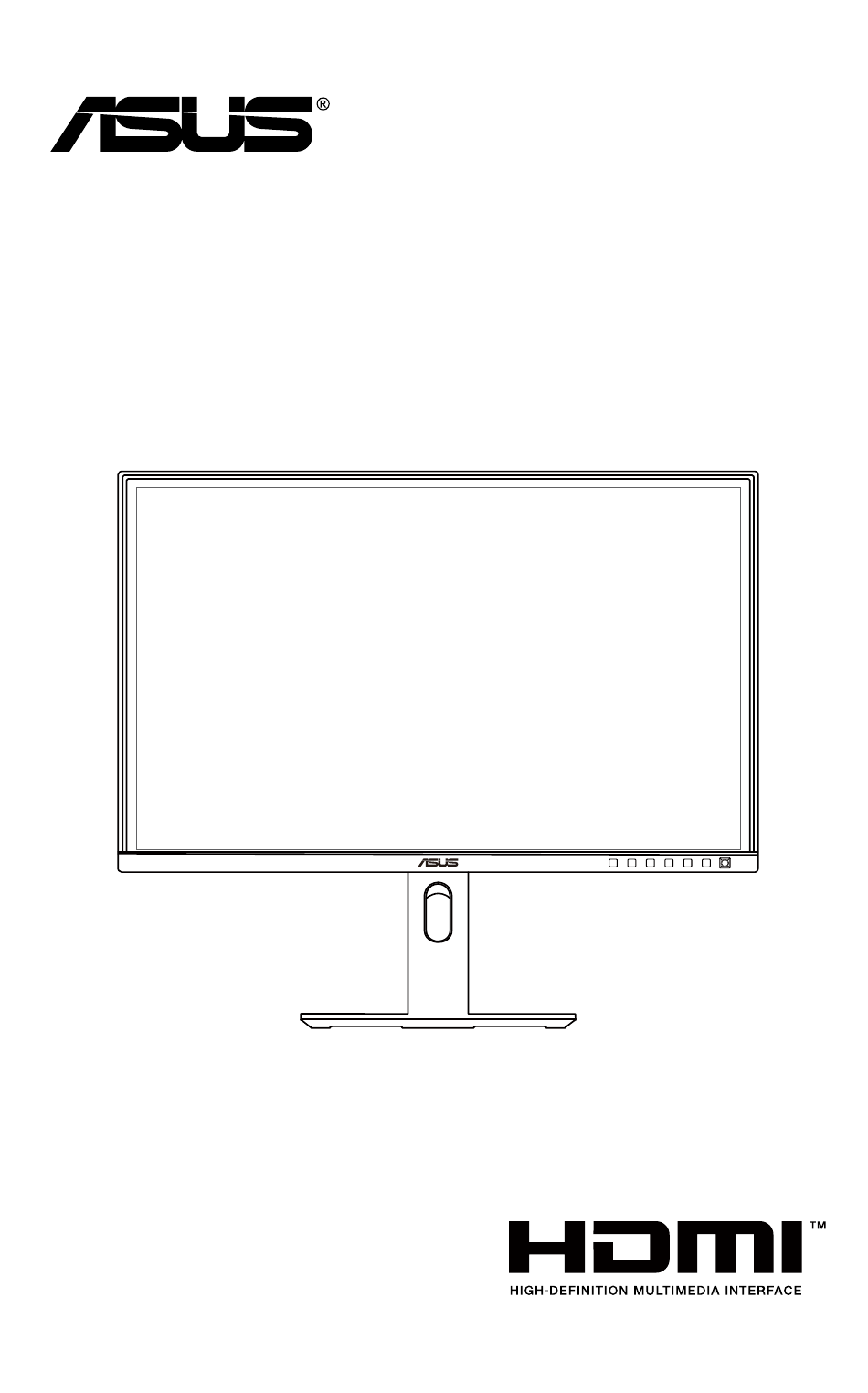

  • Page 1 PA248CRV Series LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Contents ...................... iii Notices ......................iv TCO certified ....................vi Safety information ..................vii Care & Cleaning ..................viii Takeback Services ..................ix Product information for EU energy label ..........ix Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............

  • Page 4: Notices

    All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity.
  • Page 5 NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating system. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

  • Page 6: Tco Certified

    TCO certified A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.

  • Page 7: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 8: Care & Cleaning

    AEEE yönetmeliğine uygundur Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.

  • Page 9: Takeback Services

    These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

  • Page 11: Chapter 1: Product Introduction

    Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 12: Monitor Introduction

    Monitor introduction 1.3.1 Front view Power button/power indicator • Turns the monitor on/off. Press and hold this button for 0.6 seconds will shut down the monitor. • The color definition of the power indicator is as the below table. Status Description White Amber...
  • Page 13 Enacts the selected OSD menu items. • Increases/Decreases values or moves your selection up/down/left/ right. • Push the 5-way button down for over 5 seconds to toggle the Key Lock function between on and off. ASUS PA248CRV Series LCD Monitor...

  • Page 14: Back View

    1.3.2 Back view ＨＤＭＩ－１ ＨＤＭＩ－２ Kensington lock slot. Power switch: Press the switch to turn on/off power. AC-IN port: This port connects the power cord. HDMI-1 port: This port is for connection with an HDMI compatible device. HDMI-2 port: This port is for connection with an HDMI compatible device.

  • Page 15: Other Function(S)

    Power Saving to Deep Level, all the connected monitors will display the same content at the same time (clone). Note: Input port will be fixed (no auto detection) when DP out cable is plugged. 1920 x 1200 @60Hz ＨＤＭＩ－１ ＨＤＭＩ－２ 1920 x 1200 @60Hz ＨＤＭＩ－１ ＨＤＭＩ－２ ASUS PA248CRV Series LCD Monitor...

  • Page 16: Chapter 2: Setup

    Fix the base to the arm by fastening the bundled screw. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ＨＤＭＩ－１ ＨＤＭＩ－２ Base screw size: M6 x 16.2 mm. ASUS PA248CRV Series LCD Monitor...

  • Page 17: Detaching The Arm/Base (For Vesa Wall Mount)

    Detaching the arm/base (for VESA wall mount) The detachable arm/base of this monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Press the release button, and then detach the arm/base from the monitor (Figure 1).

  • Page 18: Adjusting The Monitor

    +/- 130 mm. -5° ~ +23° 30° 30° 0° (Tilt) (Swivel) (Tilt) (Swivel) 130mm (Height adjustment) (Pivot) (Height adjustment) (Pivot) It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS PA248CRV Series LCD Monitor...

  • Page 19: Connecting The Cables

    USB Type-A jack. When these cables are connected, you can choose the desired signal from the Signal item in the OSD menu. If you need to replace the power cord or the connection cable(s), please contact ASUS customer service. Chapter 2: Setup...

  • Page 20: Turning On The Monitor

    Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS PA248CRV Series LCD Monitor...

  • Page 21: Osd (On-Screen Display) Menu

    Menu (5-way) button up/down to change the settings of the selected function. To exit and save the OSD menu, press the button or move the Menu (5-way) left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4. ASUS PA248CRV Series LCD Monitor...

  • Page 22: Osd Function Introduction

    Chapter 3: General instructions 3.1.2 OSD function introduction Preset This function contains 10 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. Preset Signal Brightness PA248CRV Native Mode...
  • Page 23 Fixed Enable Fixed Gamma (2.2, 2,6 Fixed (2.2) (2.2) (2.2) (2.4) (DICOM) (2.4) (2.2) only) Input Enable Enable Enable Enable Enable Enable Enable Enable Enable Range (Auto) (Auto) (Auto) (Auto) (Auto) (Auto) (Auto) (Auto) (Auto) ASUS PA248CRV Series LCD Monitor...
  • Page 24 Palette Set a desired color setting from this menu. Preset Signal Brightness PA248CRV Native Mode DisplayPort 1920 x 1200_60Hz Brightness Preset Contrast Saturation Palette Color Temp. Image Gamma RGB Tuning QuickFit Plus Black Level Signal Back Enter Exit • Brightness: The adjusting range is from 0 to 100. •...
  • Page 25 Input Range: To map signal range with whole black to white presented range of display. • Blue Light Filter: Adjust the strength of blue light filter. To activate this function, you need to do the following: disable HDR on your device. ASUS PA248CRV Series LCD Monitor...
  • Page 26 QuickFit Plus In this function, you can use different kinds of alignment patterns. Preset Signal Brightness PA248CRV Native Mode DisplayPort 1920 x 1200_60Hz Safe Area Preset Center Marker Customization Palette Ruler Image QuickFit Plus Signal Back Enter Exit • Safe Area: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel.
  • Page 27 • Auto Detection: automatically detects other active signals when current input signal is inactive. To activate this function, you need to do the following: remove the connection of Daisy-Chain DisplayPort output (to disable MST output). ASUS PA248CRV Series LCD Monitor...
  • Page 28 Settings Allows you to adjust the system. Preset Signal Brightness PA248CRV Native Mode DisplayPort 1920 x 1200_60Hz Media sync Settings Power Saving OSD Setup Shortcut Sound DisplayPort Stream Key Lock Power Indicator Language Back Enter Exit • MediaSync: Turn on VESA MediaSync support. MediaSync can only be activated within 48Hz ~ 60Hz.
  • Page 29 English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungrian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesian, Persian, Ukrainian. • Information: Shows the monitor information. • All Reset: “Yes” allows you to restore the default settings. ASUS PA248CRV Series LCD Monitor...
  • Page 30 Shortcut Defines the functions for Shortcut 1 and 2 buttons. Preset Signal Brightness PA248CRV Native Mode DisplayPort 1920 x 1200_60Hz Shortcut 1 Settings Shortcut 2 Shortcut Back Enter Exit • Shortcut 1/Shortcut 2: Selects a function for Shortcut 1 and 2 buttons.

  • Page 31: Specifications Summary

    531.69 mm x 529.2 mm x 190.37 mm (highest) with stand 531.69 mm x 399.2 mm x 190.37 mm (lowest) 610 mm x 414 mm x 126 mm (package) Weight (Esti.) 5.9 kg (Net); 4.2 kg (Net, without stand); 8.5 kg (Gross) ASUS PA248CRV Series LCD Monitor 3-11...
  • Page 32 Multi-languages 22 languages (English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesian, Persian, Ukrainian) Accessories Quick start guide, warranty card, power cord, HDMI cable (optional), DisplayPort cable (optional), USB C to C cable (optional), color calibration testing report, ProArt welcome card Compliance and Standards...

  • Page 33: Outline Dimensions

    Outline dimensions 529.2 [20.83] 179.01 [7.05] 350.18 [13.8] 17.5 [.69] [12.76] 190.37 [7.50] [5.12] 348.05 [13.70] 369.9 [14.56] 179.01 [7.05] 100 [3.94] ASUS PA248CRV Series LCD Monitor 3-13...

  • Page 34: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. •...

  • Page 35: Supported Operating Modes

    65.29(N) 60.00(P) 142.25 1920 x 1080 67.5(P) 60.00(P) 148.5 1920 x1200 74.038(P) 59.95(N) (Reduced Blanking) 1920 x1200 94.04(N) 74.94(P) 245.25 “P” / “N” stands for “Positive” / “Negative” polarity of incoming H-sync/V-sync (input timing). ASUS PA248CRV Series LCD Monitor 3-15...
  • Page 36 When the monitor is operating in the video mode (ie, not displaying data), the following high definition modes shall be supported in addition to standard definition video. Resolution Vertical Frequency (Hz) 1920 x 1080p 24Hz 25Hz 30Hz 50Hz 59.94Hz 60Hz 50Hz 1920 x 1080i 59.94Hz...
