smartheart 01-742T Quick Start Manual

Talking

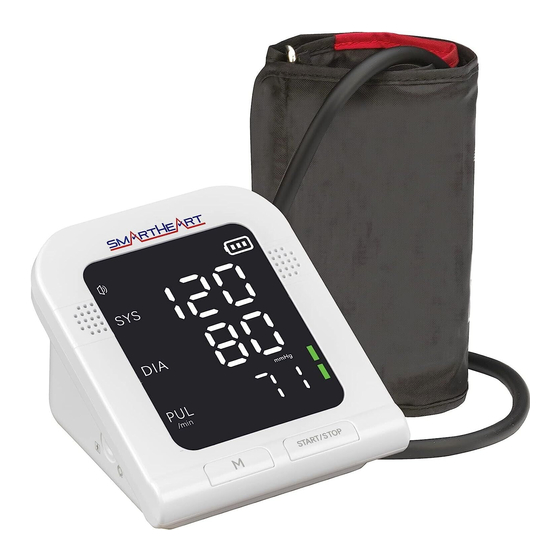

Blood Pressure Arm Monitor
Model # 01-742T
THIS QUICK START GUIDE IS INTENDED
AS A SUPPLEMENT TO THE INSTRUCTION
MANUAL. PLEASE READ THE COMPLETE
MANUAL PRIOR TO FIRST USE.
Before applying your blood pressure cuff, be sure you
have selected the appropriate size cuff:
Wide-Range Adult Cuff fits arm circumference:
8.6"—16.5" (22—42 cm).
Additional cuffs are available for order on the included
order form or by calling 866-326-1313.
A 15 minute resting period is needed to stabilize the
body prior to taking a reading. No eating, drinking or
smoking while resting.

Applying the Arm Cuff

Remove any constrictive clothing or
jewelry that may interfere with cuff
placement. Wrap the cuff snugly
around your left arm. Position the
cuff's bottom edge half an inch
ABOVE the elbow joint. Position the
air tubing over the main artery (on
the inside of your arm). You should
be able to insert one finger between
your arm and cuff.
IF YOU HAVE ANY QUESTIONS OR ARE EXPERIENCING DIFFICULTIES, PLEASE CALL THE TOLL-FREE
CUSTOMER SERVICE HELP LINE FOR FURTHER ASSISTANCE AT 1-866-326-1313.

Taking Your Measurement

Please read the preceding portions of this manual prior to
taking your first reading.
Reminder, it is important to avoid smoking, eating, taking
medication, alcohol consumption or physical activity 30
minutes prior to taking a reading.
User will default to the last User Bank used; consult the
manual for instructions on how to change the User to
ensure accurate memory
storage and review.
1. Position the monitor
on a flat, stable
surface with the
digital display in view.
Be seated with your
feet flat on the floor
and legs uncrossed.
2. After applying the cuff insert
the cuff tubing connector into
the port on the left side of your
monitor.
3. Rest your elbow on a solid
surface with your palm facing
upward. Elevate your arm so
that the cuff is at the same level
as your heart, Fig 1. Relax your
left hand.
4. Press and release the START/
STOP button to turn the unit
on; the unit will briefly flash a
self-test, Fig 2.
5. The display will briefly show
a '0' and up arrow before the
measurement begins, Fig 3.
6. As the inflation process begins,
~0.5/1-2cm the display may briefly show
a downward arrow indicating
the cuff is releasing any air
remaining in the cuff prior to measurement inflation.
7. The cuff will automatically inflate; you will see the
numbers increase on the display
screen and feel the cuff inflate.
8. When the measurement
is complete, the cuff will
automatically deflate, then your
blood pressure measurement and
pulse reading results will appear
on the display screen at the same
time, Fig 4.
9. Consult the included Instruction
Manual for information on interpreting your
reading results.
10. The reading will automatically be stored in memory,
up to 199 readings.
Select START/STOP to turn the unit off and conserve
11.
energy and battery life. The unit will automatically
shut-off approximately 1 minute after use.
Fig. 1

Please Note:

• You can stop the inflation or deflation process of the
cuff at any time by pressing the START/STOP button.
• Many factors such as genetics, age, sex, altitude,
physical activity, anxiety, muscular development,
certain medications or even the time of day can
influence blood pressure.
• Blood pressure varies from moment to moment; even
readings taken after proper rest periods can vary.
Fig. 2
Home blood pressure readings may vary as much as
10-20 points from ones taken at your doctor's office.
• Variations in your individual readings should only be
interpreted by your physician or trained health care
professional.
• We encourage you to consult with your physician
to achieve the maximum benefit from your blood
pressure monitor.
Fig. 3
Fig. 4
#93-2185 07/2022
©2022 Veridian Healthcare
