mettatec X5 Configuration Manual

Multi-band gnss receiver
Hide thumbs Also See for X5:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

NEW
X5
Multi-band
GNSS Receiver
PPK + RTK + NTRIP
Fixed Solution
4

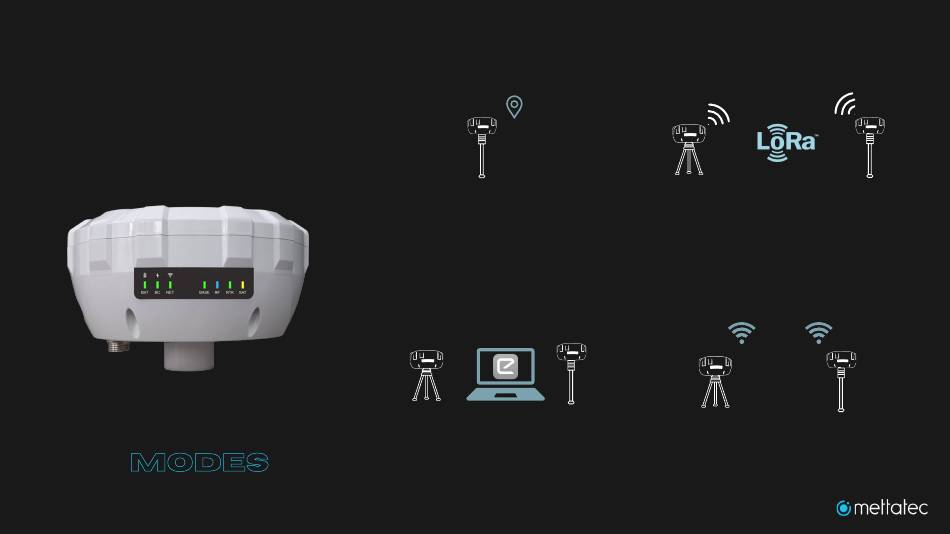

Operation
modes
1
Standalone module
Independent device without receiving
corrections from an external source.
Suitable for applications where the required
accuracy is relatively low.
2
PPK Base & rover
Data collected from the receiver is later
processed to improve the position
accuracy. The use of a GNSS data
processing software is required.
3
RTK Lora Base & rover
The base station transmits correction
data in real-time to the receiver through
a LoRa connection with a range of up to
10 km (sight line) at 433/915 MHz.
4
RTK NTRIP Base & rover
The base station transmits correction
data in real-time to the receiver
through Internet connection with
much greater range

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X5 and is the answer not in the manual?

Questions and answers

Related Manuals for mettatec X5

Summary of Contents for mettatec X5

  • Page 1 Multi-band Standalone module RTK Lora Base & rover GNSS Receiver PPK + RTK + NTRIP Fixed Solution The base station transmits correction Independent device without receiving corrections from an external source. data in real-time to the receiver through Suitable for applications where the required a LoRa connection with a range of up to accuracy is relatively low.
  • Page 2 Leds Description BASE: Rover mode 1 blink every 5 seconds: logging data to SD card BASE: Base mode NET: Wi-Fi & Bluetooth Blinking: Base Mode setted, a survey is being conducted RF: LoRa Radio Rx/Tx Solid: Survey completed, broadcasting RTCM correction data. Blinking: Waiting BT connection Blinking: Transmitting or Solid: Bluetooth connected...

  • Page 3: Push Button

    Once you finish, press the during 3 seconds until the BAT led push button during 5 seconds turns on. The X5 Receiver will until all lights turn off. beep three time. This mode can only be accessed through the Wi-Fi connection...
  • Page 4 Configuration STANDALONE In GNSS tab In System tab Measurement rate: 10 Hz Dynamic Model: Portable Make sure the PPK option is enabled Data format: NMEA data Enable Rover mode Mode: ROVER...

  • Page 5: Base Mode

    Configuration PPK Mode Base mode Rover mode Both modes In “GNSS” tab In “GNSS” tab In “GNSS” tab, set the data format to “RAW Data”. If it is required to connect via Bluetooth to a GIS software, select “Combinated Data”. Measurement rate: Measurement rate: 1 Hz...
  • Page 6 Configuration RTK Lora Rover mode Base mode In “GNSS” tab Both modes In “GNSS” tab In “System” tab, LoRa parameter settings Measurement rate: Measurement rate: 10 Hz should be the same for base and rover. 1 Hz Dynamic Model: Dynamic Model: Portable Stationary Make sure the PPK...
  • Page 7 HIGHLY RECOMMENDED Configuration RTK NTRIP Base mode Both modes Rover mode In “GNSS” tab In “GNSS” tab For the configuration in both modes, make sure the following parameters: Dynamic Model: Dynamic Model: In “GNSS” tab Stationary Portable Disable Rover mode Enable Rover mode Mode: BASE Mode: ROVER...
  • Page 8 Configuration RTK NTRIP Base mode Both modes Rover mode In “GNSS” tab In “GNSS” tab For the configuration in both modes, make sure the following parameters: Dynamic Model: Dynamic Model: In “GNSS” tab Stationary Portable Data format: Disable Rover mode NMEA data Enable Rover mode Mode: BASE...
  • Page 9 USB Serial Standalone module PPK Base & rover RTK Lora Base & rover RTK NTRIP Base & rover For visualizing the X5 Receiver status, you can connect the device with a USB cable in order to enter the GIS software.
