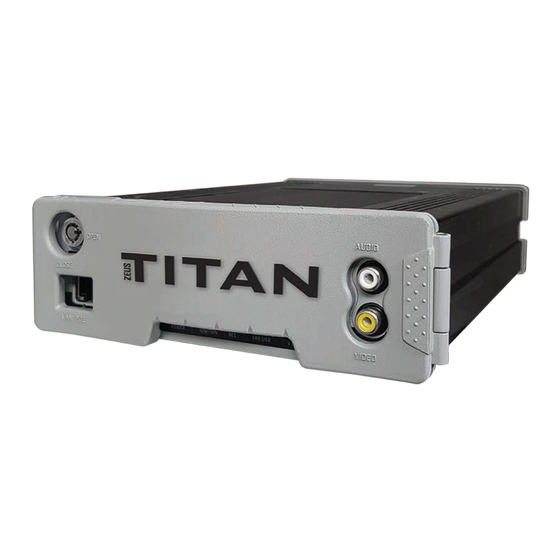

247Security ZEUS TITAN User Manual

Hide thumbs Also See for ZEUS TITAN:
Table of Contents

Advertisement

Quick Links

USER MANUAL
Zeus Titan | Desktop App
247securityinc.com
1.866.693.7492

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZEUS TITAN and is the answer not in the manual?

Questions and answers

Related Manuals for 247Security ZEUS TITAN

Summary of Contents for 247Security ZEUS TITAN

  • Page 1 USER MANUAL Zeus Titan | Desktop App 247securityinc.com 1.866.693.7492...

  • Page 2: Introduction

    The Zeus Titan DVR captures your vehicle’s video from multiple cameras and organizes the les allowing end-users to retrieve video with a few mouse clicks. Zeus Titan also makes it easy for you to access cameras and saved video in real-time.

  • Page 3: Table Of Contents

    Page 2 Overview ....................Pages 4 - 5 Operation ....................Pages 6 - 7 Con guration Zeus Titan ................Pages 8 - 11 Con guration Menus ................... Pages 12 - 36 • System Con guration Menu ..............Pages 13 - 19 •...

  • Page 4: Overview

    OVERVIEW 247securityinc.com 1.866.693.7492 Overview Front - Door Closed Front - Door Open Pg. 4 of 47 247securityinc.com | 1.866.693.7492 | 1455 Alderman Drive, Alpharetta GA 30005, USA...
  • Page 5 1.866.693.7492 Back Retrofit Notes If replacing a ZEUS PT with a ZEUS TITAN, there are a few important changes: TITAN uses a di erent power cable than PT SD Cards are not recommended as a storage media; use a DHD2 Pg.

  • Page 6: Operation

    247securityinc.com 1.866.693.7492 Operation Once your Zeus TITAN has been installed, it’s ready to start recording. VIEWING VIDEOS To view videos, retrieve the DHD media storage tray from the DVR, connect it to your computer, and open DVRViewer Pro. Refer to the DVRViewer Pro User Guide for details.
  • Page 7 OPERATION 247securityinc.com 1.866.693.7492 Gently pull media storage straight out from the bay until it is free from the rails. If swapping the drive, insert new media storage, and close the door. Turn the key to the “Lock” position. The ZEUS will now turn the HDD power on, detect the new media and start recording again.

  • Page 8: Con Guration Zeus Titan

    CONFIGURING ZEUS TITAN 247securityinc.com 1.866.693.7492 Configuring Zeus Titan Your 247 Security installer will con gure your TITAN DVR as part of the installation process. Changes to the initial con guration can be made by following these steps. 1. Connect TITAN to your PC or laptop, with the supplied Ethernet Crossover Cable 2.
  • Page 9 CONFIGURING ZEUS TITAN 247securityinc.com 1.866.693.7492 2. STATIC IP SETUP Both your PC/Laptop and the TITAN need to be set up with “static” IP addresses to connect to each other. TITAN’s default IP address is 192.168.1.100 SETTING UP YOUR PC - WINDOWS 7...
  • Page 10 Note: If the steps in setting up your PC do not work, contact you IT department concerning your PC, this is a one-time setup to con gure the Zeus Titan DVR. You may need to return your computer to dynamic settings by selecting “Obtain an IP address automatically”.
  • Page 11 CONFIGURING ZEUS TITAN 247securityinc.com 1.866.693.7492 3. RUN DVRVIEWER PRO Refer to the DVRViewer Pro User Manual for details on downloading, installing, and launching the program on your PC or laptop. Verify that the DVR is powered up – the Power and Ignition LEDs should be on and solid.

  • Page 12: Con Guration Menus

    CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 Configuration Menus Verify that the DVR is powered up – the Power and Ignition LEDs should be on and solid. The bus can be idling or in “Accessory” mode. The DVR setup is divided into six major sections: System, Camera, Sensor, Network, Status and Tools.

  • Page 13: System Con Guration Menu

    CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 SYSTEM CONFIGURATION MENU The System menu is where you con gure general parameters such as the name of the DVR, time zone, shutdown delay, etc. Also, the G-Force set-up parameters are here if the Drive-Safe module is attached to the DVR.
  • Page 14 1.866.693.7492 DVR SERVER NAME DVR Server Name allows the end-user to individually assign each ZEUS TITAN in their network a unique name. This practice makes it possible to di erentiate and communicate with each individual DVR system. DVRViewer Pro can communicate and con gure multiple ZEUS TITAN systems by scanning all ZEUS servers on the network, should they be connected via wireless network access points.
  • Page 15 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 SHUTDOWN DELAY (S) This setting controls how long the TITAN will continue to operate and the cameras will continue to record after the ignition key is switched to the OFF position. For example, in situations where the bus is parked in a “No idle zone”...
  • Page 16 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 EVENT MARKER This drop-down list selects the sensor to use for the event marker. The Event Marker (Sensor 1) is the default sensor to be used with the included event marker cable unless there is a required custom solution to use a di erent sensor.
  • Page 17 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 ENABLE FILE ENCRYPTION & FILE ENCRYPTION PASSWORD This is a global setting that, when enabled, password-protects saved video clips. When these encrypted les are opened, the password will be required. This is an additional security feature to keep unauthorized users from viewing the video.
  • Page 18 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 MAXIMUM OF RECORDING HOURS PER DAY It’s safe to keep this set to 10 hours. Should the full day’s recording exceed 10 hours, ZEUS TITAN will delete the oldest les from SSD disk ENABLE DHD RECORDING Check this box for DHD removable drives.
  • Page 19 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 DRIVE-SAFE G-FORCE SET-UP If the TAB101 option is checked as listed above, the G-Force parameters will then appear on the system set-up page after a system re-boot. The TAB101 detailed settings are not to be reset except by a quali ed technician or installer. Pg.19 of 47 247securityinc.com | 1.866.693.7492 | 1455 Alderman Drive, Alpharetta GA 30005, USA...

  • Page 20: Camera Con Guration Menu

    CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 CAMERA CONFIGURATION MENU The TITAN DVR can record up to 16 cameras. Select a camera by clicking on its tab. Pg.20 of 47 247securityinc.com | 1.866.693.7492 | 1455 Alderman Drive, Alpharetta GA 30005, USA...
  • Page 21 CAMERA ROLE & ENABLE STOP ARM CAMERA Leave the setting as Normal, unless the camera is a stop-arm camera, and is to be used for automatic SAV detection. Check the box to enable. Consult with the installer and 247Security regarding automatic SAV detection.
  • Page 22 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 NO RECORDING - This mode disables recording of the camera input. The camera is still accessible through Live Look-In from DVRViewer Pro. MAIN AND SECOND CAMERA STREAMS Note: It is best to leave these settings per the installer, or as indicated below. Second Stream functionality can a ect aspects of the main stream.
  • Page 23 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 MAIN STREAM RESOLUTION The highest resolution creates the best image but the largest le sizes. “1920x1080” is recommended, also known as “1080p”. SECOND STREAM RESOLUTION A medium resolution is recommended. MAIN STREAM FRAME RATE Frame rate de nes the level of detail in the recorded video, and like RESOLUTION above, the higher the detail = larger les sizes.
  • Page 24 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 MAIN STREAM BIT RATE The default and recommended bit rate is 4.0Mbps for cameras 1 and 3, 2.0Mbps for cameras 2 and 4, and 1.75Mbps for cameras 5-8. Bit rates are a ected by other resolution settings: higher resolutions require higher bit rates to maintain picture quality.
  • Page 25 GPS data is still recorded in a log le on the video storage media. Speed can be displayed in “mph” or “km/h”. Contact 247Security Inc. for further information on GPS products. Pg.25 of 47 247securityinc.com | 1.866.693.7492 | 1455 Alderman Drive, Alpharetta GA 30005, USA...
  • Page 26 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 SHOW GPS COORDINATE ON OSD Checking this box will add the vehicle’s GPS coordinates to the video stream, displayed as longitude and latitude. If this option is not enabled, GPS coordinates are still recorded in a log le on the video storage media.

  • Page 27: Sensor Con Guration Menu

    CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 SENSOR CONFIGURATION MENU TITAN has 9 sensor inputs that can be recorded and displayed on-screen. For example: the Event Marker, turn signals, brakes, etc. A unique name can be assigned to any sensors listed in the menu. This diagram shows the factory default settings.

  • Page 28: Network Menu

    Do not make changes unless you have speci c knowledge of each setting. The default Ethernet IP address of ZEUS TITAN is “192.168.1.100”. It must be modi ed if there are more than two vehicles with DVRs, or if there is an external WiFi bridge.

  • Page 29: Status Menu

    CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 STATUS MENU This tab displays the current system con guration and a real time heath status summary of the DVR. There are no actionable or optional elds on this page. Users will only access this page under the direction of Tech Support.

  • Page 30: Tools Menu

    CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 TOOLS MENU The Tools tab has a few options to assist in your DVR con gurations, and to update DVR and MCU rmware. There may be future rmware releases that contain new features or improvements. Contact 247 Security Inc for the latest information on rmware updates. DOWNLOAD CONFIGURATION This option will save you time if multiple ZEUS systems need to be con gured.
  • Page 31 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 UPLOAD CONFIGURATION This option selects a backup con guration le, uploads it to the DVR, and overwrites all the current settings with the settings from the con guration le. The only value you may need to change is the “DVR Server name” under the System tab. Note: All video data on the DVR may be lost if the DVR Name is changed if the ENABLE DELETING ALL FILES WHEN DVR SERVER NAME CHANGES is selected.
  • Page 32 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 FIRMWARE UPDATE NOTE: THIS INFORMATION IS FOR REFERENCE ONLY! The update process should only be done by a quali ed technician under the direction of technical support. You can seriously impair the functionality of your TITAN. Firmware updates may contain new features and improvements.
  • Page 33 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 5. Verify Firmware Update a. From your browser, go to http://192.168.1.100/, or use DVRViewer Pro. b. Verify the new rmware version on the Status page. 6. Recon gure TITAN a. Change all settings to the original elds, as you have recorded, or… b.
  • Page 34 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 • Remove Hard Drive / DHD a. If DVR is running, turn the key lock to the OPEN position and wait until DVR shuts down. Both POWER and REC LEDs must be o . If the vehicle is idling, the IGNITION light will be on. b.
  • Page 35 CONFIGURATION MENUS 247securityinc.com 1.866.693.7492 g. After about 6 minutes, more messages will display, such as: h. Remove the Force Power-on plug and wait for 60 seconds until TITAN restarts. Click “Close” to close the browser page. Re-open your browser, clear the cache and browsing history. k.
  • Page 36 Use the POE cable, (see 10/100BASET-LAN CONNECTOR and POE Connector on page 42) and with the Client AP connect to the TITAN. b. Check the WiFi communication between TD and the Zeus TITAN: Connect to the bus through the TD server and open Live View.

  • Page 37: Reference Appendix

    At the boot up stage When the system boots up, Zeus Titan will do a self-check to make sure all systems are operational. If DHD recording is enabled, the SSD will be selected as recording disk and the HDD will be powered o if detected.
  • Page 38 After Live View or Play Archive is disconnected, the le copy from SSD to HDD will resume. If you are set up with TouchDown, Zeus TITAN will start uploading requested video and data from the HDD to your TouchDown server. Note that this feature can be enabled/disabled on the setup page.
  • Page 39 REFERENCE APPENDIX 247securityinc.com 1.866.693.7492 The internal battery is charging and will go out when fully charged. MODEM Indicates that the cellular modem is active. Requires a data contract and DVP2. LOCK AND DHD ON/OFF The OPEN/LOCK mechanism has two functions: •...
  • Page 40 REFERENCE APPENDIX 247securityinc.com 1.866.693.7492 MEDIA STORAGE REMOVAL Before swapping DHD drives, refer to “ENABLE DELETING ALL FILES WHEN DVR SERVER NAME CHANGES” on page 18. Depending on settings, you may lose video on the replacement DHD. The media storage (DHD) is hot swappable and can be removed and inserted without turning the vehicle ignition o .
  • Page 41 REFERENCE APPENDIX 247securityinc.com 1.866.693.7492 WIRELESS VIDEO RETRIEVAL Refer to the TouchDown manual. Pg.41 of 47 247securityinc.com | 1.866.693.7492 | 1455 Alderman Drive, Alpharetta GA 30005, USA...

  • Page 42: Connections

    CONNECTIONS 247securityinc.com 1.866.693.7492 Connections 10/100BASE-T LAN CONNECTOR and POE Connector The DVR has a 10-pin RJ50 port, labeled as “LAN” and has a default static IP address of 192.168.1.100. The port is used to connect to the DVR for Setup, Live View and Video PlayBack. Description Signal Pin Out...
  • Page 43 REAR CONNECTIONS POWER and BATTERY Loopback (UPS operation) The ZEUS TITAN has a built-in intelligent power circuit that can operate from +6.5v ~ +16V DC-IN. A constant 12v Ignition and Ground are required. The DVR is energized by the vehicle’s ignition signal and triggers start up, power shut-down delay and the timing circuitry.
  • Page 44 1.866.693.7492 Camera Connectors The ZEUS TITAN supports a maximum of 16 cameras. Eight cameras use Micro- t connectors that carry video, audio, and infrared illumination. Also included in each camera connection is DV12V Out to power the camera. You can refer to the rear cover of the DVR for the camera assignments of each connector.

  • Page 45: Speci Cations

    D1 (720x480), CIF (360x240), DCIF (640x480) con gurations. Compression The ZEUS TITAN uses a modi ed h.266 high performance video compression standard to optimize the video/audio data stream so that it can be sent over a network or stored directly on a local disk.
  • Page 46 SPECIFICATIONS 247securityinc.com 1.866.693.7492 ETHERNET • 10/100 Base-T Ethernet port • IEEE 802.3u 100BASE-T Fast Ethernet compatible • POE (Power Over Ethernet) SENSORS Up to 9 sensors can be connected (Five Standard). ALARMS Up to 4 alarms can be connected. PHYSICAL SPECIFICATIONS Housing •...
  • Page 47 SPECIFICATIONS 247securityinc.com 1.866.693.7492 Input Power Range • +8 VDC ~ +16 VDC normal operating voltage • UPS for out of range backup power • Over voltage protection up to 110VDC Ignition Signal / Power Down Timer • Software con gurable delay power o signal from 1- 14400 seconds (4 hours) •...
  • Page 48 247securityinc.com 1.866.693.7492 USER MANUAL 247securityinc.com | 1.866.693.7492 | 1455 Alderman Drive, Alpharetta GA 30005, USA...
