Summary of Contents for AirCom AST30

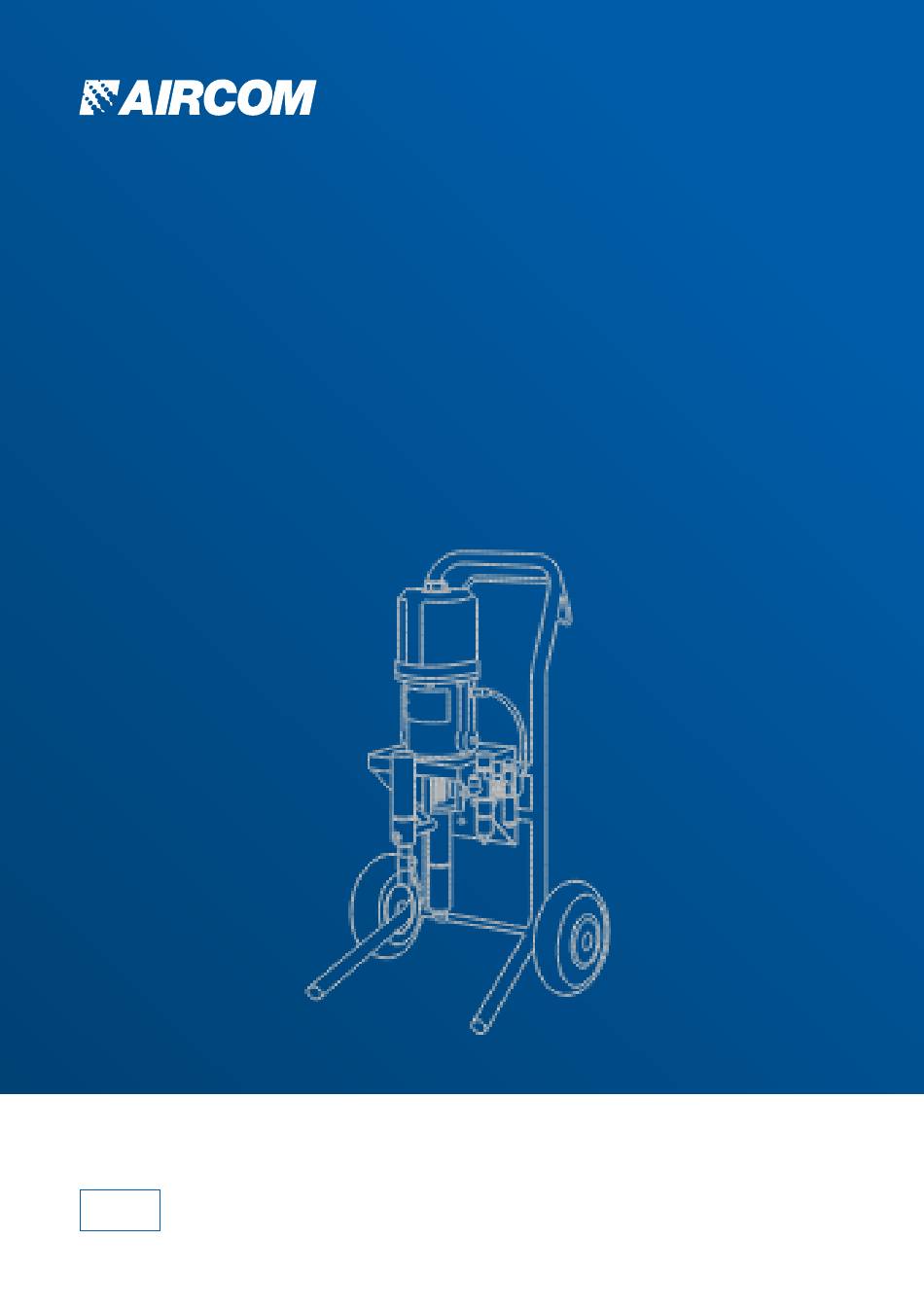

- Page 1 FEED PUMPS AST30 Instruction manual mod. AST30 aircom.it...
-
Page 2: Available Models
AVAILABLE MODELS mod. AST40 Airless pump with flow rate of 6.5 l/min AIRCOM - 2022 - v. 1.0 ®... - Page 3 Anomaly resolution Scheduled maintenance Spare parts and components Disposal and Support WARNINGS! Carefully read and follow all instructions and safety precautions before using the product. MANUALS Our manuals are available at aircom.it/en/support/manuals/ Or, by scanning the QR Code on this page.
- Page 4 Replace the nameplate and any removed, damaged or illegible stickers. OBBLIGO DI IMPIEGO DI OCCHIALI E MASCHERINA aircom.it...

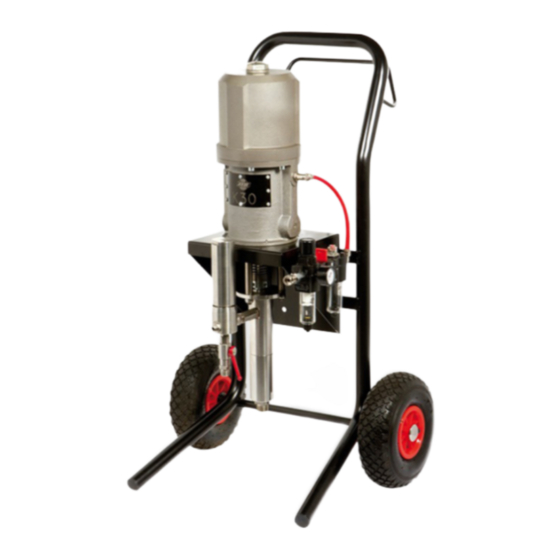

- Page 5 The equipment covered in this manual is a painting unit which allows you to spray paint any type of material. Characterized by considerable practicality, versatility and ease of use, the AST30 employs a pneumatically operated high-capacity piston pump unit. The airless spray system allows to considerably reduce the paint mist and to guarantee a great transfer efficiency (over 80%).
-
Page 6: Technical Features
All gaskets are of a special type with high quality and high resistance; the valves are in stainless steel, the seats are in hard metal. FEATURE AST30 CAPACITY 6.5Lt/min. 30:1 PRESSURE RATIO... - Page 7 PRODUCTS AND DIMENSIONS The AST30 painting units are designed for painting large surfaces and for uses such as: painting on behalf of third parties, shipyards, large and medium-sized carpentry shops, industrial body shops, mechanical constructions in general. The products that can be supplied are: high solid paints, normal paints, primers and glues.
- Page 8 The unit is supplied with a condensate filter with regulator, it is recommended to feed with a pressure of 8 bar Max. It is recommended to use dry compressed air for best painting results. aircom.it...
- Page 9 • Pay close attention to the writing on the pipes. • Do not exceed the maximum pressure indicated by the manufacturer. • Given the high power of the pump (up to 240bar), we recommend the use of certified and tested guns up to 300 bar. aircom.it...
- Page 10 • Never point the paint gun at the human body or at animals. • Do not modify or alter the equipment as supplied; in addition to being able to cause malfunctions, or worse, even dangerous failures, you would invalidate the guarantee. aircom.it...
- Page 11 • Close the paint return cock very slowly. • Discharge the product contained in the pipes by pressing the gun lever. • Thoroughly clean the unit. NEVER OPEN the return valve before having turned the pressure adjustment handwheel to minimum. aircom.it...
-
Page 12: Emergency Situations
EMERGENCY SITUATIONS FIRE: Use powder extinguishers, which must be located near the equipment as required by LAW (Legislative Decree 81/08 safety in the company) DO NOT USE WATER. Personnel must be trained to know how to operate under such conditions. aircom.it... -
Page 13: Maintenance
Routine maintenance of the AST30 system is very simple and does not require particular interventions as the mechanical components of the system are lubrication-free. - Page 14 7. Clean the line filter by disassembling and washing it, paying particular attention to the filter sieve and the gun. 8. Carefully clean the inside of the product passage gun head. aircom.it...
-
Page 15: Filter Replacement
2 bar (check that the stem starts to move), then turn the gasket holder cup clockwise. For slight leaks (usually after 50/80 hours of work) a slight pressure on the gasket holder cup is sufficient. Be very careful not to block the stem. aircom.it... - Page 16 • Clean tube and filter. • Spray gun nozzle hole • Clean the nozzle needle blocked by dry paint. and cap without using metal objects. aircom.it...
-
Page 17: Scheduled Maintenance
Operations to be performed with the equipment stationary without carrying Check if the screws are fixed very well out work activities Check pneumatic connection’s Check pump membrane wear Check pump shaft wear (*) Operation to be performed just from trained and professional operators aircom.it... - Page 18 FEED PUMPS AST30 Spare parts and components aircom.it...
-
Page 19: Spare Parts
Air closure rubber kit Control plate Exchanger block Engine piston Piston rod Motor stem guide bushing Rubber sealing ring Seeger ring O-ring seal O-ring seal Body Pump Post data plate Front logo plate Noise panel Swivel fitting diam12 M3/8” Complete air motor aircom.it... -
Page 20: Components List
Stainless steel filter extension Kit of 10 copper gaskets 3/8” G Copper washer + Gasket teflon Shirt Stainless steel pump stem Washer Lower gasket pack kit Kit of 3 balls 5/16” Stem valve Complete suction valve Stainless steel color pumping kit aircom.it... - Page 21 Stainless steel spring 60 mesh sieve filter Support for stainless steel filter Line filter teflon gasket Stainless steel filter body Nipple MM 1/4” stainless steel MFG 3/8” stainless steel adapter M1/4” stainless steel cap Stainless steel ¼” high pressure tap kit aircom.it...
- Page 22 U fitting M1” x F ¾” swivel Return pipe PAINT SUCTION SYSTEM Stainless steel paint suction hose F 3/4'' Stainless steel return pipe F20x2 90° F1/2 bare bell Disc filter 30 ME Stainless steel spring for bell Disc filter 50 ME aircom.it...
-
Page 23: General Assembly
Bracket for wall pump Wheel Split pin Pressure regulator 2006 version GENERAL ASSEMBLY Rilsan tube 10x12 mm Nickel plated tie rod Split pin Nut for tie rod (N.3pcs) Burnished M6x12 Allen screw for pump on cart (N.6 pcs ) aircom.it... - Page 24 DOES NOT CONTAIN POLLUTING OILS but the waste paints must in any case be disposed of by authorized consortia. Do not throw in common waste. Do not disperse in the environment. SUPPORT DO YOU NEED HELP? We are at your disposal. +39 0124 5154 44 aircom@aircom.it Online support aircom.it...
- Page 25 AIRCOM SRL © 2022 - ALL RIGHTS RESERVED...
- Page 26 DISCOVER ALL PRODUCTS Follow us aircom.it...
