CYBEX AutoView 400 Quick Installation Manual page 2

Connecting Computers to the AutoView 400

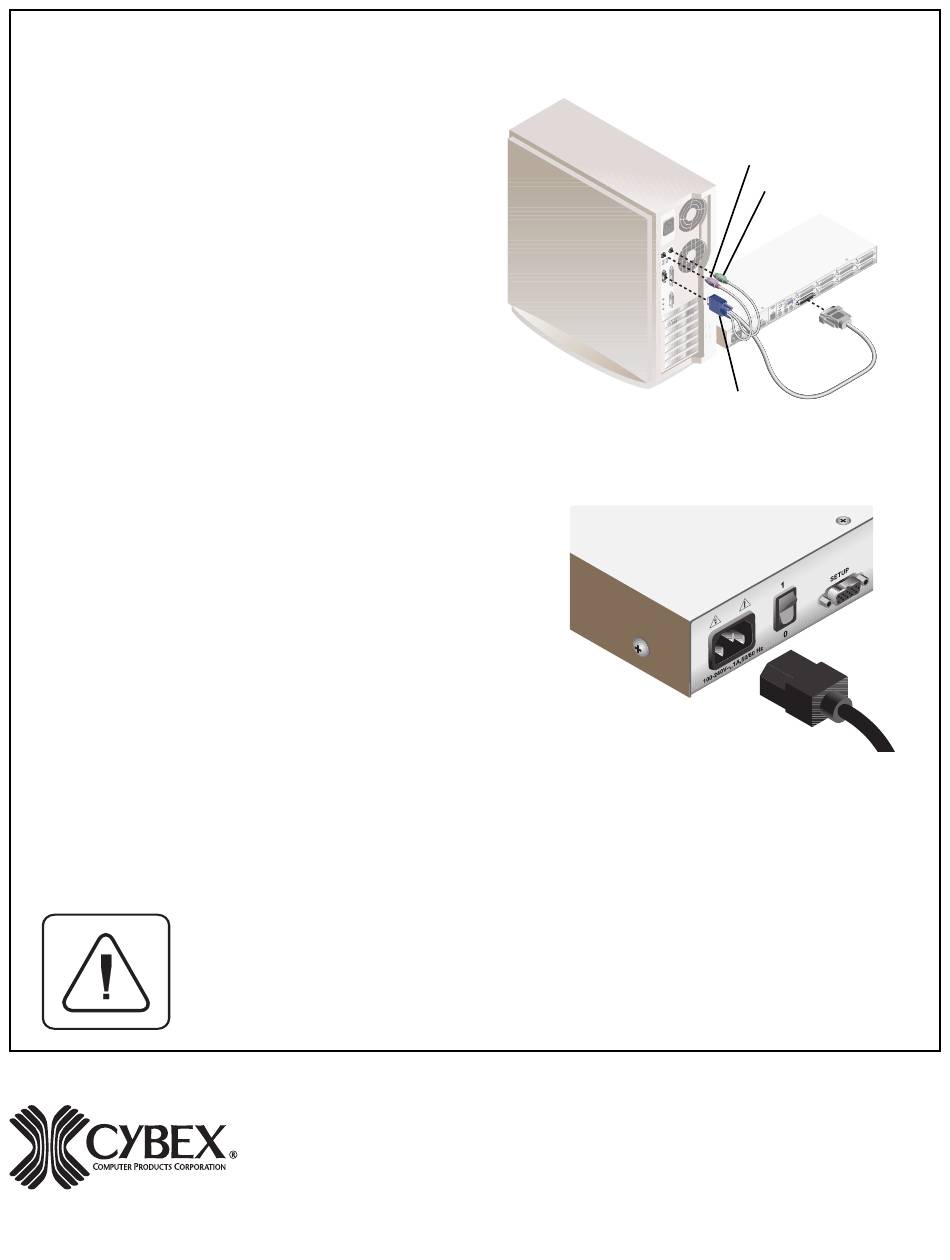

9. Locate your first input cable. It will have a 25-pin
"D" connector at one end. Plug this cable into any
lettered channel port on the rear of the AutoView
400. The other end of the input cable will have up to
five connectors depending on type. The PS/2 mouse
connector is designated by a yellow band or mouse
icon.
Use only the keyboard and mouse connectors
that are appropriate for your machine, and
leave the others unconnected.
Plug these connectors into the matching ports on
your computer.
10. Locate your next input cable. Repeat step 9 until
a l l c o m p u t e r s a r e p r o p e r l y a t t a c h e d t o t h e
AutoView 400.
11. Locate the power cord that came with your AutoView 400
unit. Plug it into the IEC power connector on the AutoView
400. Make sure that the power switch is off, then plug the
other end of the power cord into an appropriate AC wall
outlet. This outlet must be near the equipment and easily
accessible to allow for unplugging prior to any servicing of
the unit.
12. Power-up your AutoView 400 unit first, then power up all
attached computers.
13. If your remote user location is using Sun peripherals you will
need to set the AutoView 400 to recognize them before they can be used. To do this, activate the on-screen
display (OSD) by pressing either of the keyboard Control keys twice within one second. Press the Control keys
twice more to access Administrator Commands. Use your arrow keys to highlight "Administrator Functions" and
press Enter. Use the arrow keys to highlight the "Remote User" menu selection. Use the space bar to cycle
through peripheral types and select the ones appropriate to your system. Press Enter to select.
The AutoView 400 and all attached computers should be
powered-down before servicing the unit. Always disconnect
the power cord from the wall outlet.
4991 Corporate Drive
Huntsville, Alabama 35805-6201 USA
256-430-4000 (Fax) 256-430-4030
www.cybex.com
PS/2 KEYBOARD
P S / 2
V G A M O N I T O R
CIFCA CABLE SHOWN
Cybex Computer Products International Ltd.
Cybex House, Shannon Free Zone
Shannon, Co. Clare, Ireland
Tel: 00353 61 471 877
Fax: 00353 61 471 871
www.cybex.ie
590-130-001 Rev. A
M O U S E
