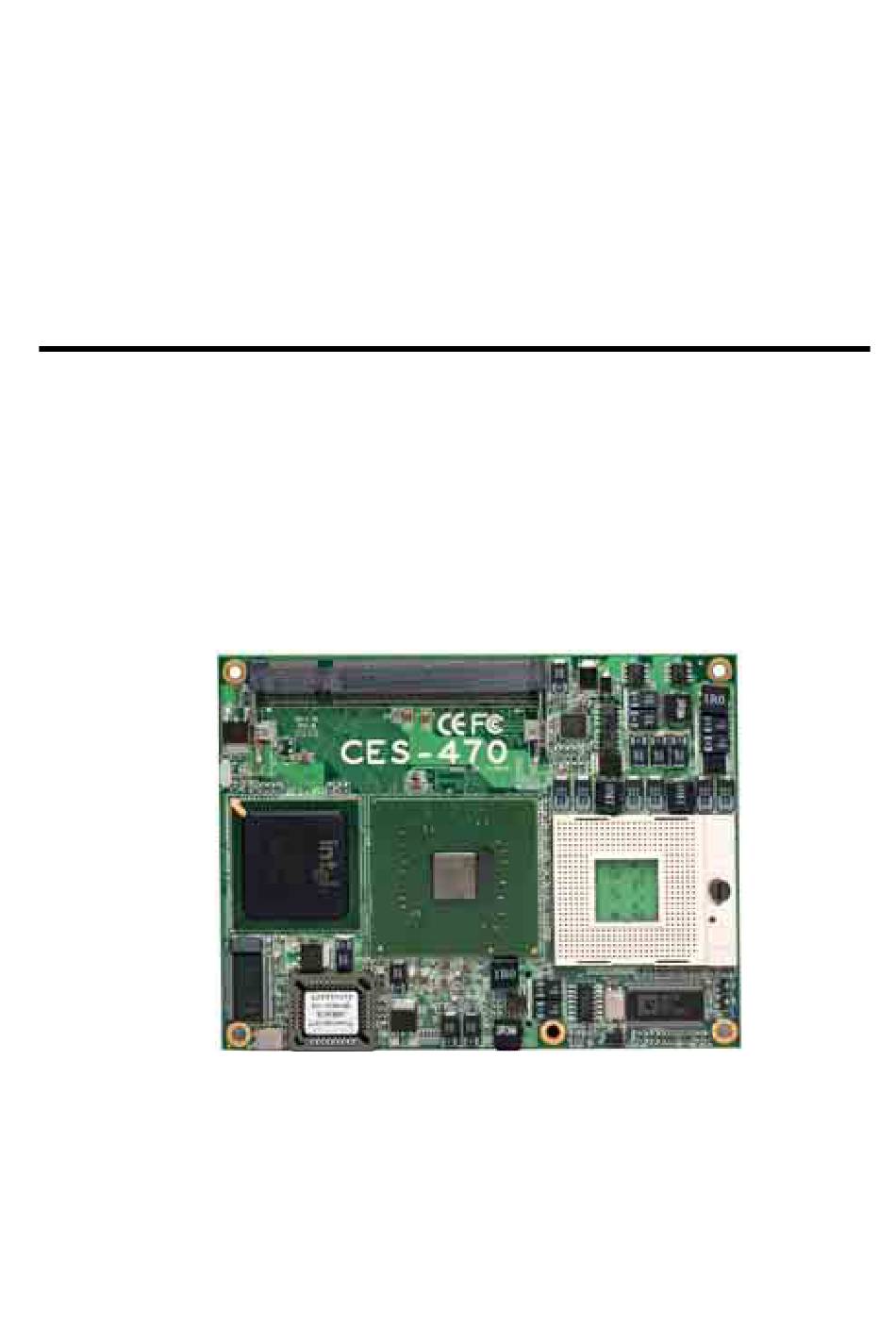

  • Page 1 CES-470 COM Express Module User’s Manual Edition 1.1 2007/6/13...
  • Page 2 CES-470 User’s Manual Copyright Copyright 2006, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    CES-470 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: CES-470 COM Express module x 1 Cable Kit: CES-470 heat sink x 1...
  • Page 4 CES-470 User’s Manual Index Chapter 1 <Introduction> ............... 6 1.1 <Product Overview> ..............6 1.2 <Product Specification> ............7 1.3 <Mechanical Drawing>............. 9 1.4 <Block Diagram> ..............10 Chapter 2 <Hardware Setup> ............ 12 2.1 <Connector Location>............. 12 2.2 <Connector Reference>............13 ............
  • Page 5 CES-470 User’s Manual (This Page is Left for Blank)
  • Page 6 Chapter 1 <Introduction> 1.1 <Product Overview> CES-470 is the new generation of the COM express module, with supporting last Intel Pentium M processors for 533MHz front side bus, Intel 915GM(E) and ICH6-M chipset, integrated GMA900 graphics, DDR2 memory, support High Definition Audio, Serial ATA, PCI Express x16, x1 interface and one 10/100M base LAN.

  • Page 7: General Specification

    CES-470 User’s Manual 1.2 <Product Specification> General Specification Form Factor COM Express module Intel® Pentium M / Celeron M processors Package type: FC-PGA478 L2 Cache: 512KB/1MB/2MB Front side bus: 400/533MHz ( The Intel® Celeron® M Processor 4xx series have been designed to work with the Mobile Intel®...
  • Page 8 CES-470 User’s Manual Audio Support HD audio or AC97 Codec Power and Environment Dimension 125(L) x 95 (H) mm Temperature Operating within 0 ~ 60P C (32 ~ 140P Storage within -20 ~ 85P C (-4 ~ 185P Ordering Code...
  • Page 9 CES-470 User’s Manual 1.3 <Mechanical Drawing>...
  • Page 10 CES-470 User’s Manual 1.4 <Block Diagram> Intel Pentium M/Celeron M Processors Intel GMA900 Graphics PCI-Express x16 1 x 200-pin DDR2 LVDS SoDIMM400/533MHz 915GM(E) up to 1GB HDTV UltraDMA100 IDE 2 x Serial ATA ports 8 x USB2.0 ports Four PCI Express x1...
  • Page 11 CES-470 User’s Manual (This Page is Left for Blank)
  • Page 12 CES-470 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> DDRII SoDIMM...
  • Page 13 CES-470 User’s Manual 2.2 <Connector Reference> 2.2.1 <Internal Connectors> Connector Function Remark Socket479 for CPU Standard DDRII 200 -pin DDR2 SoDIMM slot Standard 2.3 <CPU and Memory Setup> 2.3.1 <CPU Setup> The module comes with the socket479 for Intel Pentium M/Celeron M processors, it supports new generation of Intel Pentium M processors with 533MHz of front side bus and 2MB L2 cache.
  • Page 14 CES-470 User’s Manual 2.3.2 <Memory Setup> The module provides one 200-Pin DDRII SoDIMM slot 400/533 memory modules up to 1GB of capacity. Non-ECC, unbuffered memory is supported only. (1. Insert the DDR So-DIMM module into the socket at 45 degree)
  • Page 15 CES-470 User’s Manual 2.4 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
  • Page 16 CES-470 User’s Manual Chapter 3 <System Setup> 3.1 <Video Memory Setup> Based on Intel® 915GM(E) chipset with GMA (Graphic Media Accelerator) 900, the board supports Intel® DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory to be allocated up to 128MB.
  • Page 17 CES-470 User’s Manual Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting.
  • Page 18 CES-470 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers.
  • Page 19 CES-470 User’s Manual (This Page is Left for Blank)
  • Page 20 CES-470 User’s Manual Appendix A <Flash BIOS> A.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the...
  • Page 21 CES-470 User’s Manual -USBOC6 ATX2+ USBP4- ATX2- USBP4+ LVDD EN ETH_SPD- 3VSB USBP2- USBP2+ -USBOC2 ACLK+ ETH_LINK- USBP0- ACLK- ETH_RX0- USBP0+ LVDDCLK ETH_RX0- RTCVCC LVDDDAT ETH_TX0- -RCIN ETH_TX0- SERIRQ A20GATE ETH CTREF PCIECLK -SLPS3 -PCIECLK SATA0TXP SATA0TXN -SLPS4 SATA0RXP SATA0RXN...
  • Page 22 CES-470 User’s Manual -USBOC4 BTX2+ ETH ACT- USBP5- BTX2- -LFRAME USBP5+ LAD0 LAD1 USBP3- BKL EN LAD2 USBP3+ LAD3 -USBOC0 BCLK+ -LDRQ0 USBP1- BCLK- -LDRQ1 USBP1+ BKL CRTL LPC33CLK 5VDU 5VDU -ICHBTN -SYSRST 5VDU SMBCLK -CBRST 5VDU SMBDATA GPI11 CRT R...
  • Page 23 CES-470 User’s Manual -CBE2 PEG RXN7 PDD7 AD17 PDD6 AD19 PDD3 PEG RXP8 PDD15 AD21 PEG RXN8 PDD8 AD23 PDD9 -CBE3 PEG RXP9 PDD2 AD25 PEG RXN9 PDD13 AD27 PDD1 AD29 AD31 PEG RXP10 PDD14 -PIRQA PEG RXN10 PIORDY -PIRQB...
  • Page 24 CES-470 User’s Manual AD18 PEG TXN7 PDD5 AD20 PDD10 AD22 P66DET PDD11 PEG TXP8 PDD12 AD24 PEG TXN8 PDD4 AD26 PDD0 AD28 PEG TXP9 PDDREQ AD30 PEG TXN9 -PDIOW -PIRQC -PDDACK -PIRQD PEG TXP10 IDEIRQ PEG TXN10 PAD0 PCISCLK PAD1...

  • Page 25: Contact Information

    Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
