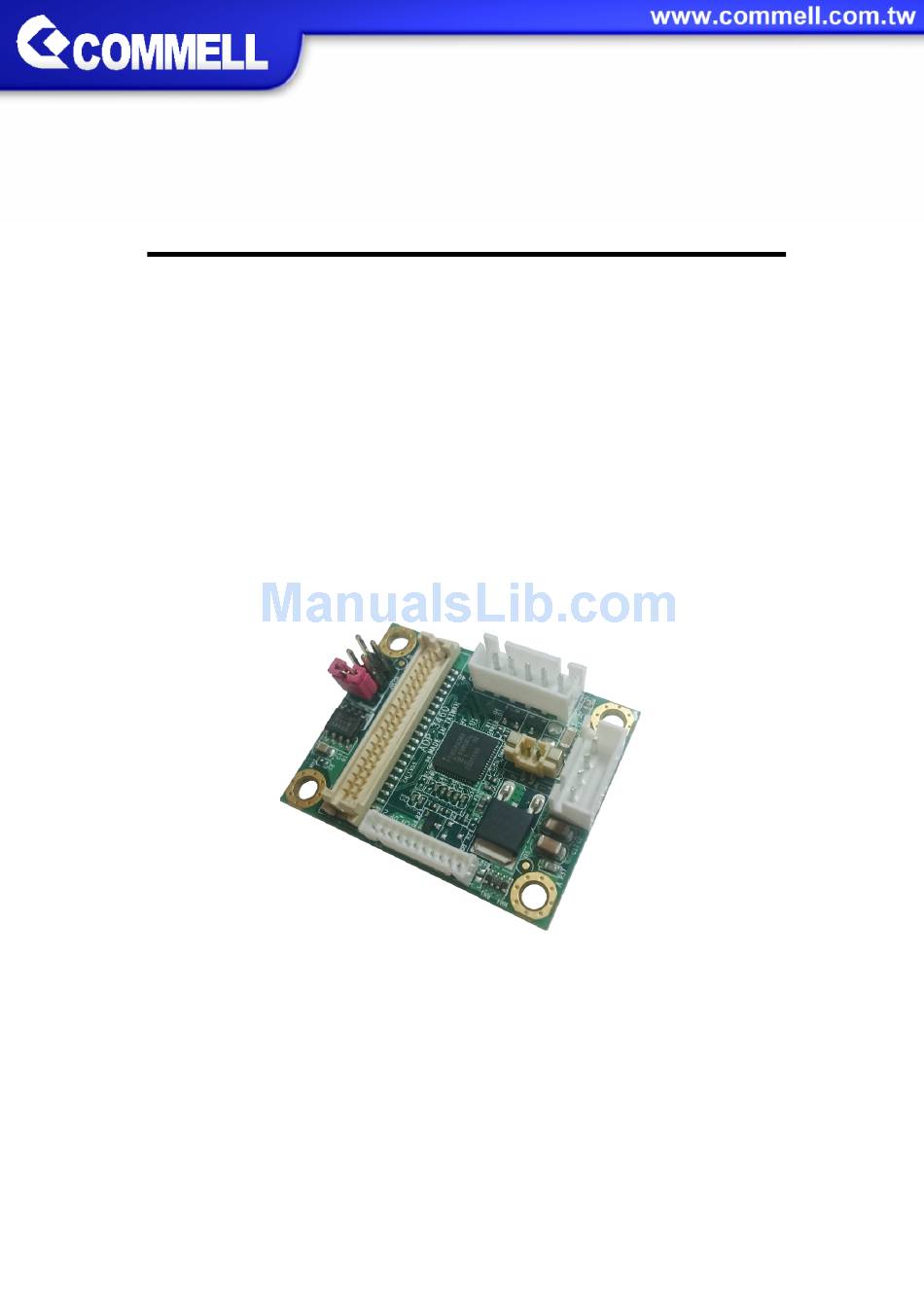

- Page 1 ADP-3460 LVDS Convert Module User’s Manual Edition 1.0 2017/03/29...
- Page 2 ADP-3460 User’s Manual Copyright Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
ADP-3460 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x ADP-3460 LVDS Convert Module 1 x CN_DP Cable 1 x SMBus Cable (OALDP2T-L12 / 10406011) (OALSMBUS-20 / 1040636) For AGP-3460 1 x Power Cable... -
Page 4: Mechanical And Environmental
Operating within 0~60 centigrade Relative Humidity 10%~90%, non-condensing Ordering Code ADP-3460:DisplayPort to LVDS Module ADP-3460E:DisplayPort to LVDS Module (For 3.5” and Pico Motherboard) *Please give us 2nd LCD panel datasheet before ordering. 2. < Connector Location and Reference > CN_DP... - Page 5 ADP-3460 User’s Manual CN_DP: DP to LVDS 11-pin connector Signal DP_0P DP_0N DP_1P DP_1N AUX_P AUX_N 3.3V CN_LVDS:LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) B_LVDS_0- A_LVDS_0- B_LVDS_0+ A_LVDS_0+...
- Page 6 ADP-3460 User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) CN_SMBUS: SMBus 2-pin connector Signal SMBCLK SMBDAT DC_IN: Power 4-pin connector Signal...
- Page 7 ADP-3460 User’s Manual 3. < Install ADP3460 > 1. Preparing the Compatible Motherboard, ADP-3460, Power supply, LCD panel and the backlight inverter. Power Supply 2. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 8 ADP-3460 User’s Manual 4. Connect LCD panel to the backlight inverter. 5. Connect LCD panel to ADP3460 6. Connect backlight inverter to ADP3460...
- Page 9 ADP-3460 User’s Manual 7. Connect Motherboard to ADP3460 8. Connect 4 pin power connector to ADP3460...
- Page 10 ADP-3460 User’s Manual 9. To connect all of the devices well. Power Supply Note: If you want to change LCD panel color or LVDS Bus, you have to connect SMBus cable to motherboard (CN_SMBUS).
-
Page 11: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc.
