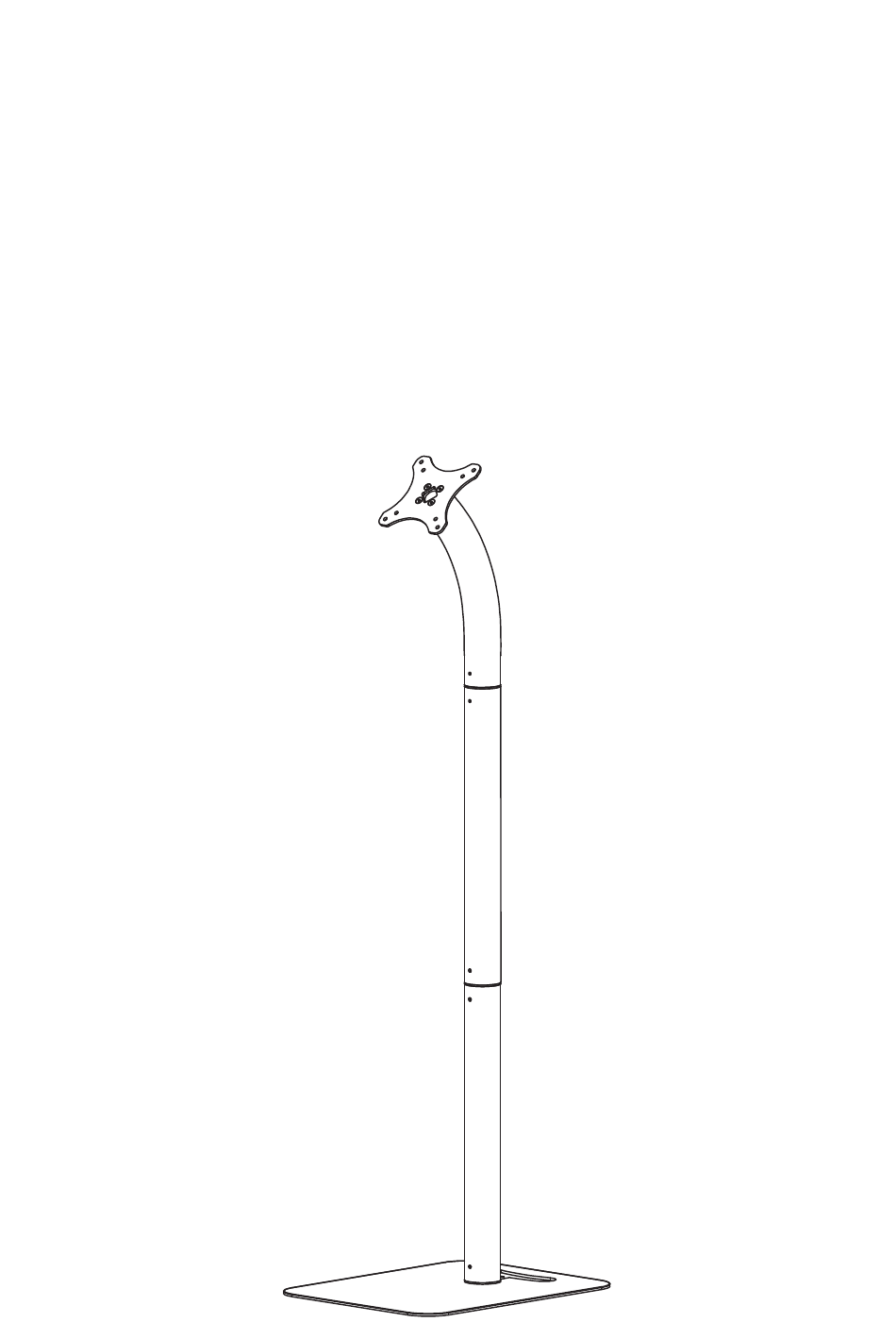

- Page 1 INSTALLATION GUIDE Fixed VESA Floor Stand V2 VB_MNT_FFS2 Ideal for VidaMount VESA Tablet Enclosures VESA 100x100 & 75x75 Compatible...
- Page 2 Installation Instructions Fixed Floor Stand V2 : VESA Compatible If charging is desired, please prepare the extension cable and / or charging solution for the VESA tablet rst. Installing the charging solution / extension cable will be easier to do now rather than later. VESA : 75 x 75 (3"...
- Page 3 3 Assemble the Floor Stand M5X8 Hex [3-A] [3-A] Countersunk Tighten with Screws 3mm Hex Wrench VESA Plate Top Tube (with preinstalled connecting collar) [3-B] [3-B, 3-C] Tighten COUNTER- Middle Tube CLOCKWISE (with preinstalled with included connecting collar) 3mm Hex Wrench [3-C] Bottom Tube...
- Page 4 5 Set VESA Device to Portrait or Landscape Choosing between Portrait and Landscape mode, rotate the VESA mounted device to its ideal position. Which position is better for your setup? LANDSCAPE or PORTRAIT? PORTRAIT LANDSCAPE Hint: The optimal position is usually determined by the app or software being run on the device.
