Page 1: Installation Guide

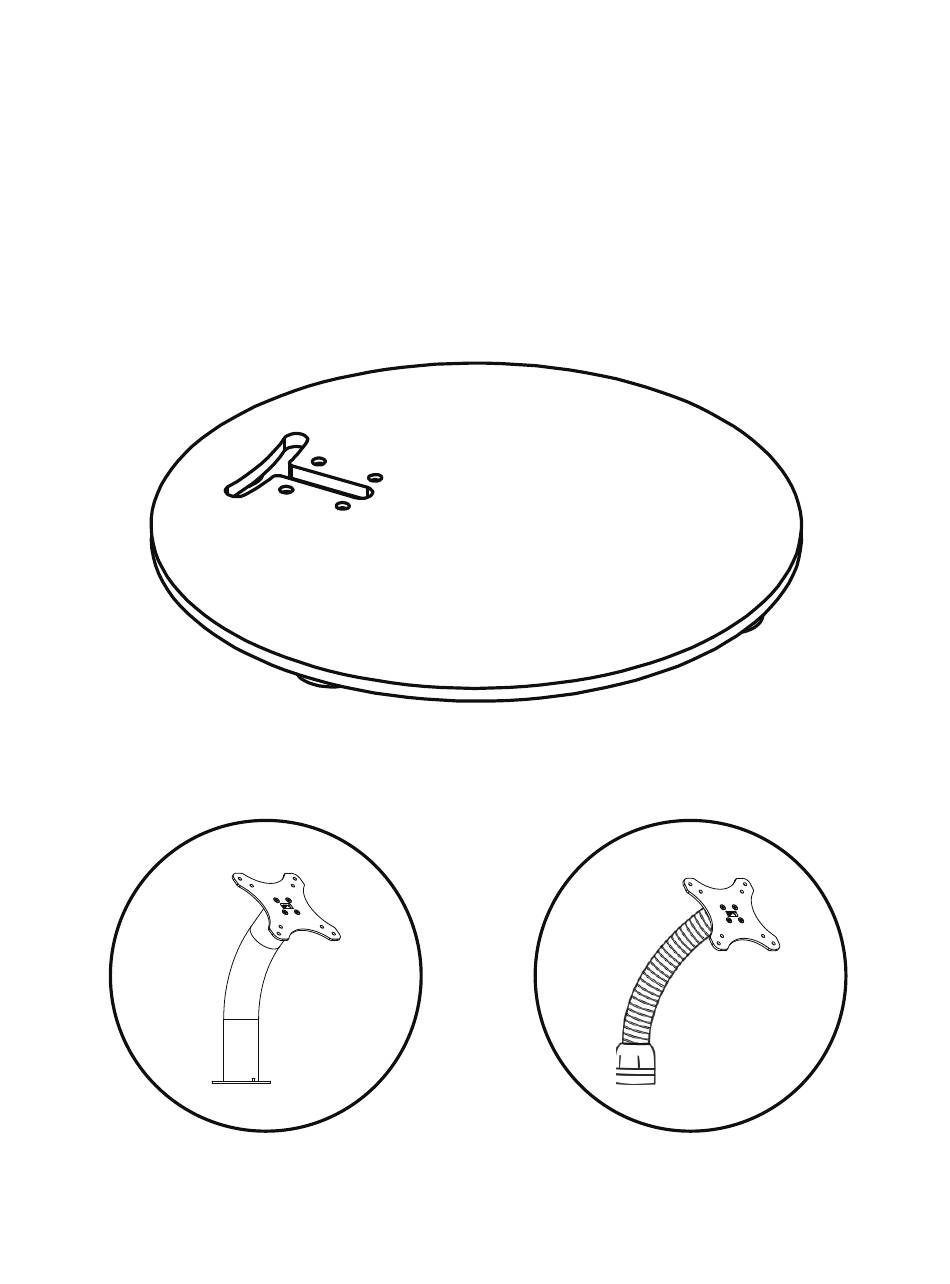

INSTALLATION GUIDE Round Base Piece for VidaMounts VB_VESA_MNT_BP Designed for Fixed & Flexible Surface VESA VidaMounts Compatible with: VB_VESA_MNT_FXS VB_VESA_MNT_FLX Fixed Surface VidaMount Flexible Surface VidaMount... -
Page 2: Installation Instructions
Installation Instructions Round Base Piece for VidaMounts If charging is desired, please prepare the extension cable and/or charging solution for the tablet mount first. Installing the charging solution / extension cable will be easier to do now than it will be to do later. This base piece is only compatible with the Fixed Surface VidaMount &... - Page 3 2 Install Round Base Piece onto the Bottom of the Assembly Install (4) M4x12 Countersink Screws (Turn in the clockwise direction with a Phillips screw driver.) For Fixed Surface Mount For Flexible Surface Mount 3 OPTIONAL : Install Kensington Lock For security, one may wish to use the built-in Kensington security slot ton se with a compatible Kensington lock (Sold separately, not included).
