VidaBox VB VESA MNT FXSL Installation Manual

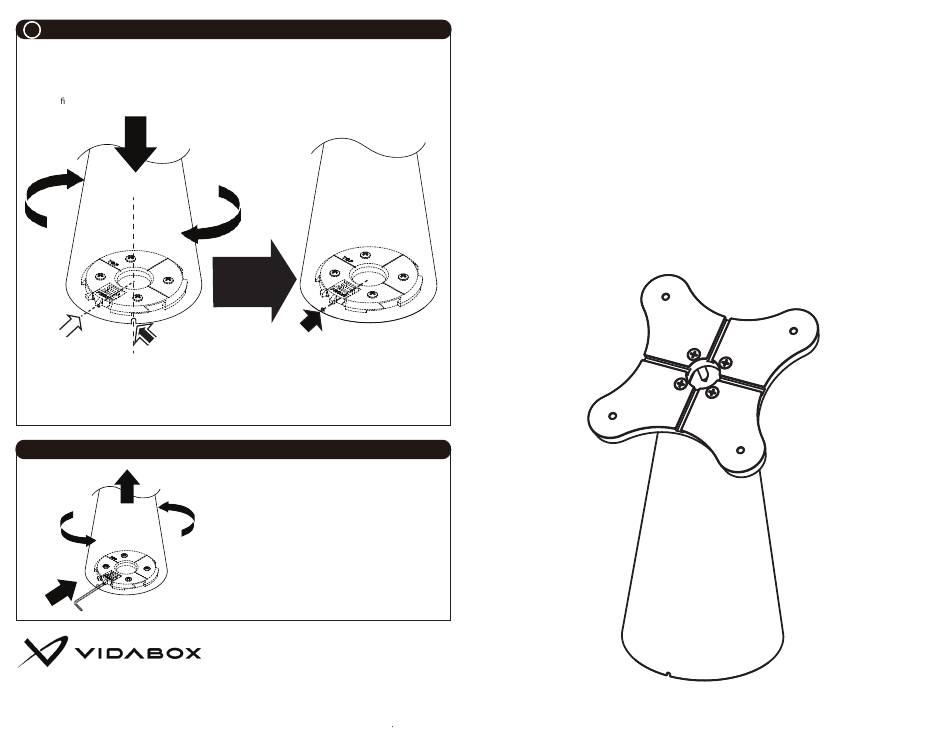

7 Secure FXSL Mount onto Circular Retainer Piece

Once aligned, place the Assembly onto the Circular Retainer [Step A].
Then, start rotating the assembly CLOCKWISE [Step B].
Eventually, you'll hear a SNAP sound.
This con rms the FRONT spring is engaged and locked onto the assembly - we are ALL SET!
A
B
B
Front
Direction
(Center)
Spring Release Hole:
UNLOCKED Position
(Leans right-of-center)
Proper alignment is needed for the design to "lock" in place.

OPTIONAL : To Remove / Disassemble the FXSL Mount

C
ROTATE
COUNTER-
CLOCKWISE
B
B
A
125 Newtown Rd, Ste 100
Plainview, NY 11803 USA
ROTATE
CLOCKWISE
Spring Release Hole:
LOCKED Position
(Hole lines up and coincides
with front direction / center)
If the assembly is still loose, start again from Step 4.
To take apart the assembly:
Step A: Insert and PUSH the L-shaped
Allen Key into the Spring Release Hole.
Step B: ROTATE COUNTER-CLOCKWISE to
loosen the FXSL Mount
Step C: The assembly will loosen -
lift up to remove the FXSL mount!
Toll-free US: (844) 4-KIOSKS
Worldwide: +1 516-499-5050
Australia: +61 1300 44 VIDA
EU/UK: +44 333 444 VIDA
INSTALLATION GUIDE
Fixed Surface Lite VESA Mount
VB_VESA_MNT_FXSL
Ideal for VidaMount VESA Tablet Enclosures
VESA 100x100 Compatible
