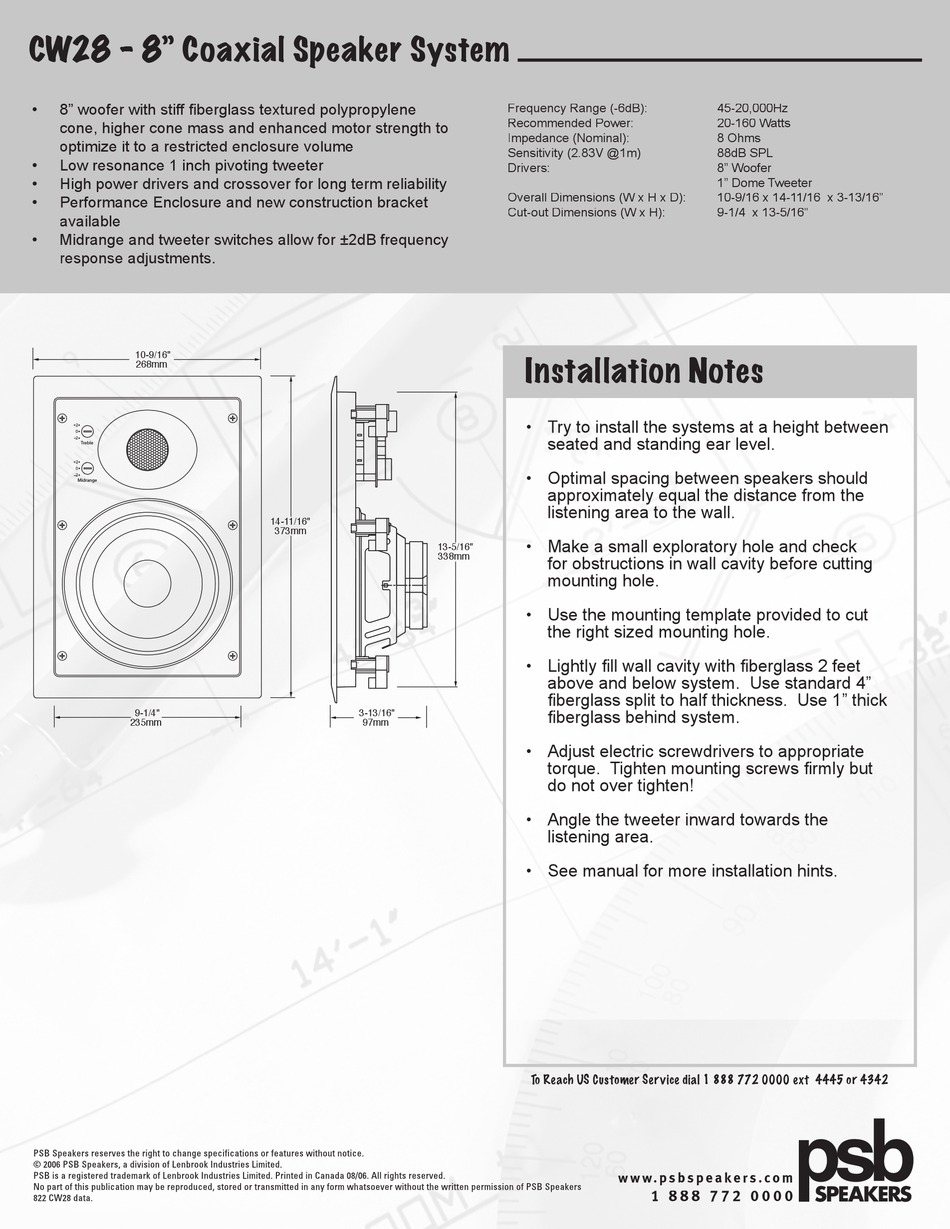

CW28 - 8" Coaxial Speaker System
• 8" woofer with stiff fi berglass textured polypropylene
cone, higher cone mass and enhanced motor strength to
optimize it to a restricted enclosure volume
• Low resonance 1 inch pivoting tweeter
• High power drivers and crossover for long term reliability
• Performance Enclosure and new construction bracket
available
• Midrange and tweeter switches allow for ±2dB frequency
response adjustments.
10-9/16"
268mm
������
��������
9-1/4"
235mm
PSB Speakers reserves the right to change specifications or features without notice.
© 2006 PSB Speakers, a division of Lenbrook Industries Limited.
PSB is a registered trademark of Lenbrook Industries Limited. Printed in Canada 08/06. All rights reserved.
No part of this publication may be reproduced, stored or transmitted in any form whatsoever without the written permission of PSB Speakers
822 CW28 data.
14-11/16"
373mm
13-5/16"
338mm
3-13/16"
97mm
Frequency Range (-6dB):
Recommended Power:
Impedance (Nominal):
Sensitivity (2.83V @1m)
Drivers:
Overall Dimensions (W x H x D):
Cut-out Dimensions (W x H):

Installation Notes

• Try to install the systems at a height between
seated and standing ear level.
• Optimal spacing between speakers should
approximately equal the distance from the
listening area to the wall.
• Make a small exploratory hole and check
for obstructions in wall cavity before cutting
mounting hole.
• Use the mounting template provided to cut
the right sized mounting hole.
• Lightly fi ll wall cavity with fi berglass 2 feet
above and below system. Use standard 4"
fi berglass split to half thickness. Use 1" thick
fi berglass behind system.
• Adjust electric screwdrivers to appropriate
torque. Tighten mounting screws fi rmly but
do not over tighten!
• Angle the tweeter inward towards the
listening area.
• See manual for more installation hints.
To Reach US Customer Service dial 1 888 772 0000 ext 4445 or 4342
w w w. p s b s p e a k e r s . c o m
1 8 8 8 7 7 2 0 0 0 0
45-20,000Hz
20-160 Watts
8 Ohms
88dB SPL
8" Woofer
1" Dome Tweeter
10-9/16 x 14-11/16 x 3-13/16"
9-1/4 x 13-5/16"
