CW26 - 6.5" Coaxial Speaker System
• 6-1/2" woofer with stiff fiberglass textured polypropylene
cone, higher cone mass and enhanced motor strength to
optimize it to a restricted enclosure volume
• Low resonance 1 inch pivoting tweeter
• High power drivers and crossover for long term reliability
• Performance Enclosure and new construction bracket
available
• Midrange and tweeter switches allow for ±2dB frequency
response adjustments.

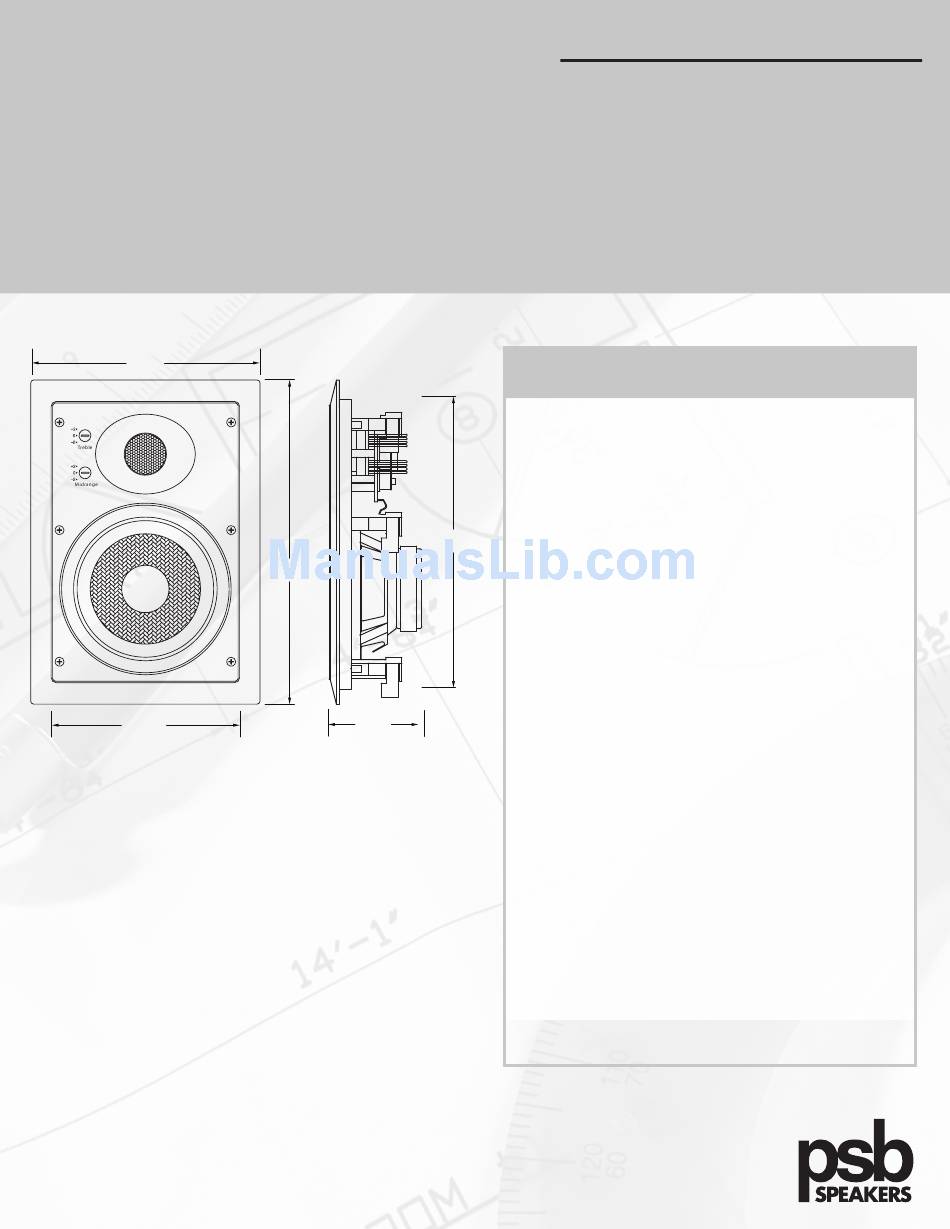

9-1/16"
230mm
7-11/16"
195mm
PSB Speakers reserves the right to change specifications or features without notice.
© 2006 PSB Speakers, a division of Lenbrook Industries Limited.
PSB is a registered trademark of Lenbrook Industries Limited. Printed in Canada 08/06. All rights reserved.
No part of this publication may be reproduced, stored or transmitted in any form whatsoever without the written permission of PSB Speakers
821 CW26 data.
11-3/8"
289mm
12-11/16"
322mm
3-1/16"
78mm
Frequency Range (-6dB):
Recommended Power:
Impedance (Nominal):
Sensitivity (2.83V @1m)
Drivers:
Overall Dimensions (W x H x D):
Cut-out Dimensions (W x H):

Installation Notes

• Try to install the systems at a height between
seated and standing ear level.
• Optimal spacing between speakers should
approximately equal the distance from the
listening area to the wall.
• Make a small exploratory hole and check
for obstructions in wall cavity before cutting
mounting hole.
• Use the mounting template provided to cut
the right sized mounting hole.
• Lightly fill wall cavity with fiberglass 2 feet
above and below system. Use standard 4"
fiberglass split to half thickness. Use 1" thick
fiberglass behind system.
• Adjust electric screwdrivers to appropriate
torque. Tighten mounting screws firmly but
do not over tighten!
• Angle the tweeter inward towards the
listening area.
• See manual for more installation hints.
To Reach US Customer Ser vice dial 1 888 772 0000 ext 4445 or 4342
w w w. p s b s p e a k e r s . c o m
1 8 8 8 7 7 2 0 0 0 0
55-20,000Hz
20-125 Watts
8 Ohms
87dB SPL
6-1/2" Woofer
1" Dome Tweeter
9-1/16 x 12-11/16 x 3-1/16"
7-11/16 x 11 3/8"
