Summary of Contents for Anthogyr Xpert Unit

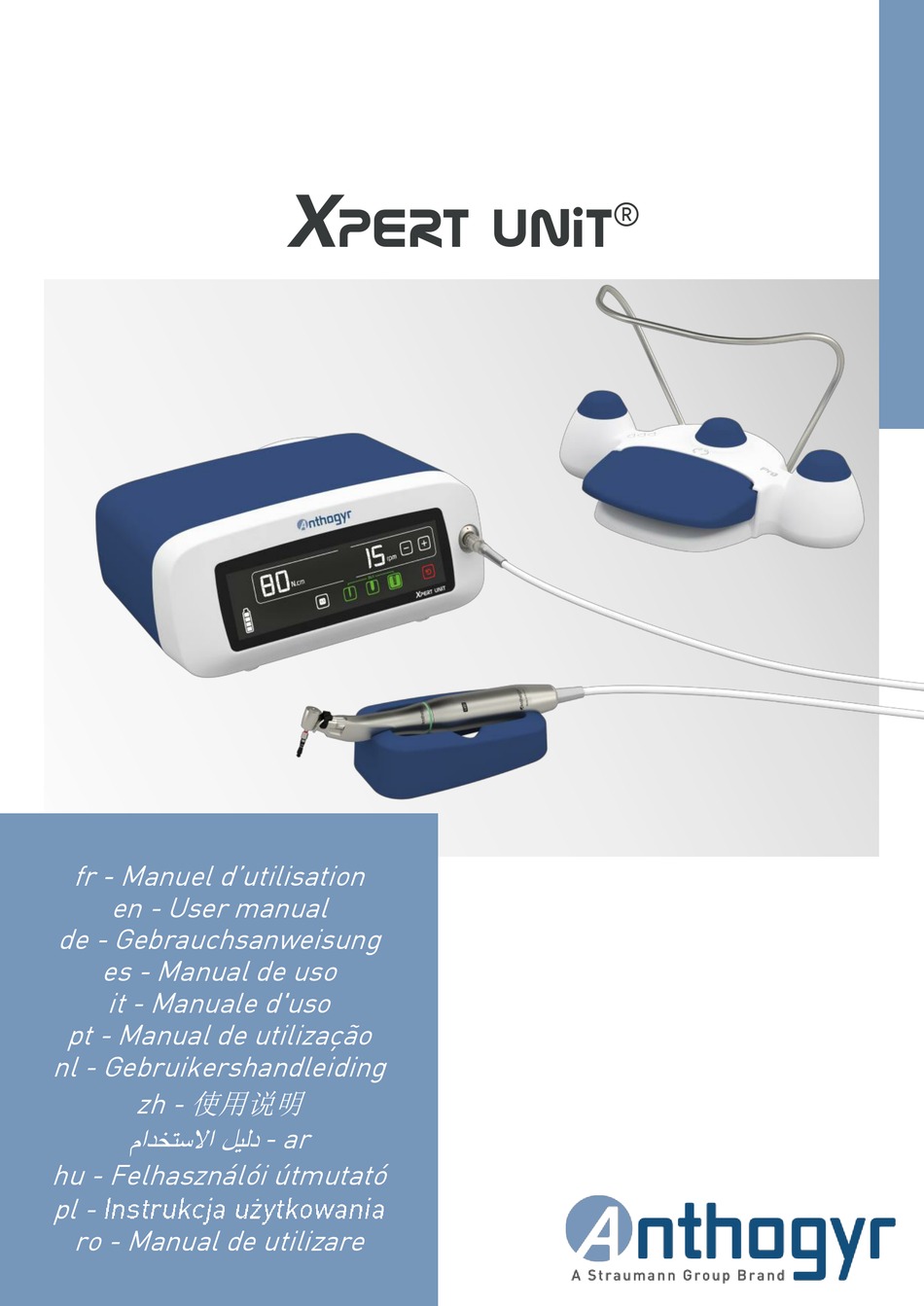

- Page 1 bcdefghij ® fr - Manuel d’utilisation en - User manual de - Gebrauchsanweisung es - Manual de uso it - Manuale d'uso pt - Manual de utilização nl - Gebruikershandleiding zh - 使用说明 دليل ستخدامس - ar hu - Felhasználói útmutató pl - ro - Manual de utilizare...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Implantology motor 1. DESCRIPTION OF SYMBOLS 2. INTRODUCTION 3. AREA OF USE 4. INDICATIONS AND CONTRAINDICATIONS 5. SAFETY 6. DESCRIPTION 7. CONNECTIONS - INSTALLATION 8. INITIALISING THE CONSOLE 9. USE 10. PARAMETER MANAGEMENT 11. CLEANING, DISINFECTING AND STERILISATION 12. -
Page 3: Introduction
(torque and speed) of this product can only be used with the Anthogyr Mont Blanc contra-angle. It is mandatory to use the irrigation lines supplied by Anthogyr. The use of any other irrigation lines can create malfunctioning for which Anthogyr cannot be held responsible in any way. -
Page 4: Safety
5. SAFETY 5.1. RESIDUAL RISKS AND SIDE EFFECTS Surgical motors misuse (error in the selection or tuning of predefined surgical sequence, rotation speed or direction, pre-selection of operating limits) may lead to patient injury. 5.2. WARNING SIGN Warning sign In order to avoid any physical or material damage, this document divides the safety instructions into three levels of danger. Indicates a hazardous situation that may cause material damage or from minor to moderate injuries. - Page 5 ® en- USER GUIDE 5.3.3 - Environment Do not tilt the device. Ensure that the cords do not obstruct the free movement of persons. Do not use the device near ionising radiation. The device must be connected to a nearby wall socket that is easily accessible. The required power cords include a plug that can bear at least 125% of the rated current of the device.
- Page 6 If it is not possible to locate or eliminate the problem with the help of the descriptive document, switch off the device and call the Anthogyr After-Sales Service. Never attempt any repair alone. Anthogyr After-Sales Service - Tel. : +33 (0)4 50 58 50 53 - contact@anthogyr.com...
-
Page 7: Description

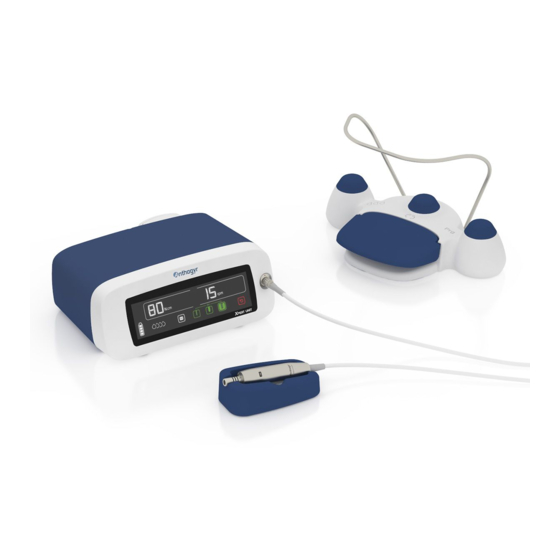

® en- USER GUIDE 6. DESCRIPTION N° Name N° Name Wireless pedal Micromotor Console Bracket Irrigation line Micromotor protective casing Adapter Console dust cover Power cord Clips for irrigation line Micromotor cord Micromotor support Rear Front N° Name Peristaltic pump ON/OFF Button (I/O) Power socket 220V / 110V Touch screen... -
Page 8: Connections - Installation
Rotation speed 100 - 40000 rpm Micromotor Model with light: TYPE 4-short Motor connection Model without light: TYPE 1-short Maximum flow rate at 100% with Anthogyr line 120 ml/min Peristaltic pump Pump pipe Øext Ø7 mm Pump pipe Øint Ø4 mm... - Page 9 ® en- USER GUIDE To disconnect, pull the mobile part of the connection in the direction of the arrow. ✓ Do not try to disconnect the micromotor cable by pulling on the cable! 7.3. CONNECTION / DISCONNECTION OF A CONTRA-ANGLE ON THE MICROMOTOR Engage the contra-angle on the motor nose.
-
Page 10: Initialising The Console
Do not operate the pump, if the irrigation line is blocked or closed by a clamp. Always place the fluid to be pumped above the pump, in order to ensure optimal operation of the latter. Always keep the pump head rollers and all moving parts clean and free of contamination and debris. Do not open the guard when the pump is rotating. -
Page 11: Use
® en- USER GUIDE 8.2.3 - How to pair the pedal with the console 1 - Press on the pedal lever. 2 - Press the three green buttons on the screen at the same time. 3 - The symbol flashes until pairing is complete (time to achieve pairing = about 30 sec) 4 - Press the two end buttons on the pedal. - Page 12 9.4. DISPLAYING THE LAST TORQUE REACHED The XPERT UNIT ® motor allows you to validate the tightening torques to be saved. These torques will be exported with the XPERT UNIT ® mobile app and used on the web portal. Displaying and saving the tightening torques...
- Page 13 ® en- USER GUIDE When the motor is rotating, the torque displayed on the screen is the instantaneous torque (Image B). When the motor stops, the last torque remains displayed for 30 seconds, before the display returns to the maximum torque programmed (Image A).
- Page 14 9.5. USE OF THE PEDAL Description of pressing different buttons and lever Pressing lever (D) Variation in the rotation speed of the micromotor Pushing lever (D) Illumination of the light for 3 seconds Short pressing on the left button (A) Irrigation ON / OFF (the flow rate set on the screen is preserved) Startup of the pump at the maximum flow rate without the micromotor Long pressing on the left button (A)
-
Page 15: Parameter Management
® en- USER GUIDE 9.9 MEDICAL DEVICE LIFECYCLE If used in a proper manner, the micromotor and its cable have a lifecycle corresponding to 250 cleaning and sterilisation cycles; the pedal has a lifecycle corresponding to 5 years of use. However, these indications are not a warranty because wear may appear prematurely, depending on how the device is maintained (see section 11. -
Page 16: Conditions Of Use And Storage
Anthogyr and other instructions of manufacturers. → The transport expenses for return of goods for repair at Anthogyr are to be borne by the customer, even if the repair is done under warranty. →... -
Page 17: Manufacturer's Responsibilities
In the event of abnormal operation (flickering screen, noisy pump motor, vibrating micromotor), immediately stop using the device and call the Anthogyr After-Sales Service. If it is not possible to locate or solve a problem with the help of this descriptive document, or if the malfunction signals still remain active, switch off the device and call the Anthogyr After-Sales Service. - Page 18 If it is not possible to locate or solve the problem with the help of different descriptive documents, switch off the device and call the Anthogyr After-Sales Service. Depending on the error code, it is also possible to use the mobile application to send information to the Anthogyr After-Sales Service. 16.2. MALFUNCTION...
-
Page 19: Troubleshooting Operations By The User
This product must not be used near or on another device. If this cannot be avoided, it is necessary to check prior to use its proper operation prior to use under the conditions of use. → The use of accessories other than those specified or sold by Anthogyr as replacement parts, can result in increased radiation or decreased immunity of this product. - Page 20 The XPERT UNIT ® motor is intended to be used in the environment specified below. It is advisable for customer or user of the XPERT UNIT ® motor to ensure that it is used properly in such an environment. Radiation test...
-
Page 21: Reference
FM broadcasting and TV broadcasting, cannot be provided theoretically with accuracy. To evaluate the electromagnetic environment due to fixed RF transmitters, it is advisable to consider an electromagnetic investigation on site. If intensity of the field, measured at the location where the XPERT UNIT ®... - Page 22 Anthogyr 2 237, Avenue André Lasquin 74700 Sallanches - France Tél. +33 (0)4 50 58 02 37 www.anthogyr.com Photos credits : Anthogyr - All rights reserved - Not contractual photos...
