  • Page 1 AIJGO-61 RESISTANCE METER INSTRUCTION MANUAL www.dlb.hu sales@destsa.hu +36 27 502 555...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 The product and accessories supplied with it .

  • Page 3: Overview

    Overview The AIJGO-61 resistance meter can be used to measure the resistance of different materials, work surfaces and floors. The measured result can be viewed on an LCD display after the measurement. CE declaration We declare that the AIJGO-61 product complies with the requirements of IEC 61340-5-1, ANSI/ESD S20.20 and Directive 2001/95/EC (General product safety).

  • Page 4: About Construction And Use

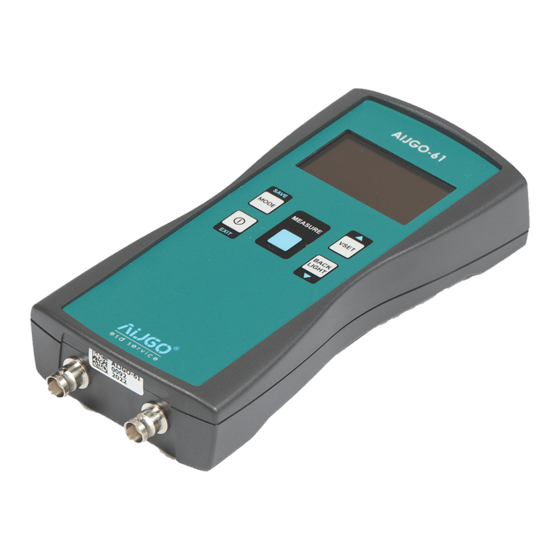

    About construction and use Parts of the product LCD display Mode button On/Off button Measure button VSET button Backlight button Mini USB socket Electrode connectors Functions of the buttons On/Off button (3) With long keypress (3 sec.) you can turn the device on and off.

  • Page 5: User Instructions And Information

    Connect the BNC plug ends of the wires to the device and the two red measuring wires to a ring electrode. (Ring electrode is not provided in the AIJGO-61 product package.) The use of the two black shielding wires is not necessary for this measurement method.

  • Page 6: Turning On

    Relative Humidity Measurement The AIJGO-61 is suitable for measuring a wide resistance range, between 2 Ω and 1 TΩ. This also enables the measurement of equipment grounding resistance and the resistance of ESD protective worksurfaces to ground. Thus there is no need to use other resistance meter during ESD qualification or compliance verification measurements.

  • Page 7: Management Of Measurement Results On Computer

    Management of measurement results on computer An AIJGO-61 product can be connected to a computer with a USB-A to mini USB-B cable. To manage the measurement results on a computer, the driver program supplied with the device must be installed, which assigns a virtual serial port to the resistance meter.
  • Page 8 Two commands can be used in the program to manage the stored data of an AIJGO-61 product, these are “LIST” and “DELETE”. The commands can be sent by pressing the “enter” key after typing them. The following is a picture of the terminal program after the user has retrieved a stored list with the “LIST”...

  • Page 9: Maintenance

    Maintenance Replacement of the batteries If the batteries are discharged, a screenshot similar to the following will be displayed: 31.6 kΩ LOW BATTERY 24.5°C 42.1%RH In this case the measuring instrument is automatically set to 10 V measuring voltage. You can remove the cover plate by unscrewing two screws on the back of the meter to change the batteries.
