dlb AIJGO-60 Instruction Manual

Walking tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AIJGO-60
WALKING TESTER
INSTRUCTION
MANUAL
www.dlb.hu
sales@destsa.hu
+36 27 502 555

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIJGO-60 and is the answer not in the manual?

Questions and answers

Related Manuals for dlb AIJGO-60

Summary of Contents for dlb AIJGO-60

  • Page 1 AIJGO-60 WALKING TESTER INSTRUCTION MANUAL www.dlb.hu sales@destsa.hu +36 27 502 555...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 The product and its accessories .

  • Page 3: Overview

    The device displays the measured values on an LCD display in numerical or graphical mode. CE declaration We declare that the AIJGO-60 product complies with the requirements of IEC 61340- 5-1, ANSI/ESD S20.20 and Directive 2001/95/EC (General product safety). THE PRODUCT AND ITS ACCESSORIES ӹ...

  • Page 4: About Construction And Use

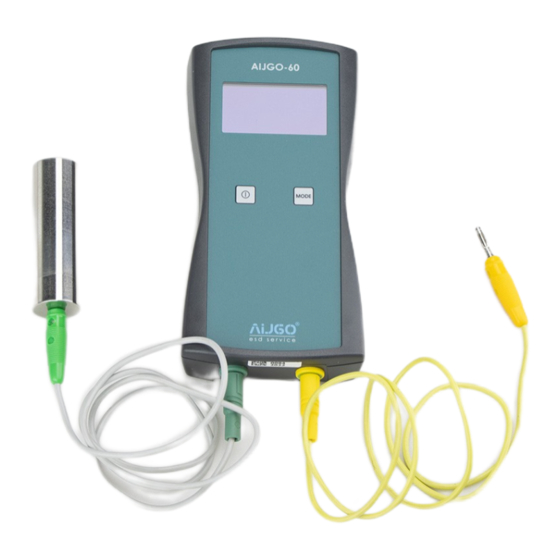

    ABOUT CONSTRUCTION AND USE Parts of the product LCD display On/Off button Mode button Mini USB socket Hand electrode jack Grounding cable jack Button functions You can turn on/off the device with long On/Off button (2) keypress (3 sec.). With short keypress you can delete the MIN/ MAX voltage values during operation.

  • Page 5: Operation Instructions And Informations

    Switch on Turn on the device with the On/Off button. After power on it shows a text similar to the following, with information about the device: AIJGO-60 WALKING TESTER S/N: 1234 Ver: v1.02 You can see it for 10 seconds, afterwards the device changes to the numerical display of the charge measurement values.

  • Page 6: Walking Test

    WALKING TEST Walk in ESD footwear on ESD floor and keep the hand electrode in hand: When measuring temperature and humidity, make sure that you do not cover the sensor on the bottom of the device with your hands or other objects, and do not place the device on a cooled or heated surface, as this may affect the measurement results.

  • Page 7: Storing Measurement Results

    MANAGEMENT OF MEASUREMENT RESULTS ON COMPUTER An AIJGO-60 can be connected to a computer with a USB-A – mini USB-B cable. For the management of measurement results on a computer, you need to install the driver program supplied on pendrive with the device, which assigns a virtual serial port to the tester.
  • Page 8 Two commands can be used in the program to manage the stored data of an AIJGO-60 product: „LIST” and „DELETE”. The commands can be sent by pressing “enter” after typing them. The following is a picture of the terminal program after a user has retrieved the stored list with the “LIST”...

  • Page 9: Maintenance

    The listed data can be selected in the terminal program window and copied to somewhere else if necessary. Maintenance Replacement of batteries By unscrewing two screws on the back of the device, you can remove the cover plate and then replace the batteries. Be sure to place them in the correct direction to avoid, also to avoid possible circuit damage.
  • Page 10 D és Tsa . Bt . 2600 Vác, Dr. Csányi László Krt. 83. Hungary Tel . / Fax: +36 27 502 555 +36 27 200 835 E-mail: sales@destsa.hu Web: www.destsa.hu www.dlb.hu...
