Summary of Contents for Insta360 Flow

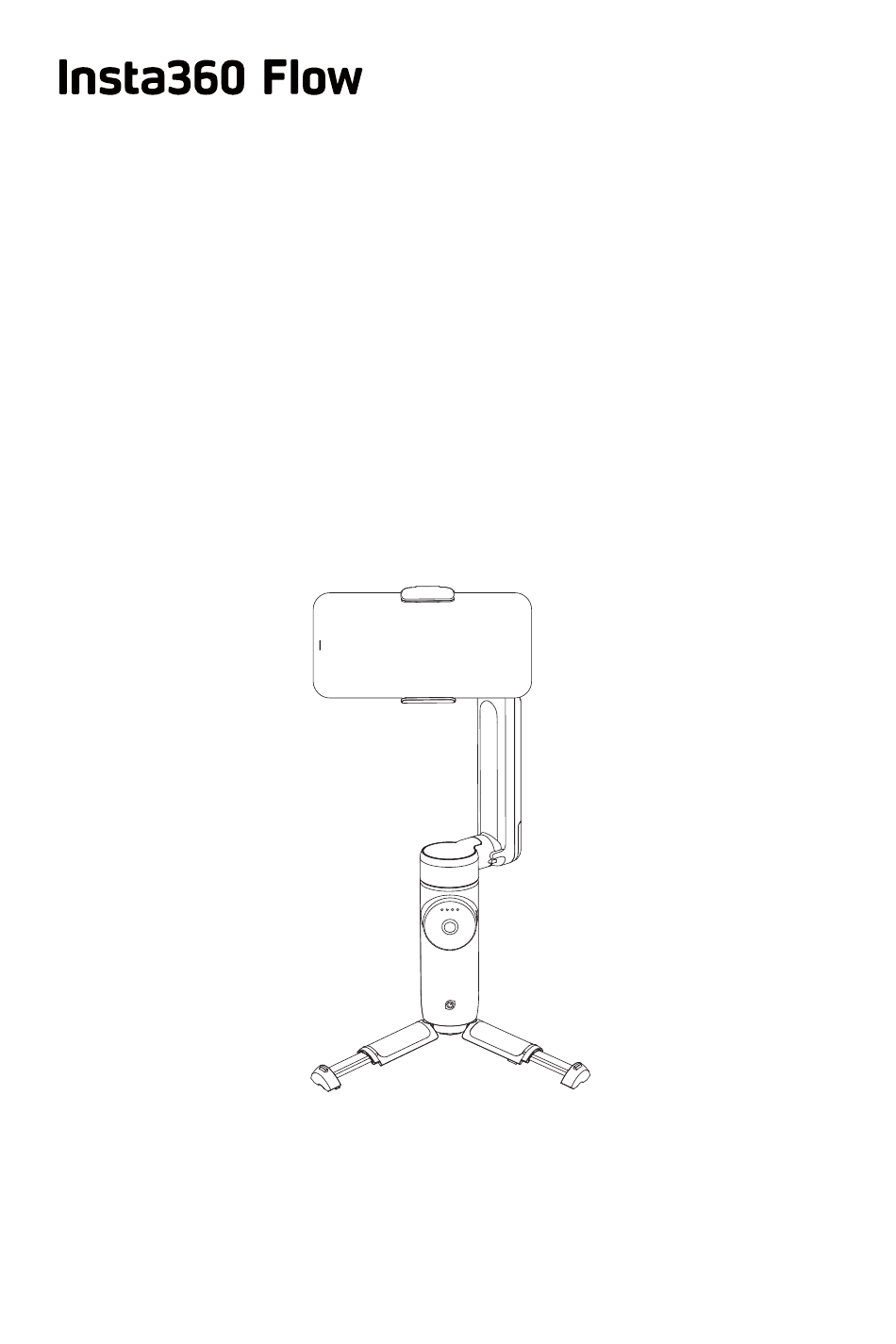

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    How to Use �������������������������������������������������������������������������������4 Buttons and Functions �������������������������������������������������������������������������������� 4 Grip Positions ���������������������������������������������������������������������������������������������� 9 Shooting with Flow ������������������������������������������������������������������������������������ 9 Manual Rotation ���������������������������������������������������������������������������������������� 11 Connect with the Insta360 App ����������������������������������������������� 12 Download �������������������������������������������������������������������������������������������������� 12 Connect ����������������������������������������������������������������������������������������������������� 12 Shooting Page ������������������������������������������������������������������������������������������� 13 Specs �������������������������������������������������������������������������������������� 17...
  • Page 3: Overview

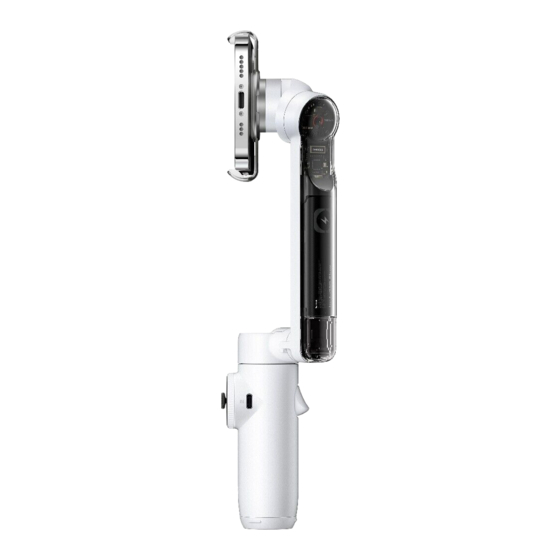

    Overview Insta360 Flow is an AI tracking smartphone stabilizer. Attach your phone via the magnetic mount and start shooting in seconds. Advanced auto tracking keeps subjects in frame, while the 3-axis stabilization delivers ultra-smooth shots. A built-in selfie stick and tripod allow for endless creative possibilities on-the-go.
  • Page 4: Before You Start

    Before You Start Charging To charge Flow, connect the charge cable to the Power Input Port (Type-C). When Flow is fully charged, all the indicator lights will turn on. Note: Please use a 5V power adapter. Assembly 1. Stretch the magnetic phone clamp to fit around your phone. Make sure the clamp is positioned in the middle of the phone.
  • Page 5: Unfold And Fold

    • Attach the phone to Flow via the magnetic phone clamp before unfolding. • Once Flow is turned on, it will detect whether a phone is connected within 30 seconds. If no phone is detected, it will enter standby mode (same if phone is removed while using Flow).
  • Page 6: How To Use

    When Flow is powered off: • Long press: Power on (won't work if Flow is folded). • Press once: Check battery level OR if a mobile device is connected to Flow via Type-C cable it will start charging. When Flow is powered on: •...
  • Page 7 Touch Panel There are two ways to switch Flow mode and shooting mode on the Touch Panel. You can choose via "Mode Change Method" in Flow's Settings on the shooting page of the app. Option A Swipe: Swipe a semi-circle clockwise or counterclockwise to switch Flow modes.
  • Page 8 With app open on the home page: • Single press: Enter shooting interface. Power Output Port (Type-C) Use Flow as a power bank. Connect via charge cable to a smartphone or other device to charge. 1/4'' Mounting Point Connect to other accessories, such as a tripod.
  • Page 9 Battery Level / Gimbal Mode Indicators • Shows Flow's current battery level or selected Flow mode. • Flow modes: AUTO = Auto, F = Follow, PF = Pan Follow, FPV = FPV LED Indicator status LED on. LED off. LED blinking.
  • Page 10 • To retract the tripod, bring the legs together, then carefully push them in with your palm to collapse. • For increased stability in a wider range of scenarios and conditions, you can also connect Flow to an external tripod via the 1/4" Mounting Point.
  • Page 11: Grip Positions

    There are five regular Flow modes. Your smartphone can be positioned horizontally or vertically in all modes. To get started, attach the phone to Flow via the magnetic phone clamp. Hold the Pan Arm while you unfold and grip the handle. Next, choose your Flow mode: •Auto mode (AUTO): Beginner-friendly mode that automatically adjusts tilt &...
  • Page 12 Underslung Grip: Extend the tripod legs for an easier grip, extend the selfie stick, and position the phone low to the ground. Recommended for low-angle shots. Side Grip: Extend the tripod and hold Flow so it's parallel to the ground. Recommended for sliding shots and low-angle shots.
  • Page 13: Manual Rotation

    Manual Rotation Manually turn the phone to the required orientation. The phone will automatically rotate the full 90° when you turn it more than 30°.
  • Page 14: Connect With The Insta360 App

    Flow to connect. The default name is "Flow ******" where ****** is the last six digits of the serial number on the box your Flow came in. Follow the on-screen instructions to complete the connection.
  • Page 15: Shooting Page

    Shooting Page 1. Home : Return to the home page. 2. Shot Genie : Provides shooting tutorials and ideas according to the situation or environment. There are three ways to access Shot Genie's tips: • Tap "Shot Genie Library" to browse all options. •...
  • Page 16 Briefly hold this position to trigger the function. Raise your palm again to stop shooting if you chose a video with tracking. Note: Gesture Control can be used up to 2 meters away from Flow. The feature increases the phone's power usage and may cause it to heat up.
  • Page 17 Adjust Horizontal Axis: Another option to fix incorrect alignment. Unfold the tripod and place Flow on a flat surface. Attach your phone, then start the adjustment process. The axis can be tuned in units of 0.1° and the maximum adjustable angle is 10°.
  • Page 18 Follow the on-screen instructions for correct use. Hoop Mode: Set Flow down to record a half-court basketball game and the AI recognizes your best baskets and saves the highlight as an individual clip for easy editing.
  • Page 19: Specs

    Specs Gimbal: Approx. 369g (13oz) Weight Magnetic Phone Clamp: Approx. 32g (1.1oz) Dimensions (WxHxD) Folded: 79.6x162.1x36mm (3.1x6.4x1.4in) * Not incl. phone clamp. Built-in Unfolded: 73.6x269.4x69.9mm (2.9x10.6x2.8in) tripod unextended. Built-In Selfie Stick Length 215mm (8.5in) Extended Length: 80mm (3.1in) Built-in Tripod Extended Diameter: 187.6mm (7.4in) Weight: 130 to 300g (4.6 to 10.6oz) Compatible Smartphones...
  • Page 20 Arashi Vision Inc. ADD: 11th Floor, Building 2, Jinlitong Financial Center, Bao'an District, Shenzhen, Guangdong, China WEB: www.insta360.com TEL: 400-833-4360 +1 800 6920 360 EMAIL: service@insta360.com V1.0...
