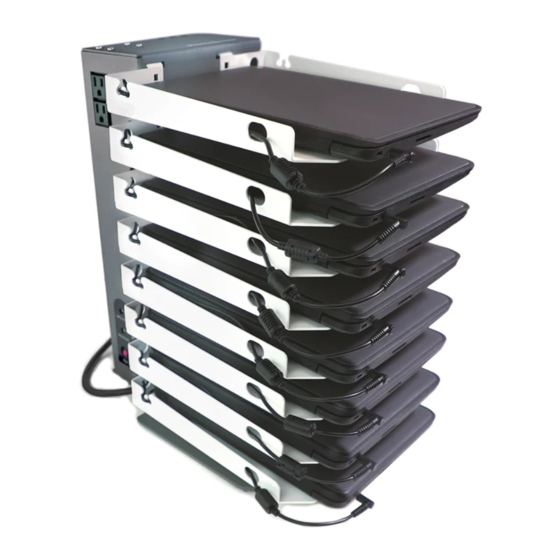

- Page 1 DESKTOP8 and DESKTOP8 OWNER’S MANUAL REV B DESKTOP8 DESKTOP8...
-
Page 2: Tech Specs
DESKTOP8 Tech Specs: 10 Outlet Power Strip 120V, 15A Circuit Breaker For Standard 110V Outlets Accommodates the power needs of any device, even the most robust laptops, with a fast charge of 2-3 hours. Includes 2 extra outside of compartment outlets. DESKTOP8 USB Tech Specs: Each USB port has a... - Page 3 Failure to read these warnings or to follow the instructions below could result in personal injury or damage to your product that could void its warranty. • DO NOT PLUG POWERGISTICS TOWERS INTO OTHER TOWERS. MUST BE PLUGGED DIRECTLY INTO THE WALL OUTLET.
- Page 4 DESKTOP8 Tech Specs: 10 Outlet Power Strip 120V, 15A Circuit Breaker For Standard 110V Outlets Install kit includes: • Zip ties • Shelf stickers for shelf identification STEP 1 Remove the rear cover.
-
Page 5: Cable Management
DESKTOP8 Cable management STEP 2 Wrap standard power brick using zip tie. STEP 3 Insert device on shelf. 201-389-9940 | www.PowerGistics.com... - Page 6 DESKTOP8 Cable management STEP 4 Insert cable end into back compartment and through rear hole. STEP 5 Insert cable end into back hole of shelf running cable along the inside of shelf.
- Page 7 DESKTOP8 Cable management STEP 6 Bring cable end to the front hole of the shelf. STEP 7 Plug cable into device. 201-389-9940 | www.PowerGistics.com...
- Page 8 DESKTOP8 Cable management STEP 8 Secure cable using pinch point on side of shelf.
- Page 9 DESKTOP8 Cable management STEP 9 Plug in wrapped standard power brick. STEP 10 Insert wrapped standard power brick into the back compartment. 201-389-9940 | www.PowerGistics.com...
- Page 10 DESKTOP8 Cable management STEP 11 Continue cabling up the rest of the shelves. STEP 12 Replace rear cover and plug into wall outlet.
- Page 11 2.1 amps for sleep and charge. Ideal for Chromebooks, tablets and other devices with a maximum power supply of 45W or less. Install kit includes: • Zip ties • Shelf stickers for shelf identification STEP 1 Remove the rear cover. 201-389-9940 | www.PowerGistics.com...
- Page 12 DESKTOP8 USB Cable management STEP 2 Gently bend up the tabs for wrapping USB cables.
- Page 13 STEP 4 Feed USB cable through front hole on shelf. STEP 3 Plug in USB cable to front of device. STEP 5 Feed USB cable through back hole on shelf and top hole of rear cable compartment. 201-389-9940 | www.PowerGistics.com...
- Page 14 DESKTOP8 USB Cable management STEP 6 Wrap USB cable around tabs and plug into power strip. Note: You may need to wrap more than 1 USB cable around a single tab. STEP 7 Secure USB cable using pinch point on side of shelf.
- Page 15 DESKTOP8 USB Cable management STEP 8 Continue feeding cords through for each shelf until complete. STEP 9 Plug into wall outlet and turn on using USB power strip switch. Replace rear cover. 201-389-9940 | www.PowerGistics.com...
- Page 16 Check out our YouTube Desktop8 cable install videos for tips and tricks at https://powergistics.com/desktop8-series-install-videos/ 100 Continental Drive, Columbus, Wisconsin 53925 USA (844) 205-1217 | www.PowerGistics.com PWRG 1156 DESKTOP8/DESKTOP8USB OWNER MANUAL REV B 2023...
