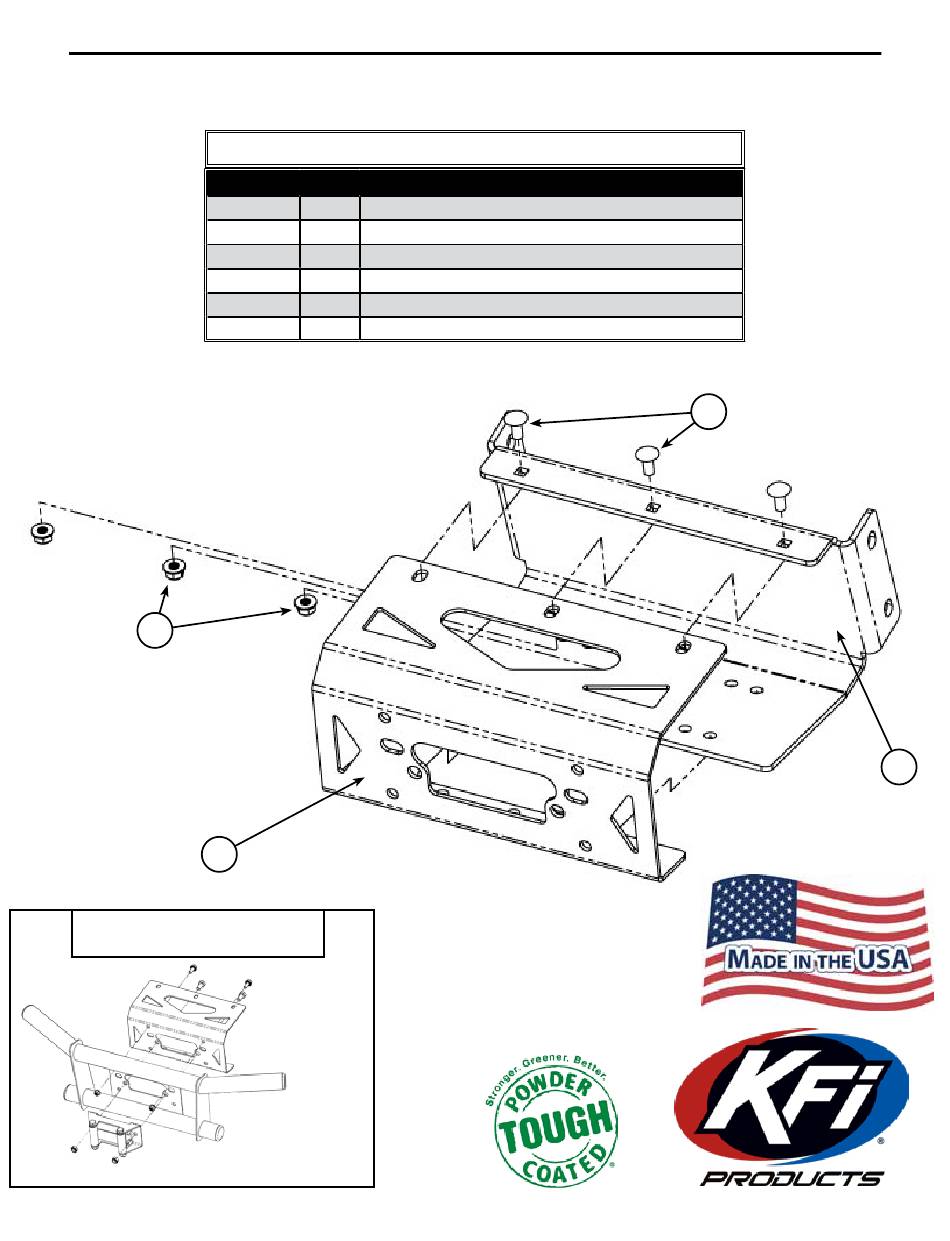

YAMAhA YXZ WInCh MOUnT
3.2
Bumper 101010 Compatible
*Sold Seperately*
©2023 Copyright Kappers Fabricating, Inc. All rights reserved
Winch Mount
Kit Components:
Item #
Qty.
1
1
Winch Mount
2
1
Fairlead Bracket
3
1
hardware Kit hK-408
3.1
6
5/16-18 X .75 Carriage Bolt Short neck GR5 Magni 525
3.2
6
5/16-18 hex nut Flange nylock GR5
3.3
4
M8-1.25 X 25 hex Bolt Flange GR8.8
*nOT ALL hARDWARE IS USED*
2
PART #101320
Description
3.1
1
02/22/23
Advertisement
Table of Contents
Related Manuals for KFI 101320
Summary of Contents for KFI 101320
- Page 1 YAMAhA YXZ WInCh MOUnT Winch Mount PART #101320 Kit Components: Item # Qty. Description Winch Mount Fairlead Bracket hardware Kit hK-408 5/16-18 X .75 Carriage Bolt Short neck GR5 Magni 525 5/16-18 hex nut Flange nylock GR5 M8-1.25 X 25 hex Bolt Flange GR8.8...
- Page 2 InSTALLATIOn InSTRUCTIOnS Note: Make sure all hardware needed to complete this mount is in the Figure 1 package. Thoroughly read through and understand the instructions before installing. Locate and remove the 4 bolts (A) that attach the bumper to the machine, as shown in Figure 1.
