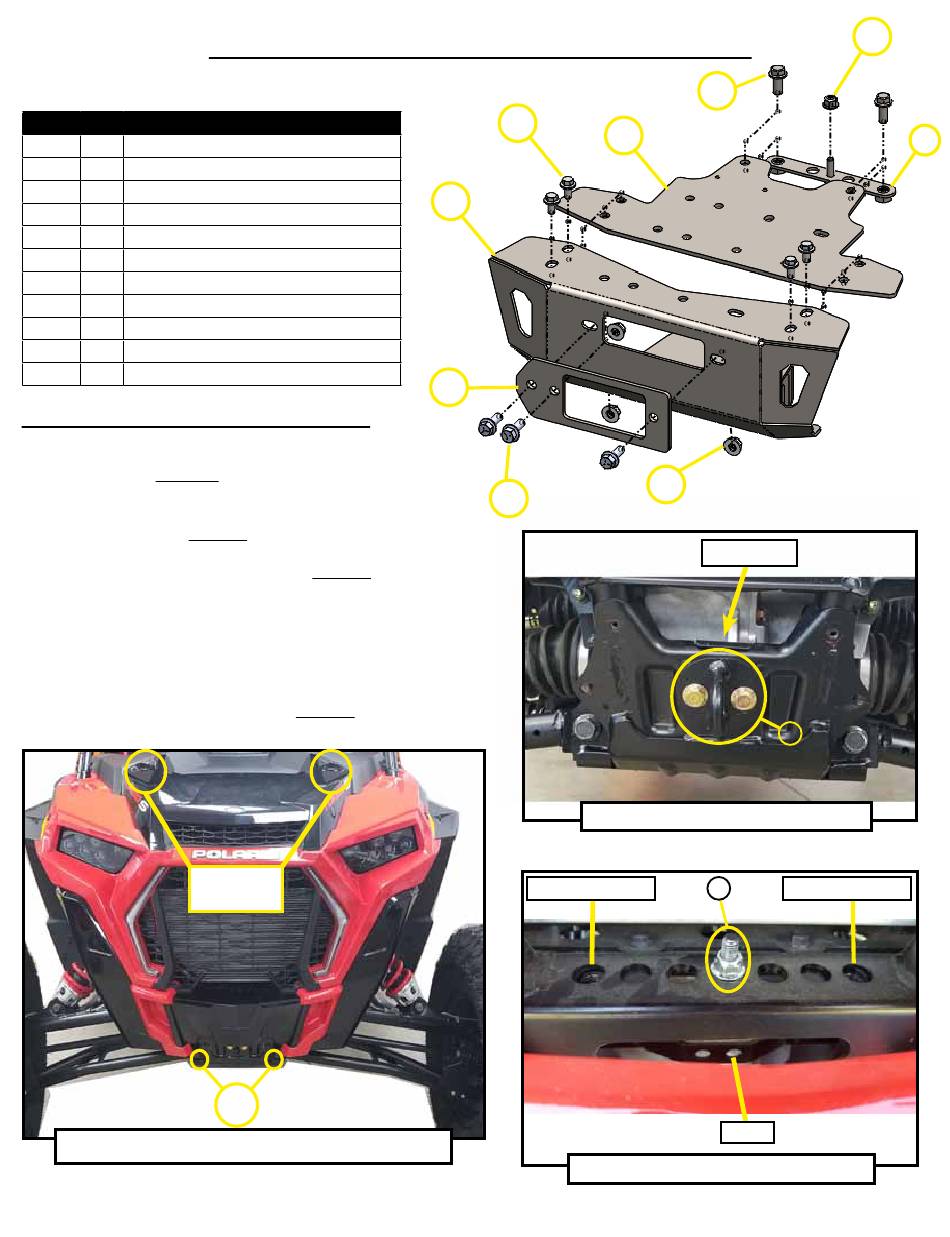

KFI 101690 Quick Start Manual

Kit Components:
Item # Qty. Description
1 1 Winch Mount
2 1 Support Bracket
3 1 Fairlead Adapter
4 1
Bolt Plate
5 1
HK-031 (UTV Mini Rocker Kit)
6 1 HK-190 (Winch Mount Hardware Kit)
6.1 3 3/8"-16 x 1.00 Hex Bolt Flange
6.2 3 3/8"-16 Hex Nut Flange Nylock
6.3 2
M10-1.50 x 25 Hex Bolt Flange
6.4 4
M8-1.25 x 16 Hex Bolt Flange
6.5 1 5/16"-18 Hex Nut Flange Nylock
INSTALLATION INSTRUCTIONS:
1. Remove the hood using the two hood latches.
Shown in Figure 2.
2. Detach front fascia by removing the 2 Torx Bolts
(A). Shown in Figure 2. Discard fascia.
3. Remove tow hook (B) shown in Figure 3 save
hardware to reinstall later and discard the tow hook.
NOTE: Tape the backer plate to keep it from falling
down.
4. Place bolt plate (4) through slot in frame and use
one 5/16" nut (6.5) to secure. Make sure threaded
nuts are centered in the holes.
"Figure 2" Hood & Front Fascia Removal
©2019 Copyright Kappers Fabricating, Inc. All rights reserved
POLARIS RZR TURBO S
Winch Mount
Figure 4
HOOD
LATCH
A
PART # 101690
6.4
2
1
3
6.1
"Figure 3" Tow Hook Removal
Threaded Nuts
"Figure 4" Bolt Plate Installation
6.3
"Figure 1"
6.2
Backer Plate
B
Threaded Nuts
6.5
Slot
6.5
4
1
