KFI HK-150 Quick Start Manual

YAMAHA WOLVERINE
Plow Mount

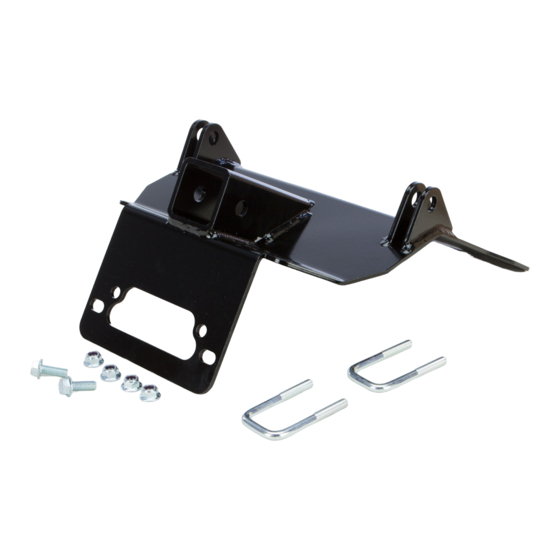

Kit Components:

Qty. Part Description
1................. Plow Mount Plate
2................. 3/8"-16 Square U-Bolt
2................. 3/8"-16 x 1" Flanged Bolt
4................. 3/8"-16 Nylock Flanged Nut

INSTALLATION INSTRUCTIONS:

1. Install your winch mount following the
instructions provided with your mount.
Note: It is easier to install the plow mount if
installed before the winch and roller fairlead.
2. Install the plow mount plate using the 1" flanged
bolts, placing bolts through holes (A) in the winch
mount plate. See Figure 2 and 3.
3. Using the plow mount as a template mark and drill
holes on the plastic skid plate as shown in Figure
4.
4. Remove plow mount plate and drill holes.
5. Repeat step 2 and reinstall the plow mount plate.
Mark Drill Holes

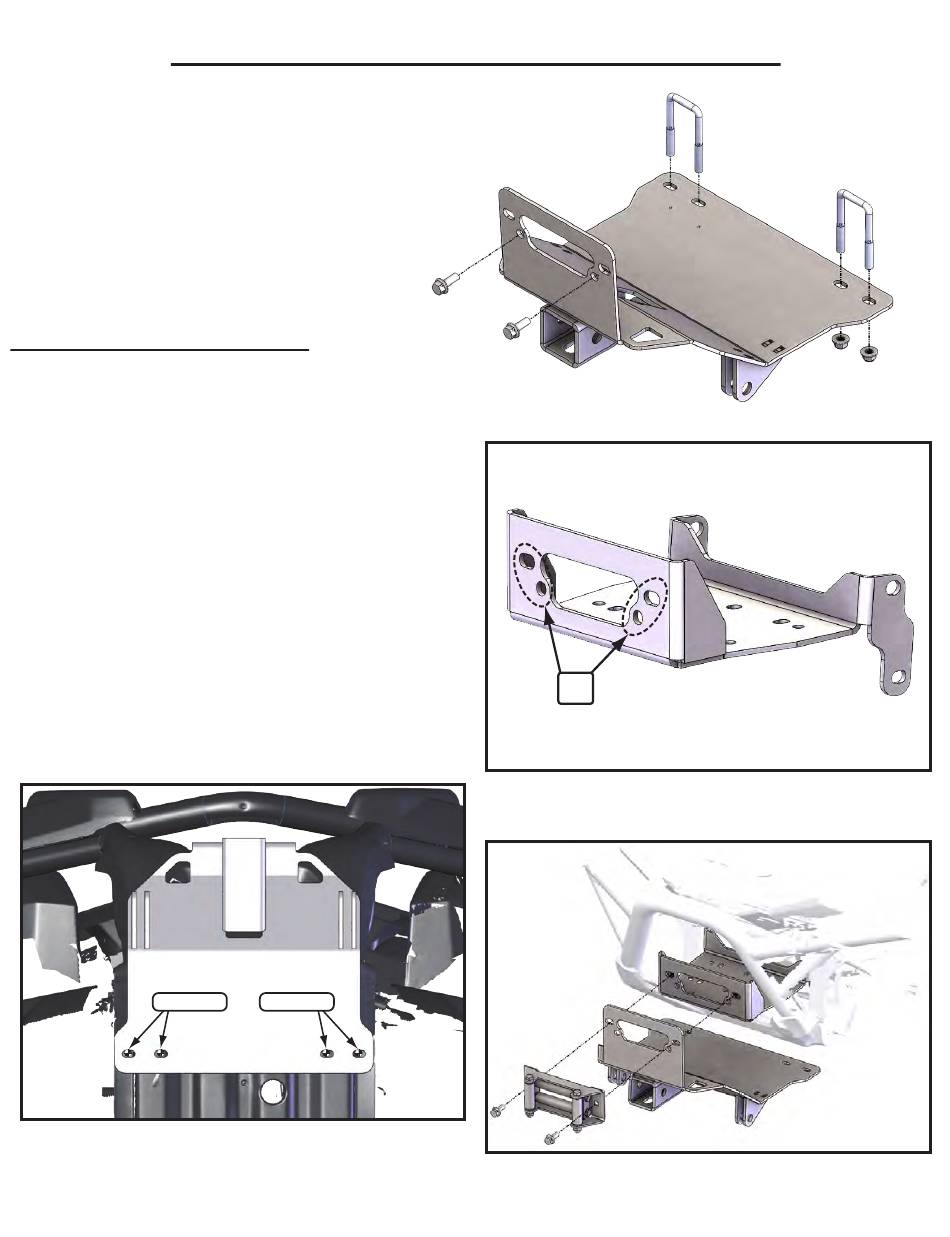

Figure 4: Mount Plate Install

©2013 Copyright Kappers Fabricating, Inc. All rights reserved
PART # 105695
Hardware Kit: HK-150
Mark Drill Holes

Figure 1

A

Figure 2: Plow Mount Bolt Locations.

Figure 3: Install to winch mount.

This mount requires
KFI winch mount
#101515
